A series of partially depleted silicon surface barrier radiation detectors

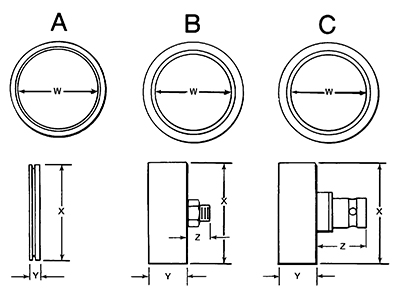

Mount must be specified when ordering.

A  This is a "ring mount"; i.e. the silicon die is on its ring and there are no output connectors. This less frequently used layout is available on special request.

B  backMicrodotconnector.

C  backBNCconnector.

Dimensions are in millimeters.

for1500or2000 mmdeep detector, inYincrease in size1.5 mm。

Detector size (mm2)	W (nominal)	Atype		Btype afterMicrodot			Ctype afterBNC
		X	Y	X	Y	Z	X	Y	Z
025	5.6	15.2	3.7	16.7	12.3	7.1	16.7	12.3	15.9
050	8.0	15.2	3.7	16.7	12.3	7.1	16.7	12.3	15.9
100	11.3	22.0	3.7	23.6	12.3	7.1	23.6	12.3	15.9
150	13.8	22.0	3.7	23.6	12.3	7.1	23.6	12.3	15.9
300	19.5	27.1	3.7	28.6	12.3	7.1	28.6	12.3	15.9
450	23.9	30.5	3.7	32.0	12.3	7.1	32.0	12.3	15.9
Tolerance	±0.5	±0.3	±0.3	±0.3	±0.3	±0.3	±0.3	±0.3	±0.3

Mounting base must be specified when ordering

Unless otherwise stated, providedBMount.

**The first three digits of the model number indicate the standardORTECelectronic equipment and0.5-μsWhen shaping the time constant,²⁴¹Am，5.486-MeV Total system resolution of αFWHM. β resolution is approximately the pulse generator widthFWHM。

§Special order required.

Note:CompatibleAlphaKit of detectors:ENS-Series(Installation and testing included with purchase of new system)、ENS8Series(new system8Package spare parts)、BInterfaceULTRA-ASand low backgroundR series detector models are guaranteed to beAlphaKit products(DUO、MEGA、ARIA、ENSEMBLE)Compatible. All other detectors require special approval to ensure compatibility and specifications.

Effective area (mm2)	Guaranteed resolution* (keV)		minimum depletion depth 1000 µm
	α	β	Model.
25	13 14	6 6	A-013-025-1000 A-014-025-1000
50	14 15	7 8	A-014-050-1000 A-015-050-1000
100	14 15	7 8	A- A-
150	15 16	9 10	A- A-
300	17 18	13 14	A- A-
450	18 19	13 14	A- A-

Effective area (mm2)	Guaranteed resolution* (keV)		minimum depletion depth 1500 µm§
	α	β	Model.
25	14 16	9 11	A-014-025-1500 A-016-025-1500
50	16 18	11 13	A-016-050-1500 A-018-050-1500
100	17 19	12 14	A- A-
150	18 20	13 15	A- A-
300	20 23	15 18	A- A-
450	21 26	16 21	A- A-

Effective area (mm2)	Guaranteed resolution* (keV)		minimum depletion depth 2000 µm§
	α	β	Model.
25	16	11	A-016-025-2000
50	17	12	A-017-050-2000
100	18	13	A-
150	19	14	A-
300	22	17	A-
