21 products
View product

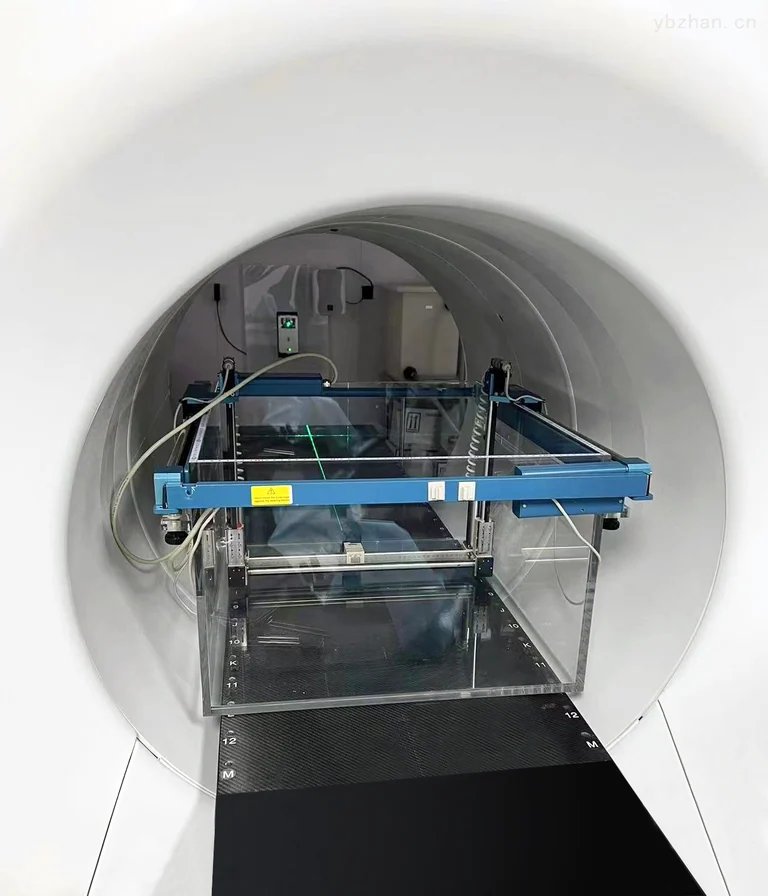

Product model: Brief description: Radiotherapy three-dimensional water tank is a device used for radiotherapy, which can simulate the three-dimensional structure and shape of human tissue and provide precise dose distribution. This equipment usually consists of a water tank and a control system.
View product
Product model: Brief description: Comply with IECPET detection phantom, domestically produced 1. PET detection phantom can measure the following indicators of PET: 1) spatial resolution; 2) sensitivity; 3) scattering fraction; 4) NECR.
View product
Product model: Brief description: SPECT detection phantom domestically produced 1. SPECT detection phantom can measure the following indicators of SPECT 1) Measure SPECT inherent plane integral uniformity 2) Inherent spatial resolution 3) Inherent spatial differential linearity
View product
Product model: Brief description: Designed in compliance with the recommendations of IEC and NEMA organizations, and meeting the requirements of the Ministry of Health's "Single Photon Emission Tomography Equipment (SPECT) Quality Control and Testing Specifications" ★ It is a capillary glass tube with an inner diameter of 1mm and an outer diameter of 1.8mm ★ Includes a point source adapter frame to facilitate user measurement and positioning. The SPECT lead grid phantom complies with the relevant provisions of test specification 4.2.
View product

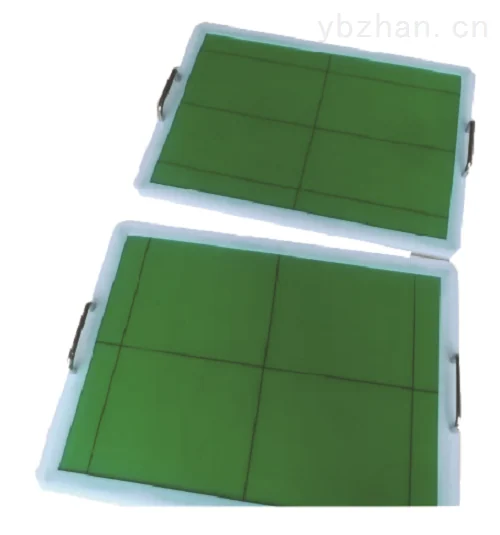

Product model: Brief description: SPECT lead grid phantom complies with the relevant provisions of testing specification 4.2. Measurable SPECT’s inherent spatial resolution Slit width 1.0mm; Distance between slits 30mm, Lead thickness 3mm
View product

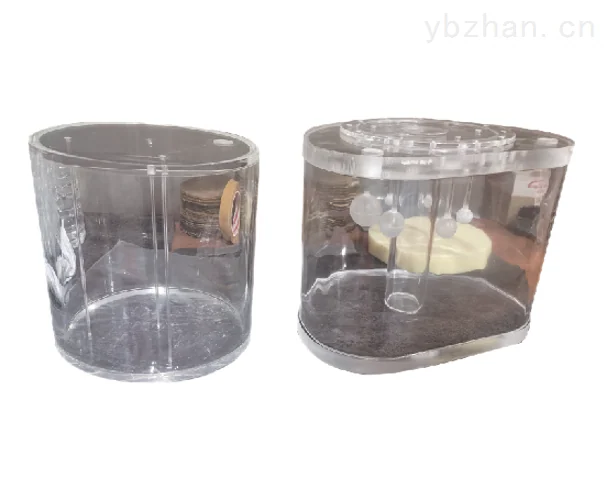

Product model: Brief description: PET CT phantom technical parameters: Master cylinder: - Phantom internal length: 180 mm - Fillable spheres (5) Inner diameter: 10 mm, 13 mm, - 17 mm, 22 mm and 28 mm. Distance from sphere to inner wall: 70 mm Empty cylinder volume: 9.7 liters
View product

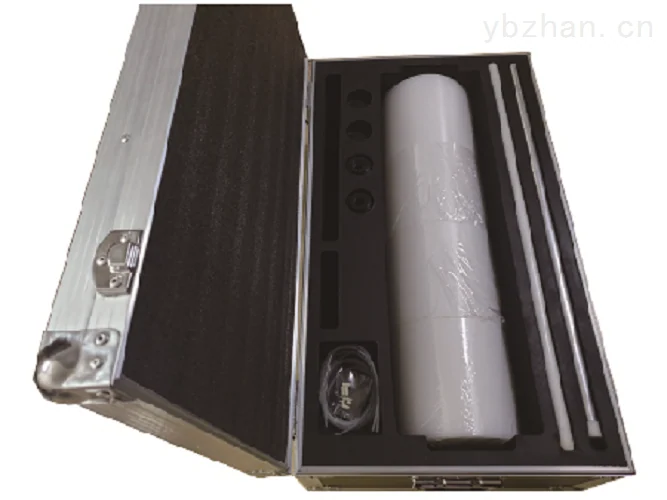

Product model: Brief description: PET sensitivity phantom: length 70cm; wall thickness 1mm; equipped with 2 wire source tubes as standard. Scattering fractional phantom: length 70cm; diameter 20cm; equipped with 2 line source tubes as standard. PET spatial resolution bracket: It can support the sensitivity phantom and capillary tube to measure the corresponding PET performance indicators; the capillary jack coordinates are (0, lcm), (0, 10cm), (10cm, 0); the sensitivity phantom sowing hole coordinates are (0, 0), (0, 10cm); adjustable horizontal design.
View product

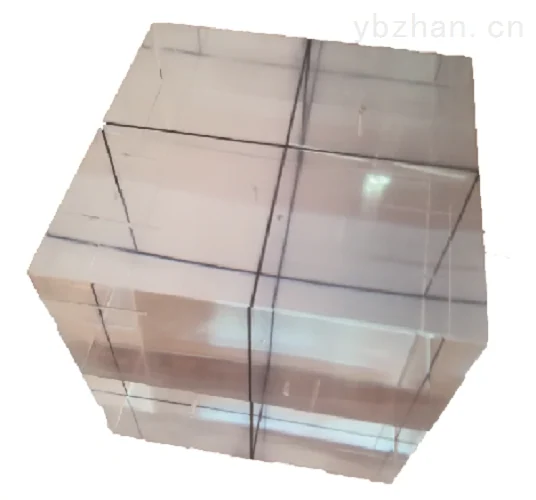

Product model: Brief description: 1. Solid water 2. Dimensions: 150mm × 150mm × 150mm 3. Upper and lower halves, symmetrical 4. Center point inlaid with 2mm black beads (upper and lower halves are inlaid with half a ball each) 5. Shallow cross lines
View product
Product Model: Brief Description: DSR504A Isocenter Calibrator Product Details The Isocenter Calibrator, Collimator is a versatile, high-precision quality assurance tool for daily, weekly or monthly quality assessment of all mechanical and geometric processing parameters of a linear accelerator or teletherapy device. Isocenter calibrator, the collimator can conveniently and accurately check the isocenterness of the collimator, the isocenterness of the bench, the isocenterness of the table, the field size accuracy of the collimator, the consistency of the radiation/light field, the rotational stability of the isocenter, ODI accuracy and laser alignment.
View product

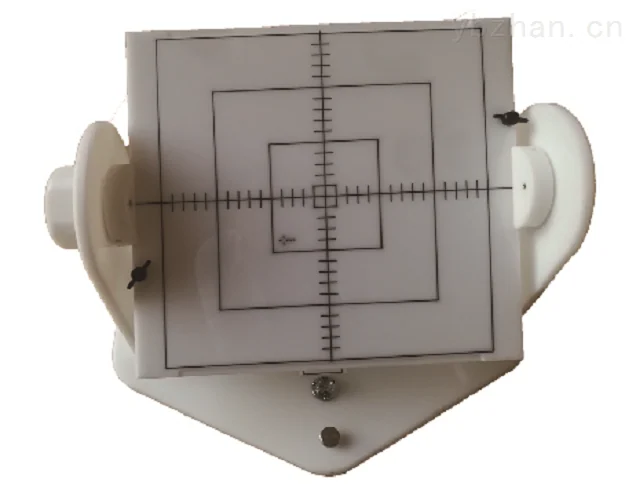

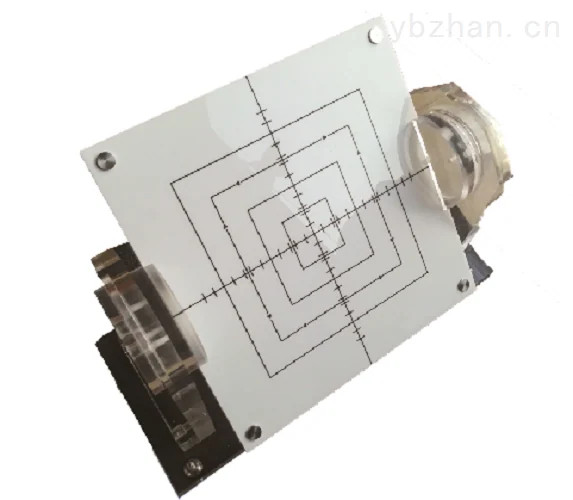

Product model: Brief description: The KR705 isocenter calibrator is used to test the accuracy calibration of laser positioners, linear accelerators and simulators for daily quality control. Verify the position and accuracy of the accelerator mechanical isocenter - rack rotation center - rack angle indication - collimator rotation center - intersection point of the bed revolution rotation center - collimator rotation stability. Test the accelerator radiation isocenter - light field parallelism correction - light field consistency verification. Light field crosshair indicator calibration. Fixed laser light indicator calibration·Distance scale indicator calibration Gammex 442-R isocenter calibrator is a quality assurance test instrument used to quickly and easily calibrate radiation therapy
View product

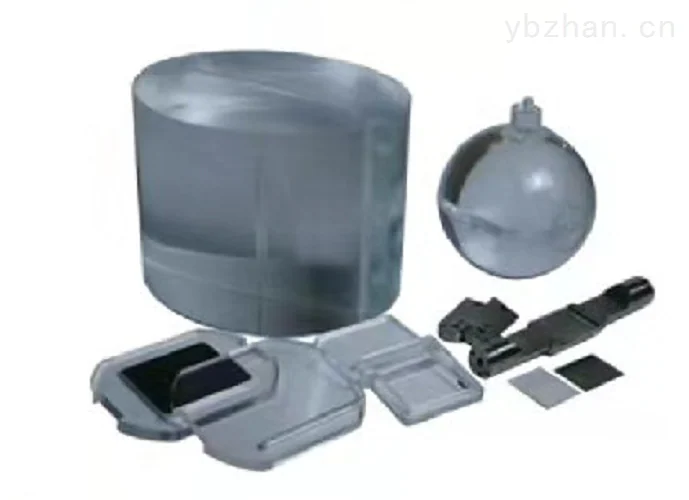

Product model: Brief description: X, γ-knife detection phantom made in China 1. Measurable γ-knife performance indicators: 1) focus dose rate 2) relative deviation between focus planned dose and measured dose 3) distance between mechanical center and radiation field center 4) maximum deviation between irradiation field size and nominal value 5) penumbra width and half-height width of irradiation field on the focal plane
View product
Product model: Brief description: Y-knife detection phantom This set of phantoms is designed for quality control testing of X-ray and Y-ray stereotactic radiotherapy systems and meets the health industry standards of WS582-2017. It can measure indicators such as focal dose rate, irradiation field size, irradiation field penumbra width, isocenter deviation, etc. The design of this set of phantoms is sufficient for quality control testing of X-ray and Y-ray stereotactic radiotherapy systems, and fully meets the health industry standards of WS582-2017. It can measure indicators such as focal dose rate, irradiation field size, irradiation field penumbra width, isocenter deviation, etc.
View product
Product model: Brief description: The three-dimensional ray beam analysis system of the radiotherapy water tank is a modern three-dimensional water tank system. Relevant measurements for accelerator QA. The system's correct position indicator and perfectly level mechanism significantly reduces setup time. Aluminum and stainless steel components ensure refinement and robustness. Microprocessor controlled, the unit features a dual-channel electrometer and control software with reversible polarity and automatic distance adjustment for quick and easy system setup.
View product
Product model: Brief description: The three-dimensional ray beam analysis system of the radiotherapy water tank is a modern three-dimensional water tank system. Relevant measurements for accelerator QA. The system's correct position indicator and perfectly level mechanism significantly reduces setup time. Aluminum and stainless steel components ensure refinement and robustness. Microprocessor controlled, the unit features a dual-channel electrometer and control software with reversible polarity and automatic distance adjustment for quick and easy system setup.
View product

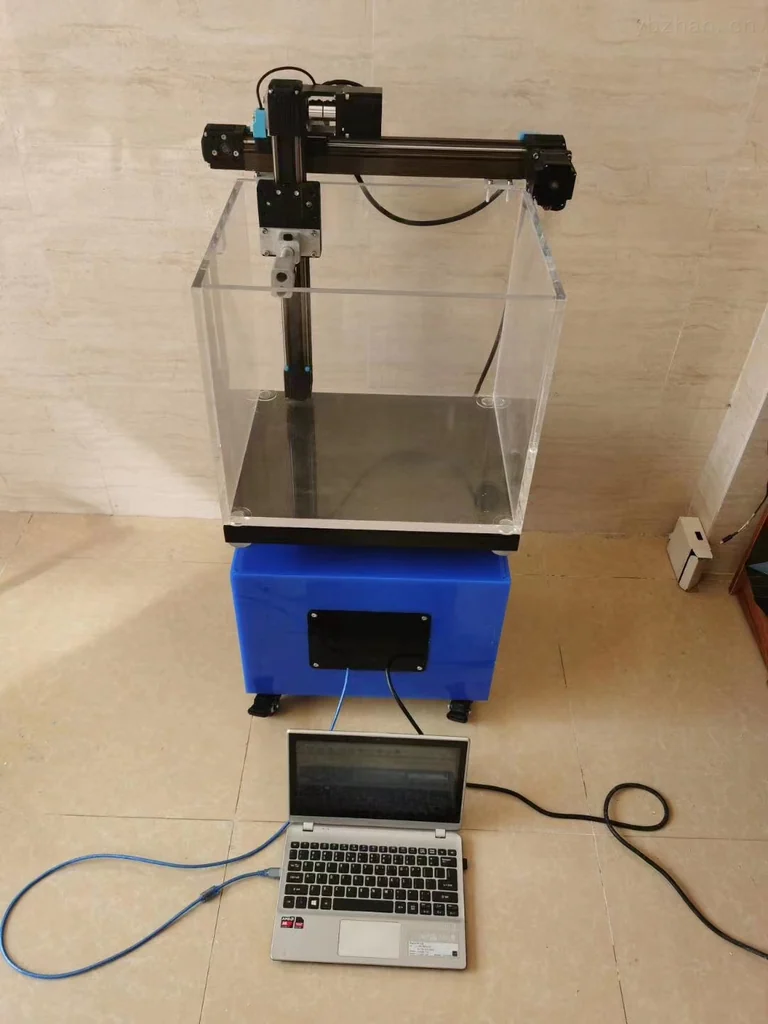

Product model: Brief description: The radiotherapy two-dimensional automatic scanning water tank system adopts automated measurement and control technology, which can quickly, conveniently and accurately scan and measure the beam parameters of various types of medical linear accelerators, X-knife and cobalt 60 long-distance treatment machines. The computer controls the multi-subdivision stepper motor to drive the precision mechanical transmission system, so that the scanning positioning accuracy of the system is less than 0.1mm; it can scan the horizontal and vertical directions of the radiotherapy beam, and quickly measure parameters such as the off-axis ratio and percentage depth of the radiotherapy field.
View product
Product model: Brief description: The system of the radiotherapy three-dimensional water tank adopts automated measurement and control technology, which can quickly, conveniently and accurately scan and measure the beam parameters of various types of medical linear accelerators, X-knife and cobalt 60 long-distance treatment machines. The computer controls the multi-subdivision stepper motor to drive the precision mechanical transmission system, so that the scanning positioning accuracy of the system is less than 0.1mm; it can scan the horizontal and vertical directions of the radiotherapy beam, and quickly measure parameters such as the off-axis ratio and percentage depth of the radiotherapy field.
View product
Product model: Brief description: The radiotherapy two-dimensional automatic scanning water tank system adopts automated measurement and control technology, which can quickly, conveniently and accurately scan and measure the beam parameters of various types of medical linear accelerators, X-knife and cobalt 60 long-distance treatment machines. The computer controls the multi-subdivision stepper motor to drive the precision mechanical transmission system, so that the scanning positioning accuracy of the system is less than 0.1mm; it can scan the horizontal and vertical directions of the radiotherapy beam, and quickly measure parameters such as the off-axis ratio and percentage depth of the radiotherapy field.
View product

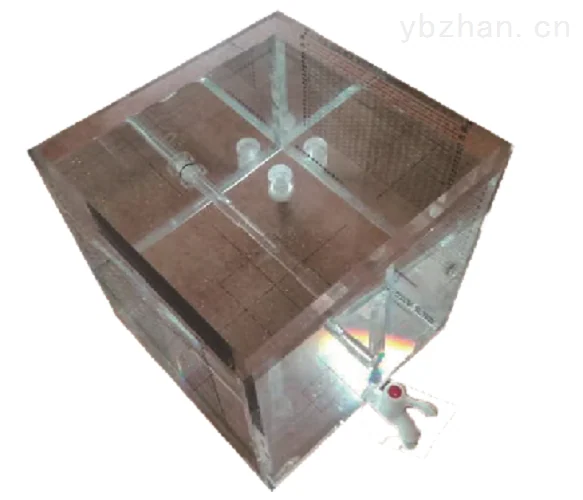

Product model: Brief description: This product is a standard water phantom for absolute dose testing. It is usually used with various dosimeters to measure absolute doses. Suitable for monitoring and calibration of high-energy photon and electron beam ionization chambers in water; the ionization chamber is inserted horizontally through the organic glass adapter hole on the wall; the measurement position is located 150mm below the upper wall, and the water level can be adjusted with the help of the wall scale to control the measurement depth
View product
Product model: Brief description: Blue Water Tank 2 is the only water tank system that can be tailored to the specific needs of the user, ensuring efficiency and precision. Physicists can select the required features from a range of options to configure the system to meet the user's specific needs.
View product
Product model: Brief description: DOSE1 is a portable, single-channel, high-precision reference-level electrometer. Its measurement indicators significantly exceed the standards specified by IEC 60731 and AAPM. It has extremely high accuracy and provides extremely high resolution capabilities over a wide dynamic range. This electrometer can use ionization chambers, semiconductor probes and diamond probes to measure absorbed dose. The stability of the ionization chamber response can be verified and cross-calibrated using radioactive inspection sources.
