Type KR709 PET sensitivity phantom

Type KR709 PET sensitivity phantom

Overview

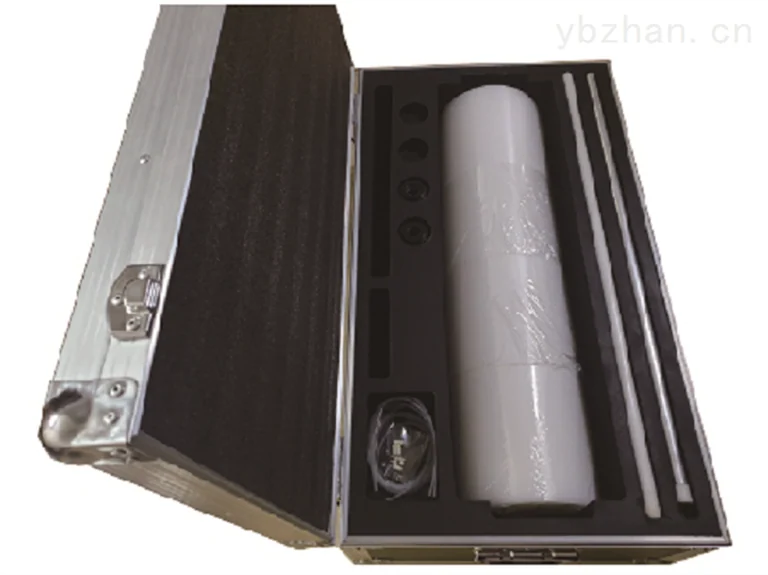

PET sensitivity phantom: length 70cm; wall thickness 1mm; equipped with 2 wire source tubes as standard. Scattering fractional phantom: length 70cm; diameter 20cm; equipped with 2 line source tubes as standard. PET spatial resolution bracket: It can support the sensitivity phantom and capillary tube to measure the corresponding PET performance indicators; the capillary jack coordinates are (0, lcm), (0, 10cm), (10cm, 0); the sensitivity phantom sowing hole coordinates are (0, 0), (0, 10cm); adjustable horizontal design.

Performance requirements for portable nuclide automatic dispensing instrument:1) Mass <10kg; 2) wan fully electric control (non-pneumatic); 3) peristaltic pump method to realize dispensing; 4) three-channel automatic control of the nuclide to be disposed; 5) wan fully automatic control of the dispensing process;

6) The activity meter reading can be displayed in real time in the control software. Nuclear medicine image quality control analysis software

YesDICOM format images can be analyzed to calculate inherent spatial uniformity, inherent spatial linearity, spatial resolution and system sensitivity as well as PET and CT image fusion accuracy. The following indicators of SPECT can be measured: inherent plane integral uniformity; inherent spatial resolution; inherent spatial differential linearity; system plane sensitivity; system spatial resolution; fault spatial resolution. It can measure the following indicators of PET: spatial resolution; sensitivity; scattering fraction; NECR; and can provide technical training services for quality control testing of nuclear medicine equipment. Accuracy: 1; Measuring range: 1-11;
