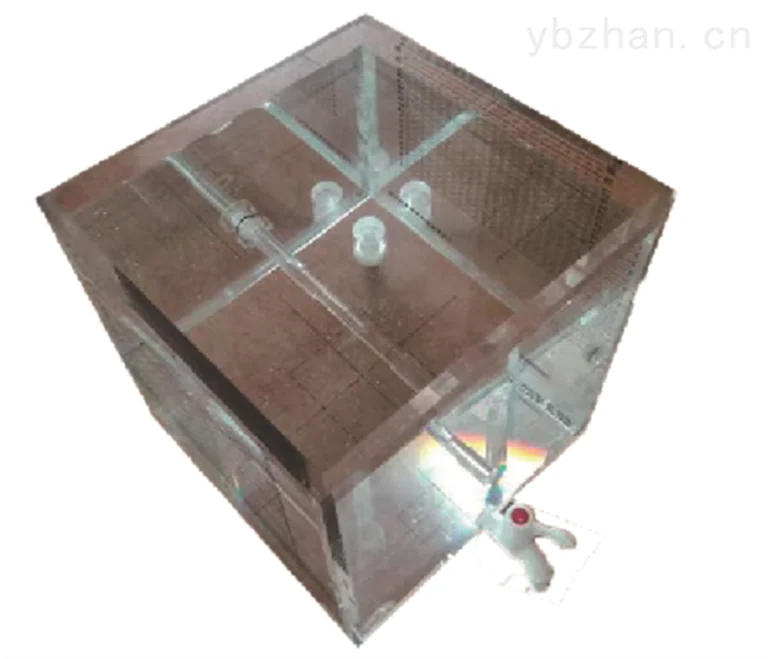

KR701 radiotherapy one-dimensional water tank

KR701 radiotherapy one-dimensional water tank

Product introduction

This product is a standard water phantom for absolute dose testing.

It is usually used with various dosimeters to measure absolute dose. Suitable for monitoring and calibration of high-energy photon and electron beam ionization chambers in water; the ionization chamber is inserted horizontally through the organic glass adapter hole on the wall; the measurement position is located below the upper wall150mmAt , the water level can be adjusted with the help of the wall scale to control the measurement depth;

1.Dimensions:30cm×30cm×37cm；

2.The water mold is equipped with suitable0.6ccBalanced waterproof cap for ionization chamber;

3.There are black water depth lines on the body wall of the water model;

4.bottom4Each support leg is equipped with a knob-type horizontal adjustment device;

5.The base plate and each side plate are marked with alignment reference lines;

6.A water faucet is installed on the water mold
