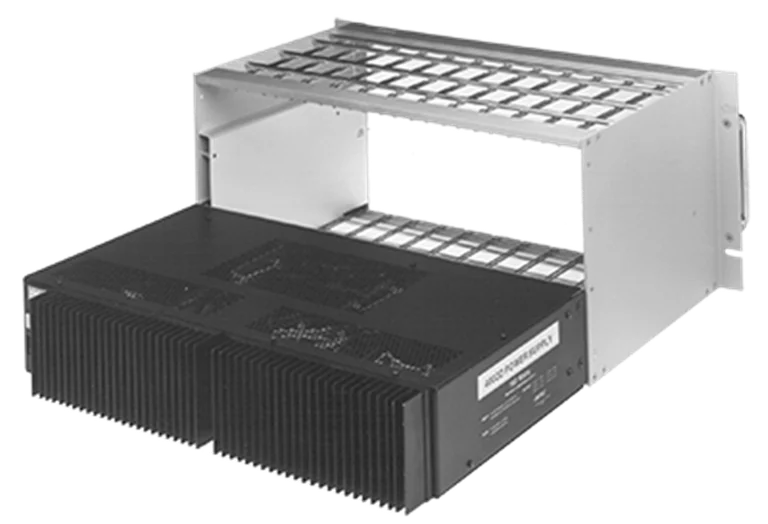

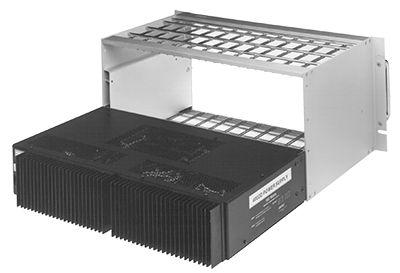

The 4002D power supply can be purchased separately for use with existing NIM chassis or ordered with the 4001A NIM chassis or 4001C NIM chassis. Mounting hardware is included so that the 4002D is compatible with all ORTEC NIM chassis. With minor mounting changes, the 4002D can be used in most standard NIM enclosures. It is recommended to use the ORTEC 4001C NIM chassis with the Model 4002D because the Model 4001C uses copper busbars to distribute power, minimizing the voltage drop at each module's power plug. The 4002D power supply is designed to exceed the V-H type power supply specifications defined in DOE/ER-0457T.
The conservative regulated DC power ratings provided by the Model 4002D to the attached chassis are +6 V @ 10 A, –6 V @ 10 A, +12 V @ 3 A, –12 V @ 3 A, +24 V @ 1.5 A, and –24 V @ 1.5 A. These output currents can be combined in any combination as long as the total output DC power does not exceed 160 W at ambient temperatures up to 50°C. Additionally, 115 V AC up to 0.5 A is available.
There are several ways to prevent overloading. When the heat sink temperature exceeds 95°C, a red warning light on the connection chassis control panel will illuminate. When the radiator temperature exceeds 110°C, the power will automatically turn off and the power and temperature indicators will go out. It will automatically recover when the heat load is reduced. The feedback circuit limits the output current of the DC power supply to 120% of its rating. This provides overload and short circuit protection. On +6 V and -6 V DC supplies, the circuit limits the output voltage to 7.5 V to protect the integrated circuit. The fuse protects the AC input of the power supply.
An external slide switch selects 115 or 220 V AC as the power input. The optional power input can be changed to 100 and 200 V AC by changing pins on the internal connector. The international standard IEC power connector allows the use of power cords and plugs that comply with local electrical standards. The main power supply is controlled through the switch on the NIM chassis control panel.
The power and control lines of the NIM chassis are connected through the standard interface connector specified in DOE/ER-0457T. Mounting the power supply to the chassis requires the use of standard bolts specified in DOE/ER-0457T to secure the bracket.
