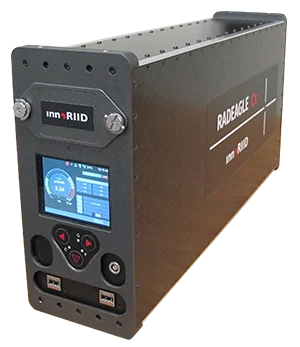

RADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applications

Radeaglet-Cx Announcementbrochure

Versatility

Interactive or stand-alone operation: RECx can be used in interactive systems where the user is actively involved (e.g. backpacks, vehicle systems, airborne systems, portal monitoring) or as a stand-alone system installed and connected via the Industrial Internet of Things (IIoT).

Adaptable Gamma and Neutron Detectors: RECx offers gamma detectors in three different sizes to meet your application sensitivity needs. The optional LiZnS neutron detector provides excellent neutron detection performance without the need for He-3 gas.

Innovative isotope identification algorithm that delivers performance

Next generation nuclide identification algorithm: RECx leverages innoRIID’s fully tested, reliable and groundbreaking isotope identification algorithm. Unlike other systems that rely solely on template matching, this strategy integrates template matching, peak search, and intelligent analysis. This reliable technology minimizes false alarms while accurately identifying radionuclides of interest, working accurately even in complex real-world situations involving masking and shielding sources.

Modular and connected via IIoT

Multiple RECx modules can be interconnected to build larger integrated measurement devices, which can be controlled via the onboard web interface. RECx units are compatible with Industrial Internet of Things (IIoT) standards, so networked units (RJ-45, Wi-Fi) are interoperable and can send identifying information to integrate virtually into any existing IT infrastructure. RECx supports Telemetry Transport (MQTT) data streaming, provides an interactive REST API to retrieve data, and has a classic serial output port. All RECx units have batteries so they can operate continuously during temporary mains power outages.

Sturdy yet lightweight design

The RECx case uses aluminum and carbon fiber to provide increased durability without sacrificing portability. Shock-absorbing materials are used to protect sensitive internal components.

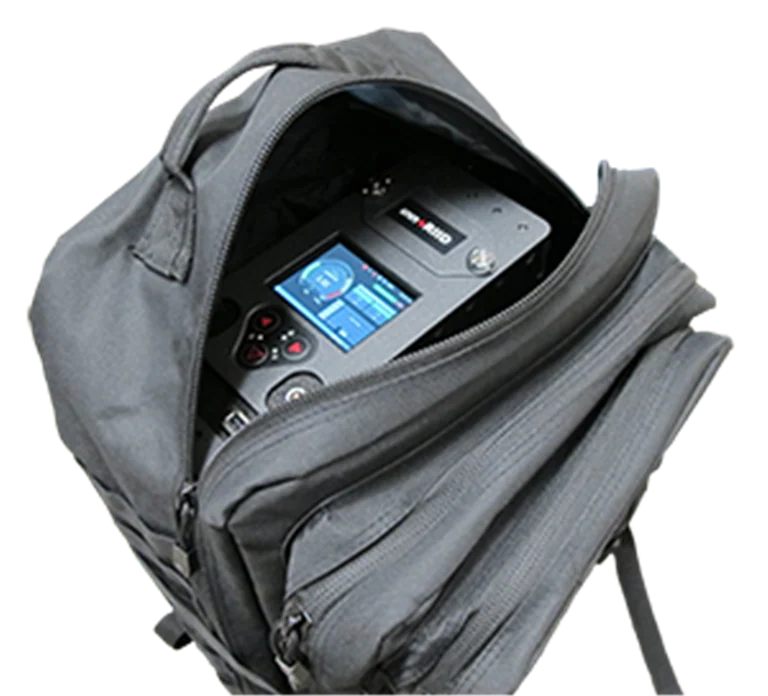

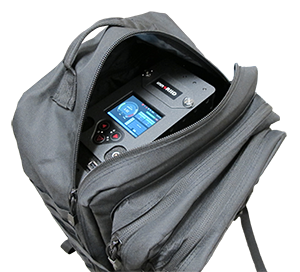

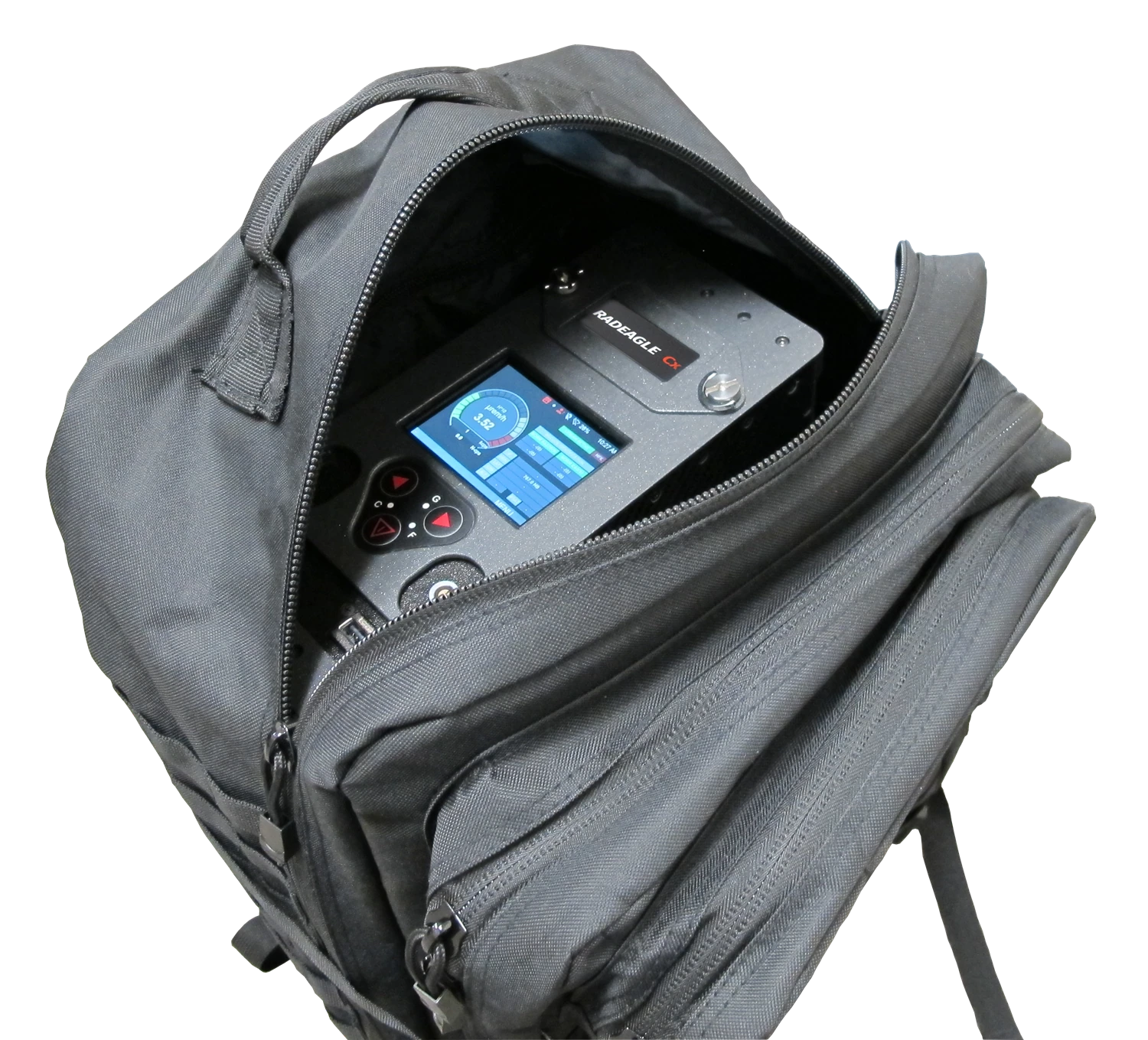

RECx-BPOptimized for wearable configurations, it delivers maximum radioisotope detection and identification performance in a discreet, ergonomically designed backpack.RECx Backpack availablePrepare 2“ x 4” x 4“ or 2” x 4“ x 8” GaHorse detector, optional with or without neutron detector

Performance, weight and budget can be customized to meet your specific needs. The RADsync app provides users with all relevant information in an intuitive, easy-to-navigate format and even supports augmented reality glasses for true “heads-up” functionality.

RECx Backpack Key Features:

• proprietary ID Algorithms provide fast, accurateIdentify and classify.
• straightObservational RADsync IoS applications and based on Web The interface is helpful to use.
• RADsync provide“tracesNavigation”tracking andMark the location of potential threats 。
• ErgonomicConcealed backpacks provide comfort even during long missions.
• Hot-swappable batteries allow continuous operation.
• multiple API Help share information:REST、MQTT、MFK、 SIGMA。
•  OKpassed RADsync Apps and smartphones connect with augmented reality glasses , to maximize operationpersonnel’s situational awareness while performing prudent operations (as with any ActiveLook® technologycompatible with the brand of technology)。

All models include rechargeableElectric nickel metal hydride battery,100to240V、50to60Hzpower supply,12Vcar adapter, bluetooth andWi-Fiand operating manual.BPModel includesGrade backpacks and spare batteries, weight range12pounds to33pounds (6kgto15kg）。
