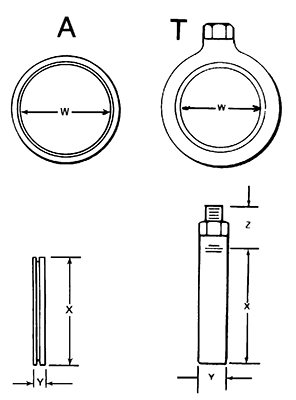

Mount must be specified when ordering.
Provided unless otherwise specified with appropriate letter prefixTmounting base;4mm holes are standard, available on special order6mm or8mm hole or other area and depth.
**The first three digits of the model number indicate the standardORTECelectronic equipment and0.5-μsWhen shaping the time constant,241Am，5.486-MeV Total system resolution of αFWHM. β resolution is approximately the pulse generator widthFWHM。
Note:CompatibleAlphaKit of detectors:ENS-Series(Installation and testing included with purchase of new system)、ENS8Series(new system8Package spare parts)、BInterfaceULTRA-ASand low backgroundR series detector models are guaranteed to beAlphaKit products(DUO、MEGA、ARIA、ENSEMBLE)Compatible. All other detectors require special approval to ensure compatibility and specifications.
|
Effective area (mm2)
| Guaranteed resolution**（keV） | minimum depletion depth100μm | minimum depletion depth300μm | minimum depletion depth500μm |
| α | β | Model | Model | Model |
| 50 | 17 | 9 | C-017-050-100 | C-017-050-300 | C-017-050-500 |
| 150 | 19 | 12 | C-019-150-100 | C-019-150-300 | C-019-150-500 |
| 300 | 21 | 14 | C-021-300-100 | C-021-300-300 | C-021-300-500 |
| 450 | 25 | 20 | C-025-450-100 | C-025-450-300 | C-025-450-500 |
|
Effective area (mm2)
| Guaranteed resolution**（keV） | minimum depletion depth1000μm |
| α | β | Model |
| 50 | 18 | 10 | C-018-050-1000 |
| 150 | 20 | 12 | C- |
| 300 | 22 | 15 | C- |
| 450 | 25 | 20 | C- |
