533 dual summing and inverting amplifier

Product model:

Brief description:Summing up to four inverting or non-inverting linear inputs Two independent amplifiers, each with a gain of -1 Wide bandwidth, DC to 7MHz Wide dynamic range, 0 to 10V Excellent temperature stability The ORTEC Model 533 Dual Summing and Inverting Amplifier is a single-wide NIM module integrating two high-bandwidth unified gain amplifiers

Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance

Product consultation

Contact

Products

PRODUCT CATEGORY

Detailed introduction

Summing up to four inverting or non-inverting linear inputs
Two independent amplifiers, each with a gain of -1
Wide bandwidth, DC to 7 MHz
Wide dynamic range, 0 to ±10 V
Excellent temperature stability

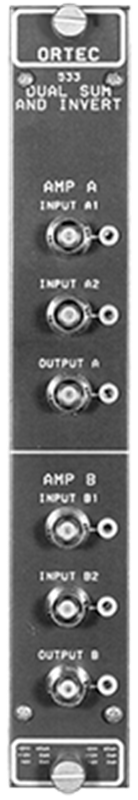

The ORTEC Model 533 Dual Summing and Inverting Amplifier is a single-width NIM module integrating two high-bandwidth unified gain amplifiers.

information +
- 533 Brochure
- 533 Brochure (A4)
- 533 manual
More information +

Amplifier A has four summing inputs, and amplifier B has two summing inputs. Both amplifiers can invert the signal. If a non-inverting output is required, Amplifier A can be cascaded through Amplifier B to form a non-inverting 4-input summing amplifier. By connecting the A input in parallel with the B input in parallel, the Type 533 can be used as a non-inverting amplifier with gains of 1, 2, 3, 6 or 8.

The wide dynamic range and high bandwidth allow the ORTEC Model 533 to be used to sum and/or invert any signal from DC to 7 MHz bandwidth, such as most NIM standard linear or logic signals. Convenient oscilloscope monitor test points are located next to each front panel connector (six in total).

Specifications +

Performance

voltage gain	Each input is-1;Tolerance≤±2％。
Bandwidth	DC to7 MHz（t_r ≤50 ns）。
integral nonlinearity	<±0.05％。
temperature instability	Gain ≤±0.005％/°C. Output DC level ≤±50 μV/°C。

Input

amplifierAWith four identical inputs, the amplifierBThere are two identical inputs; each accepts0to10 Vrated voltage range,12 V, positive or negative, unipolar or bipolar;Z_in 〜666Ω, DC coupled; front panel inputA1、A2、B1andB2, rear panel input terminalA3andA4;allBNCconnector.

Output

amplifierAandBThe output is independent;0to±10 Vlinear range;Z_o 〜0.1Ω; output terminal on the front panelAandB；BNCconnector.

electrical and mechanical

Required power supply	+24 V，65 mA; -24 V，65 mA。
weight	Net weight 0.9Kilogram (2pounds).Shipping weight 2.2Kilogram (5pounds).
Size	Standard single widthNIM，3.43 X 22.13cm (1.35 X 8.714inches), consistent withDOE/ER-0457Trequirements.

Ordering information +

Model

Description

533

Dual Summing and Inverting Amplifier
