KR1204 DigiDent CBCT oral cone beam CT performance phantom
Product model:
Brief description:DigiDent CBCT oral cone beam CT performance phantom is used for oral cone beam CT (oral and maxillofacial cone beam computed tomography) equipment quality control performance testing. Meets the requirements of T/WSJD 8-2020 Oral Cone Beam CT Quality Control and Testing Standards. Detection items: Impact on uniformity; high contrast resolution; low contrast resolution; ranging error, etc.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- Precautions when using dental phantoms
- Online radiation alarm is the key equipment for modern radiation protection
- Radiotherapy three-dimensional water tank is an important equipment in the field of radiotherapy
- When choosing an explosion-proof radiation measuring instrument suitable for your own use, you need to consider these aspects
- Important equipment for radiation environment monitoring: A brief analysis of the application of KARRAY neutron dose rate meter
- What is the specific role of CT performance testing phantom?
- X-ray multifunctional quality detector is an important non-destructive testing equipment
- The appropriate light field detection board should be selected according to needs
- Thermoluminescence dosimeter: an important tool for accurate radiation dose measurement
- Application of X-ray machine comprehensive tester in medical equipment upgrading and transformation
Detailed introduction
Product introduction
DigiDent CBCT oral cone beam CT performance phantom is used for oral cone beam CT (oral and maxillofacial cone beam computed tomography) equipment quality control
Performance testing.
satisfyT/WSJD 8—2020 Oral Cone Beam CT Quality Control and Testing Standard Requirements.
Test items : Affects uniformity; high contrast resolution; low contrast resolution; ranging error, etc.

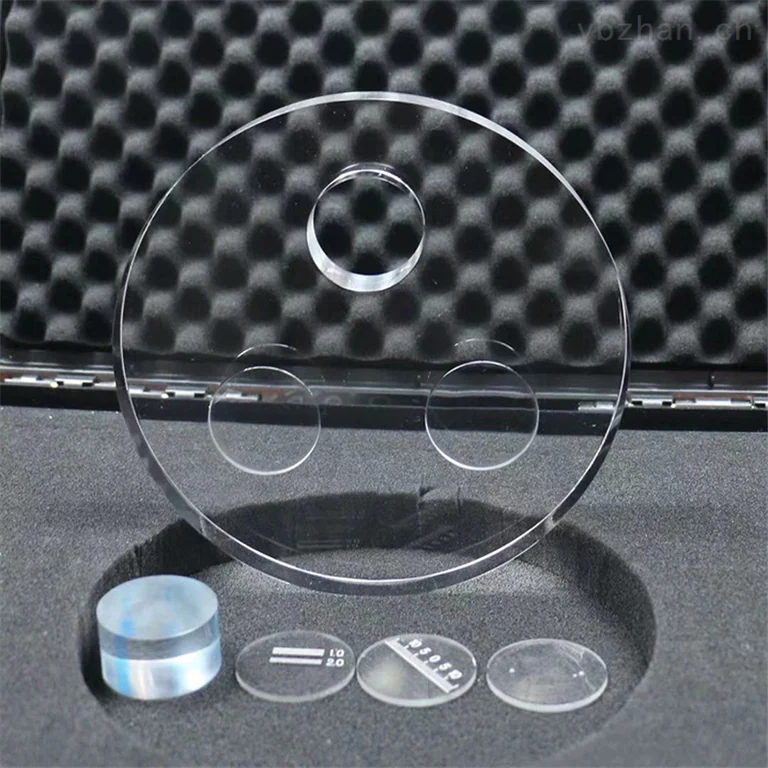

oral cone beamThe main body of the CT performance phantom should be composed of a PMMA cylinder with a diameter of 15 cm to 17 cm, and there should be uniformity testing in the phantom.
Module, high contrast resolution test module, low contrast resolution test module and ranging module. The uniformity test module has a diameter of15 cm～
17 cm is composed of PMMA with a height of not less than 2 cm; the line pair range of the high contrast resolution test module should cover 1.0 lp/mm ~ 2.0 lp/mm; low
The contrast resolution test module is composed of low-density polyethylene, with diameters in the axial direction of1 mm, 2 mm, 3 mm, 4 mm and 5 mm; measured
The module should be able to provide an axial distance greater than20 mm distance indication.
