Dent-P type dental phantom
Product introduction

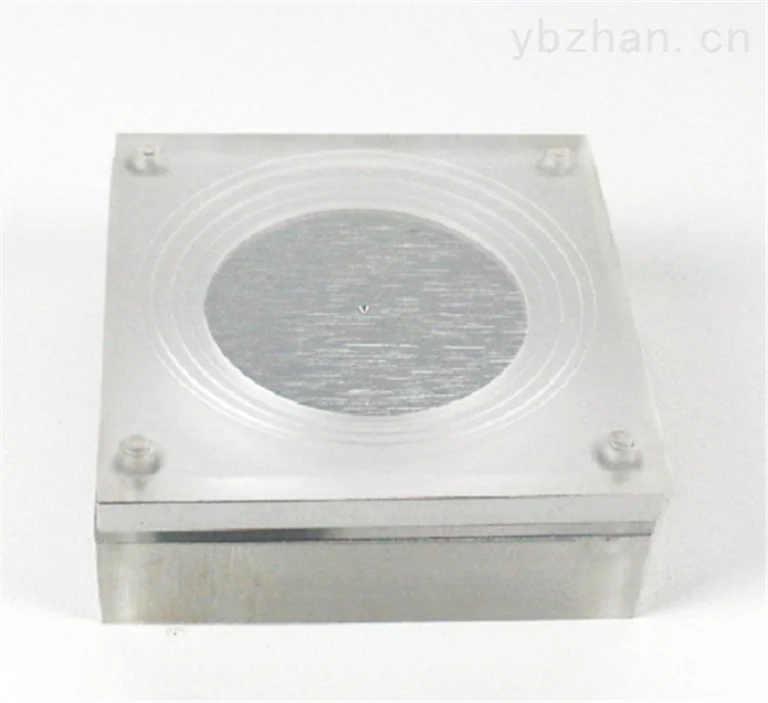

Dent-P type dental phantomUsed for performance testing of dental machines and panoramic dental machines.
（1) The upper plate contains central annular grooves with diameters of 70mm, 66mm, 60mm, 55mm, and 50mm, which are used to place tapered collimation cylinders of different sizes and 6mm thick aluminum absorbers with a purity of 99.6%;
（2) The middle plate is a high-contrast resolution and low-contrast resolution test phantom. The high-contrast resolution test phantom contains 5 line pairs of 1.6lp/mm, 2.0lp/mm, 2.2lp/mm, 2.5lp/mm, and 3.0lp/mm, arranged horizontally;
（3) 23.3. The 0.5mm aluminum plate of the low contrast resolution test phantom. The diameters of the 6 small holes on the aluminum plate are 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 3.0mm. The purity of the aluminum plate is 99.6%;
（4) There is a gap on the substrate for placing dose detectors and sensors;
（5) Contains 0.8mm thick copper plate and matching carrying case
Fully compliant: medical useTesting requirements for X-ray diagnostic equipment quality control testing regulations (WS 76-20200).
