Home-Products-Radiological imaging quality control equipment-Breast testing kit-Breast detection phantom KR1108
Breast detection phantom KR1108
Product model:
Brief description:Breast detection phantom KR1108 Breast detection phantom KR1108 is used for acceptance and stability testing of screen mammography cameras. Dimensions: 180mm x 240mm Construction: 6 mm thick polymethylmethacrylate (PMMA) board containing horizontal and vertical resolution test charts: 8, 10, 13 and 16 lp/mm respectively
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- A thermoluminescence dosimeter is an analytical device used to measure radiation dose
- How to choose a neutron dose rate meter? Understand the detection principle so that you will not be fooled by the parameter table
- Nuclear radiation monitoring expert: The technical foundation and market reputation verification of KARRAY Technology’s neutron dose rate meter
- Precautions when using dental phantoms
- This knowledge of CT dose detection phantom is worth learning
- Low contrast detail detection phantom丨Product Encyclopedia
- Application of low contrast detail detection phantom
- Thermoluminescent personal dosimeters can be used in areas such as environmental dose monitoring
- Online radiation alarm is the key equipment for modern radiation protection
- Personal dose alarm brand analysis: Garry’s technical strength and market performance
Detailed introduction

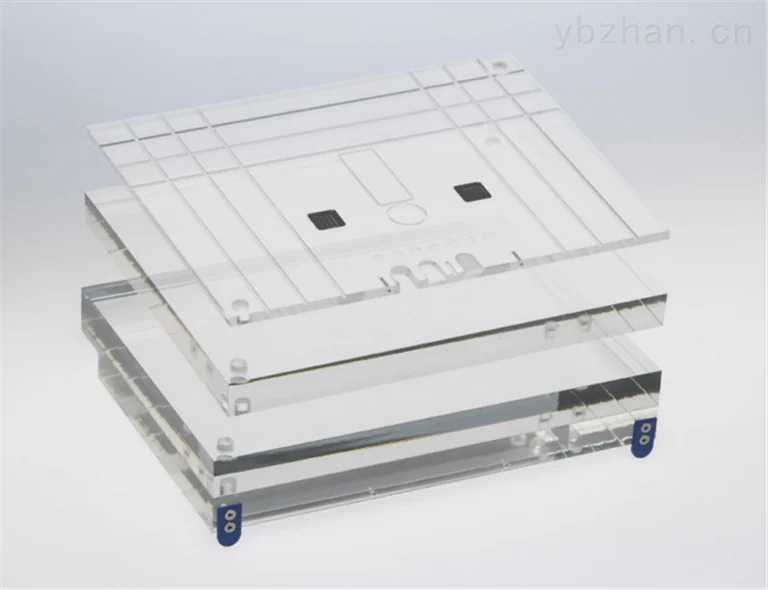

Breast detection phantomKR1108
Breast detection phantomKR1108 for screen film mammography Machine acceptance and stability testing.
Size：180mm x 240mm
structure：6 mm Thickness of polymethyl methacrylate (PMMA) board, containing horizontal and vertical resolution test charts: respectively8, 10,
13 and16 lp/mm
Low contrast objects:
drilling,5.5 mmdiameter, depth is0.10 / 0.15 / 0.20 / 0.25 / 0.30 / 0.35 / 0.40 mm
Areas of increased radiation attenuation:3.5 mm PMMA + 2.5 mm PTFE (PTFE) The area used for measuring optical
Density
20 mm thicknessPMMAboard
40 mm thicknessPMMAboard
Two rows of steel balls (each row5): diameters are2 mm, used to check the originalXHarness (loss of information on the side near the chest wall)
Marked area: for placement of dose detectors and measurement of optical density
Product consultation
