Detailed introduction
Product introduction
 |
The model (magic) cube isDesigned for general QA in RT and IMRT applications, it is easy to use and quick to set up. It faithfully simulates linear attenuation to within 1% from 50keV to 15MeV. This enables complete QA from CT image acquisition to treatment dose verification. The 20 cm cube is suitable for head/neck and torso treatment. All edges are rounded to avoid CT artifacts. Chamber, diode or MOSFET detectors can be easily positioned at the isocenters of the cube, and laser alignment marks on all four sides facilitate phantom location. The position of the detector can be adjusted vertically by 1 mm and horizontally by 5 mm.
Measurement method

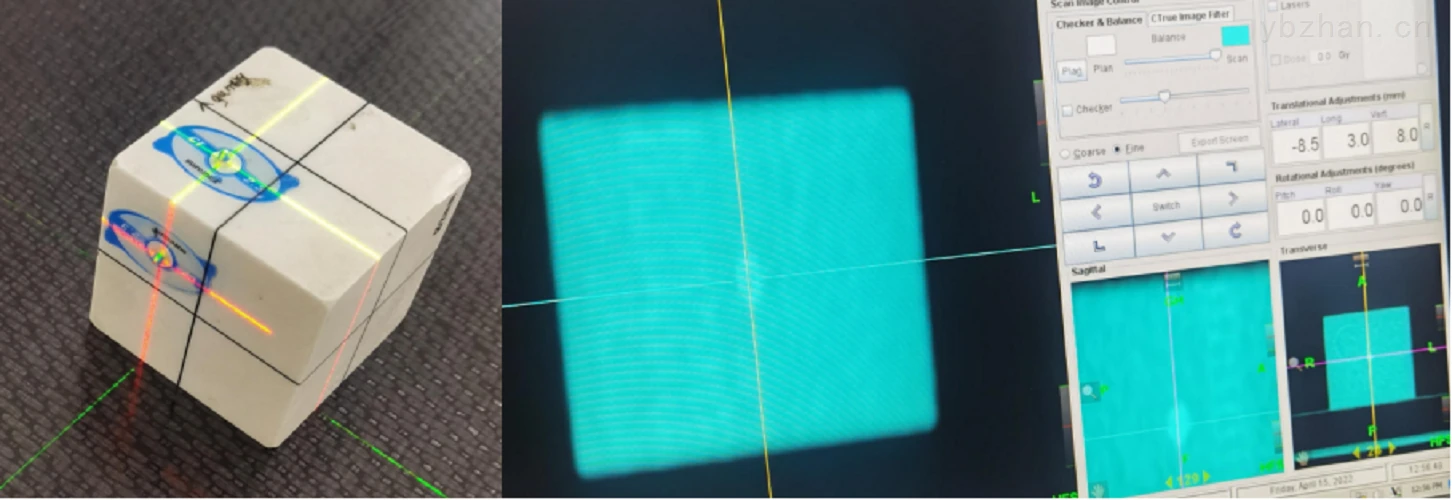

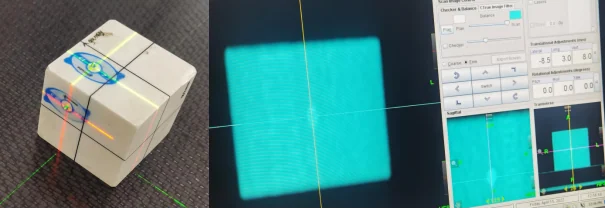

Modular (magic) cube measurement→︎Laser offset in X, Y, Z axis direction
Red laser light indicates accuracy
• With the red laser light in its initial position, check its coincidence with the green laser light.
• Within ±20cm from the virtual isocenter, the overlap deviation of the red laser light and the green laser light should be within ±1.0mm.
 |

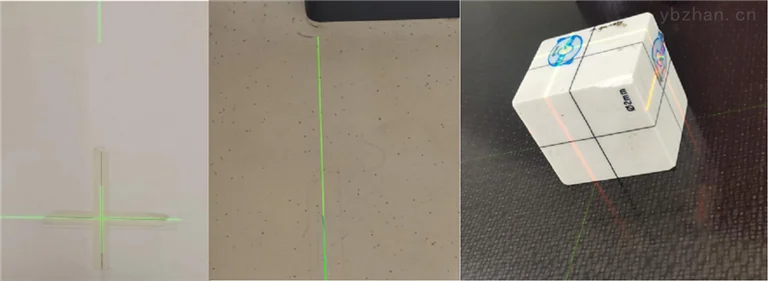

Coincidence deviation detection of red laser light and green laser light: wall→︎Ground→︎Mold Square
Size
Module (Rubik's) CubeDimensions:20cm x 20cm x 20xm
Side spacers:0.5cm,1cm,2cm
Height Spacer:0.5cm,1cm,2cm
