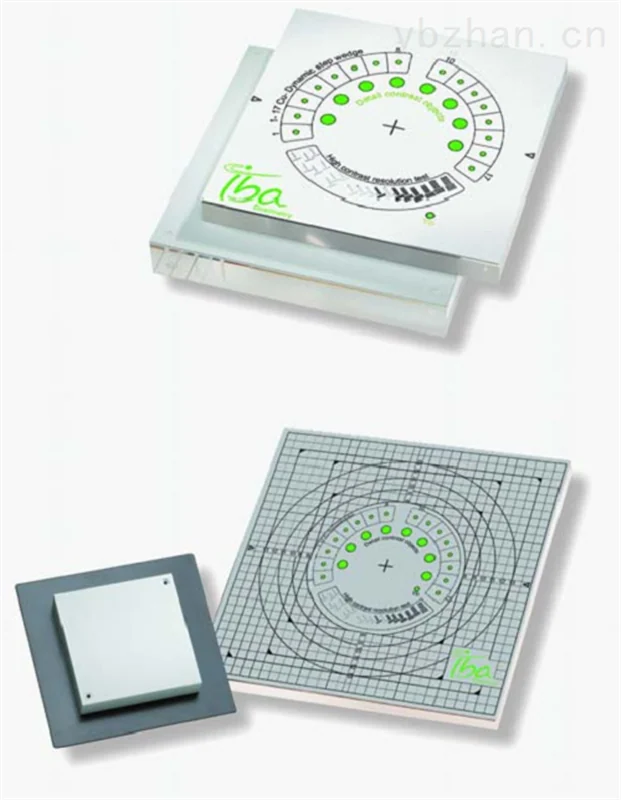

Digital radiography and fluoroscopic system inspection phantom Primus
Product model:
Brief description:Meet the "WS76-2020 Quality Control and Testing Specifications for Conventional Medical X-ray Diagnostic Equipment" Digital X-ray photography and fluoroscopy system detection phantom detectable parameters: Spatial (line pair) resolution Low contrast resolution High contrast resolution Boundaries of useful wire harnesses
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- Application scenarios for low-contrast detail detection phantoms
- Low contrast detail detection phantom丨Product Encyclopedia
- Application of low contrast detail detection phantom
- Long pole radiation measuring instrument is an important link in the radiation protection system
- 2026 Radiation Detector Purchase and Avoidance Guide: How does KARRAY Technology solve the industry’s pain points with “technology + service”?
- Radiotherapy three-dimensional water tank is an important equipment in the field of radiotherapy
- How to choose a neutron dose rate meter? Understand the detection principle so that you will not be fooled by the parameter table
- Thermoluminescence dosimeter: an important tool for accurate radiation dose measurement
- The core of the thermoluminescent dose box is the thermoluminescent detector
- How effective is the spatial resolution test card in practical applications?
Detailed introduction
Product introduction
l Satisfy "WS76-2020 Quality Control and Testing Specifications for Conventional Medical X-ray Diagnostic Equipment"
l numbersParameters that can be detected by X-ray photography and fluoroscopy system detection phantoms:
l Spatial (line pair) resolution
l low contrast resolution
l High contrast resolution
l Limits of useful harnesses
l Artifact
l Tube long axis direction
l Dynamic wedge ladder
l No.Grade 1: 0.00mm copper, Grade 17: 3.48mm copper
l inThere are 16 contrast detail objects with a diameter of 4mm and a depth of 2.5mm on a PMMA (polymethyl methacrylate) plate (used to evaluate the contrast resolution of each step in the copper wedge ladder)
l kV measurement area, made of 0.78mm thick ytterbium
l Cross lines, marking the center of the test object
l 8 detailed contrast objects with a diameter of 10mm and a depth of 0.4~4mm, used to determine the contrast resolution of the current working setting
l Structureless interior area
Semicircular high-resolution test area:0.6~5.0lp/mm Number observable in radiographic images to indicate dynamic wedge ladder
