Low contrast detail detection phantom
Product model:
Brief description:The low-contrast detail detection phantom is an experimental tool specially used to detect the performance of X-ray and other equipment in low-contrast environments. The use of low-contrast detail detection phantoms can help medical personnel better understand the performance of imaging equipment, thereby more accurately judge the condition and formulate more effective treatment plans.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- Application scenarios for low-contrast detail detection phantoms
- Low contrast detail detection phantom丨Product Encyclopedia
- Application of low contrast detail detection phantom
- Long pole radiation measuring instrument is an important link in the radiation protection system
- 2026 Radiation Detector Purchase and Avoidance Guide: How does KARRAY Technology solve the industry’s pain points with “technology + service”?
- Radiotherapy three-dimensional water tank is an important equipment in the field of radiotherapy
- How to choose a neutron dose rate meter? Understand the detection principle so that you will not be fooled by the parameter table
- Thermoluminescence dosimeter: an important tool for accurate radiation dose measurement
- The core of the thermoluminescent dose box is the thermoluminescent detector
- How effective is the spatial resolution test card in practical applications?
Detailed introduction

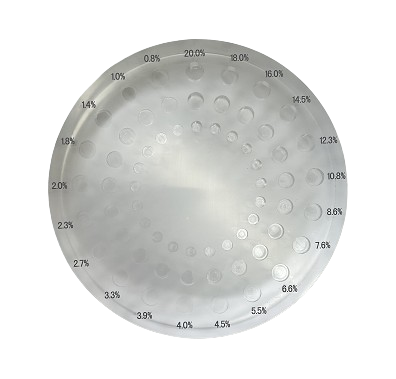

The low-contrast detail detection phantom is an experimental tool specially used to detect the performance of X-ray and other equipment in low-contrast environments. This type of phantom is usually made of specific materials, such as plexiglass or acrylic, and has a specific structural design, such as inserting small details of different diameters in its center to simulate the different attenuation effects of human tissue. The use of low-contrast detail detection phantoms can help medical personnel better understand the performance of imaging equipment, thereby more accurately judge the condition and formulate more effective treatment plans.
The main function of this type of phantom is to quantitatively evaluate the imaging quality of medical imaging equipment, especially in fields such as mammography, where it plays an important role in improving diagnostic accuracy and treatment effects. By using low-contrast detail detection phantoms, medical personnel can better understand the performance of imaging equipment, more accurately diagnose conditions, and develop more effective treatment plans.
When inspecting a phantom with low contrast detail, it is first placed over the detector and then exposed using appropriate conditions. These conditions usually include parameters such as X-ray dose, voltage and current, which need to be adjusted according to the specific equipment and use environment. All markings on the phantom are opaque and can be clearly seen in X-ray imaging.
Observe the phantom image on the viewing light box and record the smallest detectable details in the image. These details are often designed with varying sizes and densities to simulate the attenuation effects of human tissue under different conditions. In addition, some phantoms may contain specific structures, such as matrix-distributed grids and checkpoints, used to evaluate the high-contrast resolution and low-contrast resolution of the device.
The testing process needs to be carried out in accordance with relevant technical specifications, such as "Computed Radiography (CR) Quality Control Testing Specifications" (WS 520-2017) and "Medical Digital Radiography (DR) System Control Quality Testing Specifications" (WS 521-2017), etc. In addition, some special phantoms, such as DSA performance testing phantoms, can also be used to detect the dynamic range, contrast uniformity and other indicators of the DSA system.
The advantages of low-contrast detail detection phantoms are mainly reflected in the following aspects:
1. This type of phantom can quickly and quantitatively detect image imaging quality, and is suitable for various equipment such as X-ray radiography systems and CR systems. Through this kind of detection, the imaging performance of medical imaging equipment can be effectively evaluated and improved, thereby improving diagnostic accuracy and treatment effects.

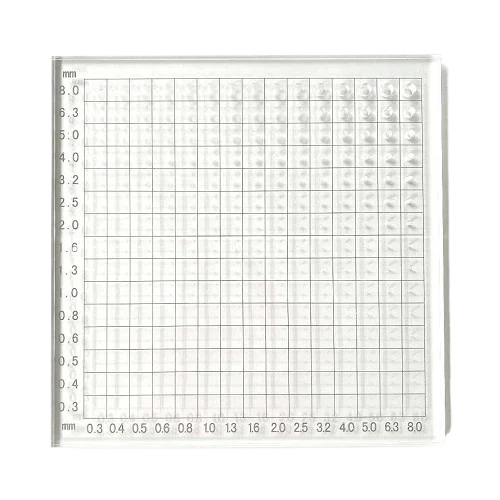

2. The low-contrast detail detection phantom has a good design structure. For example, the breast threshold contrast detail detection phantom contains a large number of low-contrast detail matrices distributed in square areas. This can help medical personnel better understand the performance of the equipment and judge the condition more accurately.
3. Some models of low-contrast detail detection phantoms are also easy to carry and easy to use. It is composed of different detail points, and both the diameter and contrast range can be adjusted to suit different testing needs.
4. The use of low-contrast detail detection phantoms complies with relevant national standards, so its test results have high accuracy and reliability.
