Detailed introduction
DRLRIEC-18 low contrast detail detection phantom
•DRLRIEC-18 meets WS 521-2017 "Quality Control Testing Specifications for Digital Radiography (DR) Systems"
Appendix B.1 IEC low contrast phantom requirements
•40mm organic glass (PMMA) module

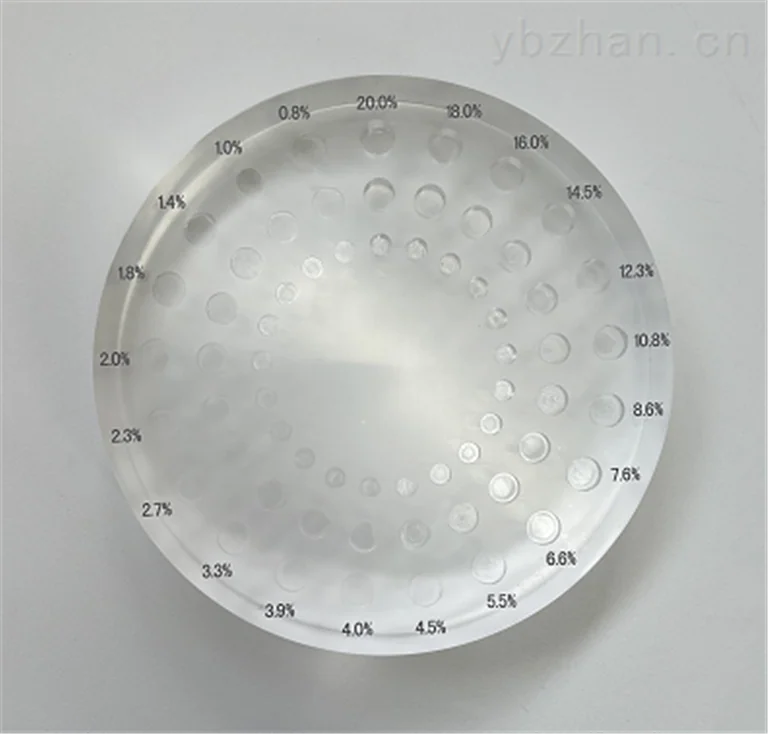

Set the disc in the module. including diameter There are 25 discs each of 13mm, 10mm in diameter, 7mm in diameter, and 4mm in diameter. The approximate contrast produced includes:
20.00% 18.00% 16.00% 14.50% 12.30% 10.80%
8.60% 7.60% 6.60% 5.50% 4.50% 4.00%
3.90% 3.30% 2.70% 2.30% 2.00% 1.80%
1.40% 1.00% 0.8% —— —— ——
•Setting of special observation points
Special observation points are set on the discs with 4.0% contrast and 2.0% contrast to improve work efficiency.
•1mm copper filter plate
produced by filtering X-ray quality that enables the Plexiglas module to produce appropriate contrast
