Detailed introduction
USACIRS 603A head phantom
USACIRS 603AHead phantom product introduction:
CIRS 603AHead phantoms are available fromXMaterials are imaged using X-ray, computed tomography and magnetic resonance imaging techniques. It gives a good description of all tests so farMRIsequence, includingT1weighted,T2weighted,3Dflight time,MPRAGEandCISSsequence.

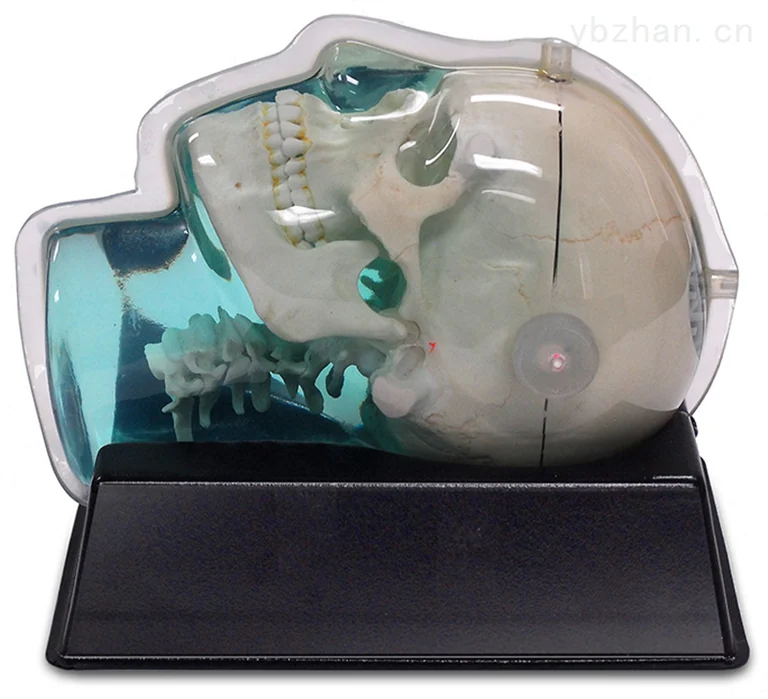

CIRS 603AThe skull of the head phantom is manufactured from a plastic-based tissue substitute, while the stroma and surrounding soft tissue are made from a proprietary water-based polymer. The entire model is housed in a clear vacuum-formed plastic casing to prevent the gel from drying out.
CIRS 603AThe entire skull portion of the skull body of the head phantom is filled with a spacing of1.5cmof3mmOrthogonal 3D mesh of diameter rods. The five extended axes intersect at the reference origin of the grid. The end of each expansion shaft is equipped withCTandMRMarkers allow for accurate laser alignment as well as image registration.
CIRS 603AThe head phantom includes a6.35mm diameter acrylic rods, one for each ear canal3mm diameter and17mm long air gaps.
USACIRS 603AHead phantom product features:
CIRS 603AHead phantom features and benefits
T1，T2and3D TOF MRIThe acquired image is good
CTScanned image is fine
Protective pads for use with stereotaxic frames
Images can be imported into stereotaxic programs
CTScanning can be used to evaluateMRIaccuracy
Materials included
3DAnthropomorphic skull phantom
ABSVacuum formed cradle
5space frame mat
Custom carrying case
User Guide
Warranty information
4Year warranty
USACIRS 603A head phantom product specifications:
product specifications | |
overall size | 32cm×24cm×18cm |
weight | 12pounds (5.5kilogram) |
Material | Skull: plastic bone substitute |
CIRS 603AHead phantom includes | |
QTY | Component Description |
1 | 3DAnthropomorphic Skeleton Ghost |
1 | ABSVacuum formed bracket |
Stereotactic frame pad | |
1 | Customized carrying case |
1 | User Guide |
- | 48Month warranty |
