Detailed introduction

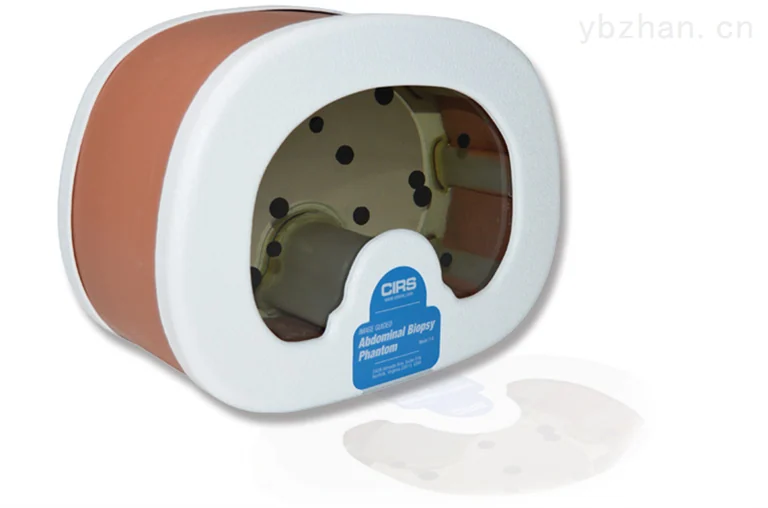

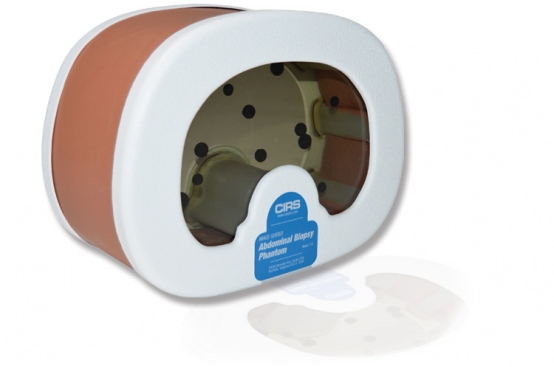

CIRS 071B image-guided abdominal puncture phantom productDetails
The CIRS071B image-guided abdominal puncture phantom contains 12 lesions, 5-12 mm in diameter, placed in groups of three at consistent locations within the phantom. It also includes simulated spine and ribs, as well as "H" markers within the spine to help determine the cephalad side in CT images.
The lesions and spine are visible under ultrasound, CT and MRI. The solid polymer gel background is anechoic and will not leak during puncture.
CIRS071B image-guided abdominal puncture phantom includes foam-lined hard carrying case. For users interested in image fusion research, the phantom-guided abdominal biopsy model can be purchased as a kit to include a serial number-specific CTDICOM data set for reference. CIRS can also offer value-added options and services such as phantom-specific CMMs, accessories for customer-specific registration equipment, and the inclusion of special point markers.
CIRS071B image-guided abdominal puncture phantom features
Improving the performance of freehand abdominal biopsies
Minimal needle tracking – Z-skin fat layer and softer gel provide better self-healing properties
Validation of automated biopsy systems
Suitable for CT, MRI and ultrasound

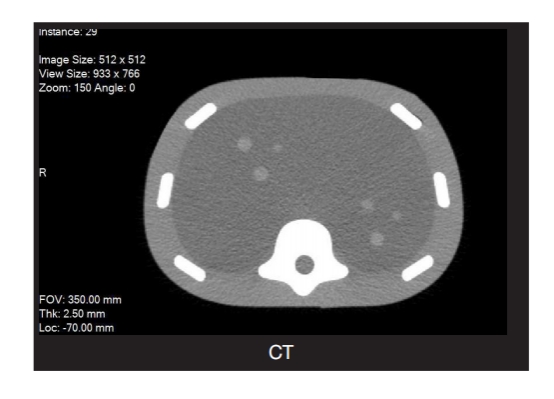

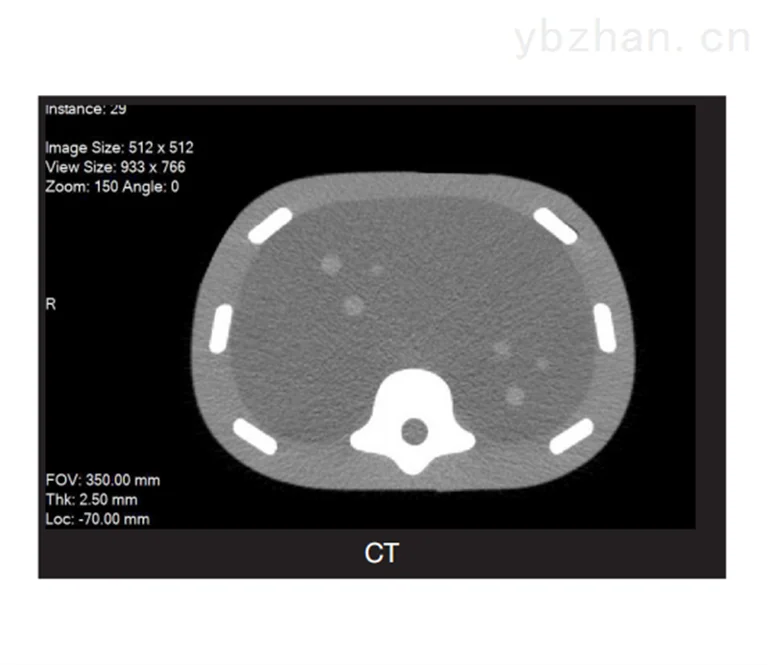

071B CT image

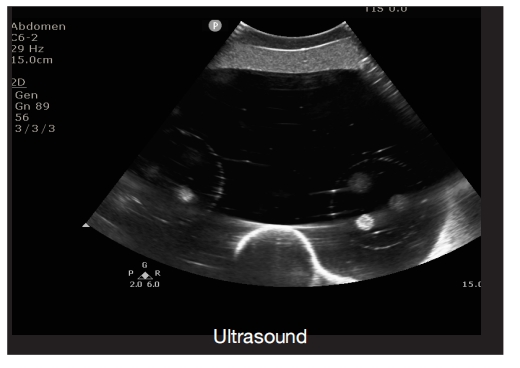

071B Ultrasound image
American CIRS 071B image-guided abdominal biopsy phantom product specifications:
| product specifications | |
| Overall dimensions | 28cmx 20cmx 12.5cm |
| （11“x 7.9”x 4.9“） | |
| phantom weight | 12.1pounds (5.5kilogram) |
| Material | Background: optically clearZerdine ®（1)gel1540meters/sec (nominal) Ribs & Spine: Radio Opaque Epoxy |
| Scan the surface: Z-skin™Elastomer | |
| Crowd: Zerdine, soft tissue | |
| Muscle layer: hyperechoicZerdine ®Gel (ensures the phantom retains its shape over time | |
| Material: Zerdine ®, soft tissue | |
| Diameter: 5 -12mm | |
| Quantity: 12 | |
| masses | Positioning in three groups of four |
| Others | CTvisible“H”mark indicating header/foot direction (made of lead - withMRIcompatible) |
| Model071BincludeImage-Guided Abdominal Biopsy Phantom, user guide and6Month warranty. | |
| optional features | |
| Model035 | CT DICOMdata set (serial number specific,1.5 mmslice thickness@ 120 kvp） |
