American RSD thyroid phantom
Product model:RS-542
Brief description:American RSD phantom, model: RS-542, category: quality control phantom, brand: American RSD1. The thyroid model is an integral part of the whole-body model for nuclear medicine images and can be provided separately (with or without head processing available). 2. The thyroid model consists of a cervical vertebra, a hollow thyroid capsule with injection and evacuation ports, and a protective cover made of tissue-equivalent material. 3. Components designed for quick removal of cover plate and thyroid gland, quick filling with isotope solution and equally quick reassembly.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES- Quality control of imaging diagnosis and treatment: the application value of dose area product instrument
- Do you know how to use nuclear radiation detectors?
- Application of X-ray machine comprehensive tester in medical equipment upgrading and transformation
- Thermoluminescent personal dosimeters can be used in areas such as environmental dose monitoring
- Long pole radiation meter is an important radiation monitoring tool
- This knowledge of CT dose detection phantom is worth learning
- Basic requirements for maintenance and upkeep of X-ray machine comprehensive tester
- Surface contamination detector: Analysis on the application of important auxiliary equipment in radiation environment monitoring
- When choosing an explosion-proof radiation measuring instrument suitable for your own use, you need to consider these aspects
- Online radiation alarm is an indispensable part of the modern radiation safety management system
Detailed introduction

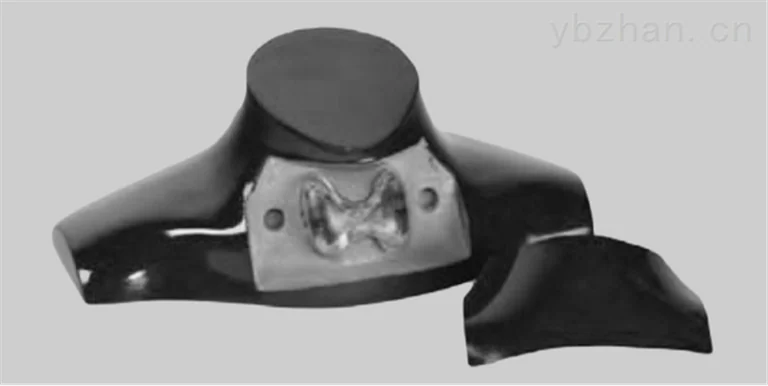

USARSD RS-542 Thyroid Phantom
Overview
Thyroid phantom for nuclear medicine imaging
Experimental model of the human thyroid organ for research,
1. The thyroid model is an integral part of the whole body model for nuclear medicine images and can be provided separately (with or without head processing available).
2. The thyroid model consists of a cervical vertebra, a hollow thyroid capsule with injection and evacuation ports, and a protective cover made of tissue-equivalent material.。
3. Components designed for quick removal of cover plate and thyroid gland, quick filling with isotope solution and equally quick reassembly. Allow the use of iodine solvents with shorter half-lives
The RSD RS-542 Thyroid Phantom is an integral part of the Fission-Product Phantom, but it is also available separately (with or without a head). This model has the same silhouette as the full Fission-Product Phantom.

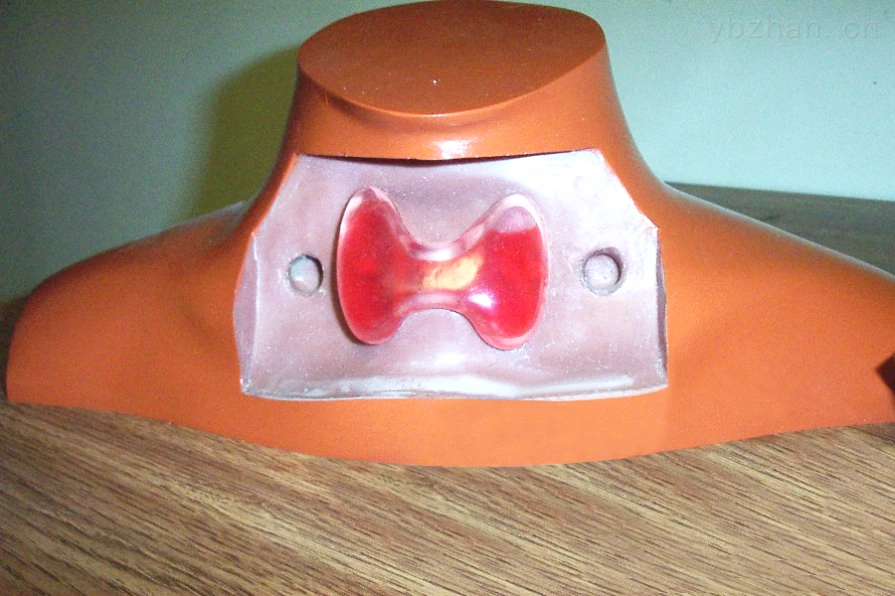

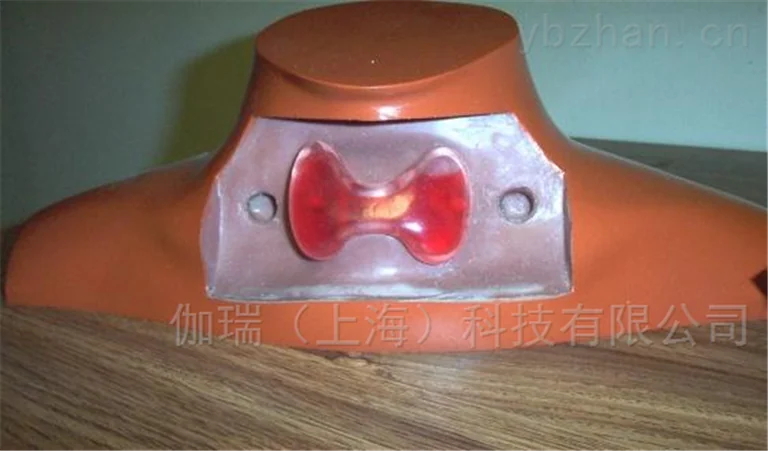

The Thyroid Phantom consists of a neck with corresponding "Superhuman Skeleton" vertebrae, a hollow thyroid gland with filling and irrigation ports, and a front cover of tissue-equivalent phantom material.
The assembly is designed for quick removal of the cover plate and thyroid gland, quick filling with isotope solution and equally quick reassembly. This allows the use of iodine with a very short half-life. Parts of the clavicle and sternum are included to further enhance the realism of the phantom.
RSD often uses isotopes to create mobile organs to meet the user's needs. Movable capsules can be used to fit into the mesh holes, or empty capsules can be provided to be filled by the user. Isotopes are typically received as calibration solutions and are traceable to NIST. Organ loading was controlled by micropipetting aliquots from the calibration solution. Uranium and plutonium can be traced by mass to NIST. Other isotopes can often be tracked by activity.
Some isotopes are produced only at intervals throughout the year, so deliveries are subject to availability. In some cases, calibration costs from government sources are subject to large fluctuations.
