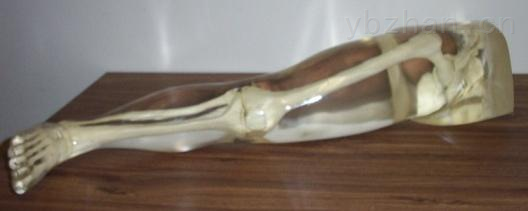

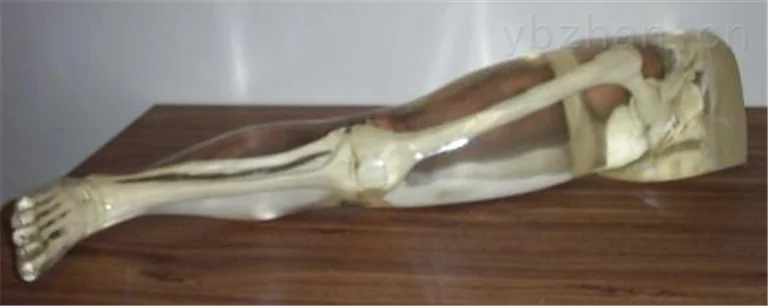

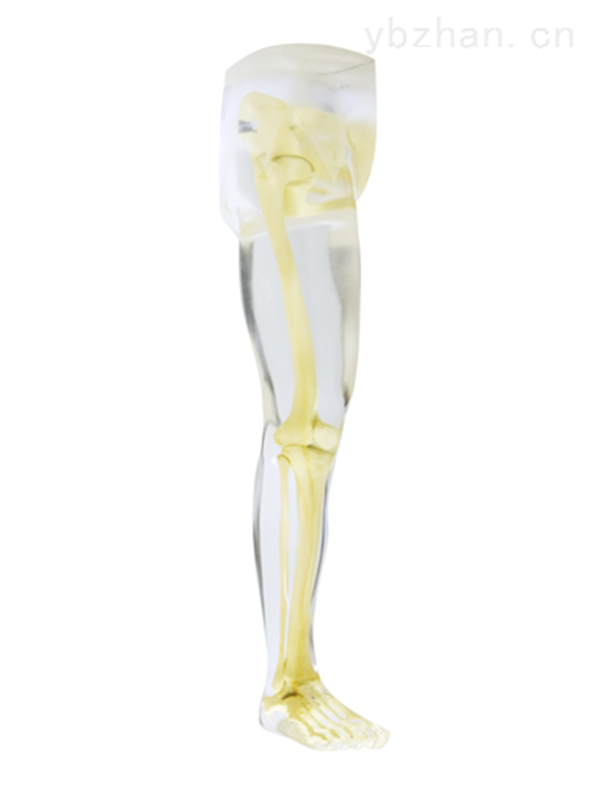

American RSD phantom complete thigh and hip joint model phantom

American RSD phantom RS-123T complete thigh and hip joint model phantom

Overview

American RSD phantom RS-123T complete thigh and hip joint model phantomAvailable in opaque or transparent material.

USARSDsimulateHuman body part phantom, applied to the entireradiationfield. These skeletal sections are embedded in anatomically accurate tissue equivalent materials：

Eliminate unnecessary radiation exposure to human subjects.

Teach students anatomy and positioning.

Can be used as qualitativeQA standards.

Ideal for technical chart development.

USARSD human body part phantom, RSD RS-123 legsMotif,RSD RS-123Tlegs/hip jointMesh provides transparent and opaque models.

HavePIXY's anatomically and radiofrequency-fidelity cross-sectional phantoms are widely used in teaching/training and have many other applications. They represent the average male (5 feet 9 inches tall, 162 pounds). They are durable, easy to transport and virtually unbreakable.

Cross-sectional phantoms are not a substitute for simple geometric phantoms for evaluating individual characteristics of imaging systems, but they provide a means for comprehensive evaluation of imaging systems and imaging techniques under realistic conditions, similar to patients. Typical applications andSame as PIXY.

simulatedX-ray cross-section models consist of simulated bones embedded in clear non-granular plastic or opaque isocyanate rubber. The material has the same properties of absorbing and secondary emitting radiation as living tissue. They are uniform and cast shadows similar to those produced by tissue. There are no spongy parts in the phantom. All bone marrow is simulated using tissue-equivalent materials, which allows critical detail studies of bone structure and sharpness comparisons using X-rays.

HavePIXY's anatomical and radio-fidelity cross-sectional phantoms are widely used for teaching/training among many other applications. They represent an average male height of 5 feet 9 inches (175 cm) and a weight of 162 pounds (74 kg). They are durable, easy to transport and shatterproof.

Anthropomorphic phantoms are ideal patient surrogates for teaching/Train radiographers.

Allow unlimited repetition of most views...Patients cannot be used for this...

Demonstrate the impact of changing technical factors......

Provide effective feedback to assess student performance...

Because the same phantom can be used year after year, performance specifications can be derived to guide training procedures......

human skeletal structure andRSD skeletons are more realistically duplicated than cadaver skeletons.

Soft tissue molds and skeleton molds are matched for anatomical fidelity.

The RSD skeleton complies with the radiation interaction properties of cortical and cancellous bone standardized by the International Commission on Radiation Units and Measurements.

...many cadaveric human skeletons - especially when they are ready to dry out。

 Model description
