Detailed introduction

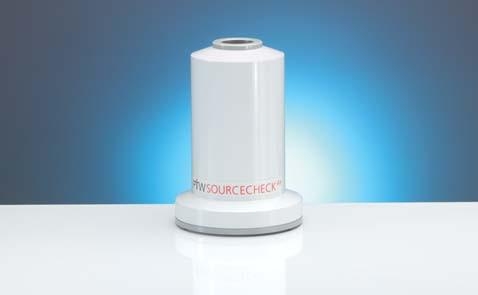

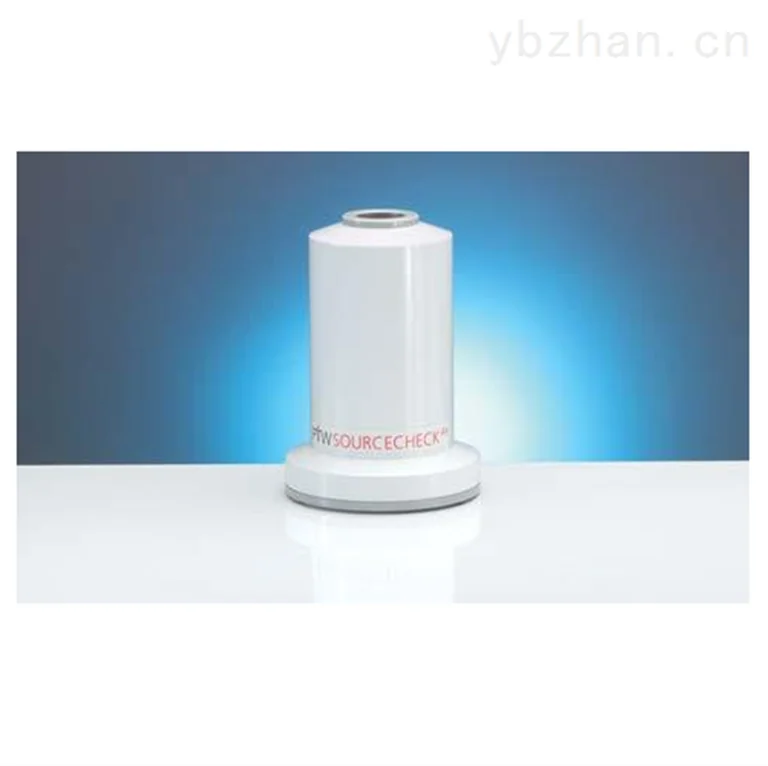

SOURCECHECK type Well type ionization chamber
Used for brachytherapy source intensity measurement
Well type ionization chamber
Features
Measure low-energy seed sources and high-energy afterload sources
with complete4πAll sources for geometric measurements
Adapters available for all commercial aftermarket source devices and seed sources
User-friendly accessories for quick and safe handling
withPTWHigh precision dosimeter compatible
AvailableIr-192, Co-60 and I-125 Calibration
The SOURCECHECK 4π Well type ionization chamber is suitable for various short distances
Source intensity measurement of radiotherapy sources. International standards require measurement of radiation
Brachytherapy source. forHDRPost-installed source, required after replacing the source
Conduct acceptance testing and post-stability checks. For permanent implants
source of seeds, a typical quality assurance method is to test the delivered batches
Measure a certain amount of seed source.
Various adapters available for all types of aftermarket sources
Tube, seed source and chain source. radioactive inspection sourceT48010Can be used to stabilize
Sexual examination. Ionization chambers can targetIr-192，Co-60andI-125Carry out schooling
Accurate.
Ordering information
TN33005 SOURCECHECK 4π, Connect the system BNT TW33005
SOURCECHECK 4π, Connect the system TNC TM33005
SOURCECHECK 4π, Connect the system M
Optional
T48010 Check device90-Sr, point source
T33005.1.020SOURCECHECKRadioactive inspection device adapter
E21272 SOURCECHECK Calibration Ir-192
E21271 SOURCECHECK Calibration I-125
Post-installed source tubes, granular sources and chain sources can be provided upon request.
