Detailed introduction
CBCT breast performance testing phantom KR1106
Overview
CBCT breast performance testing phantom KR1105 is used for testing breast equipment quality control.
 |
Technical parameters
• Pattern body:

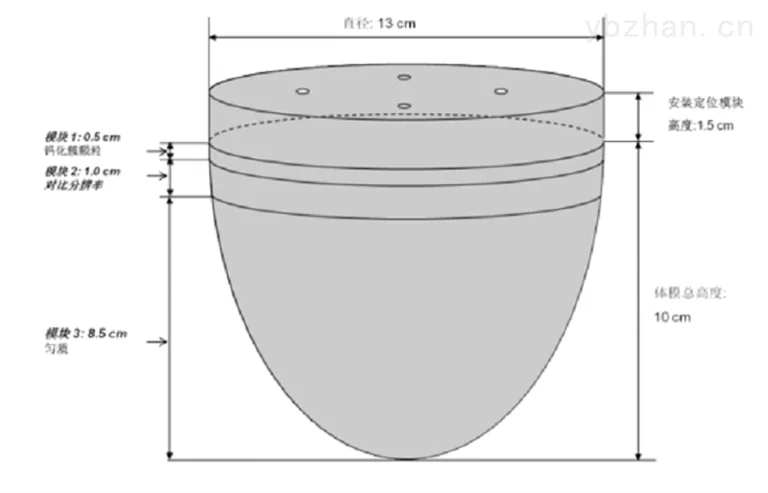

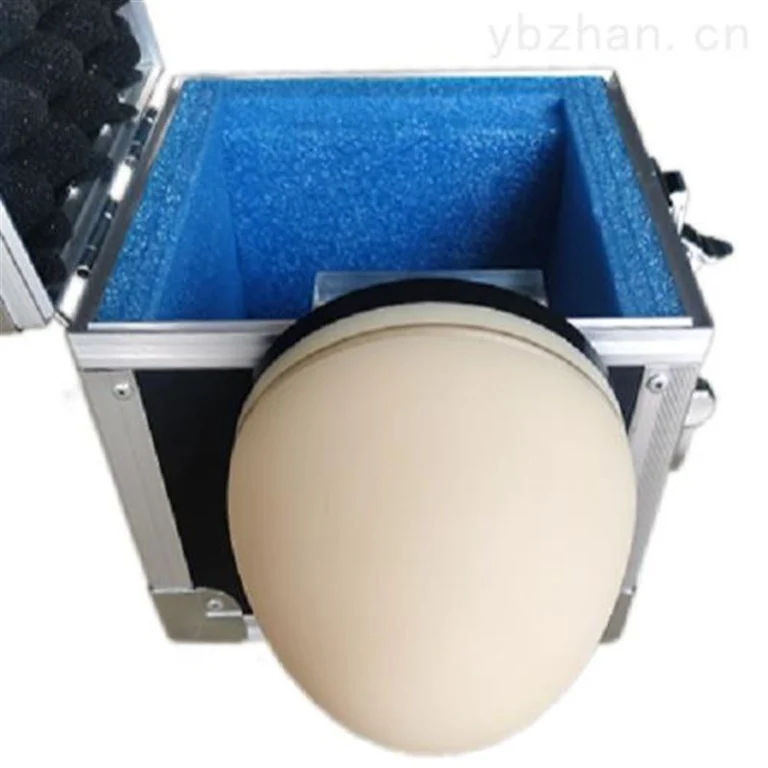

From the diameter to It is composed of a 13cm solid water cone body with a height of 10.5cm; it contains 3 sets of modules and an aluminum box is used as a fixed hanging base. The main body of the phantom is hung on the edge of the aluminum box and leveled with water for scanning and detection.
A high contrast resolution module | B Low contrast resolution module |

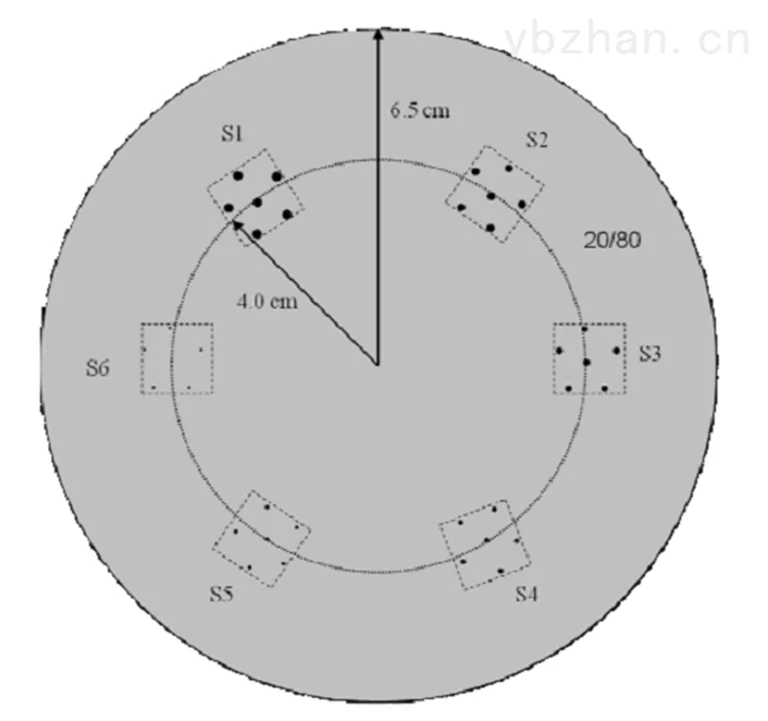

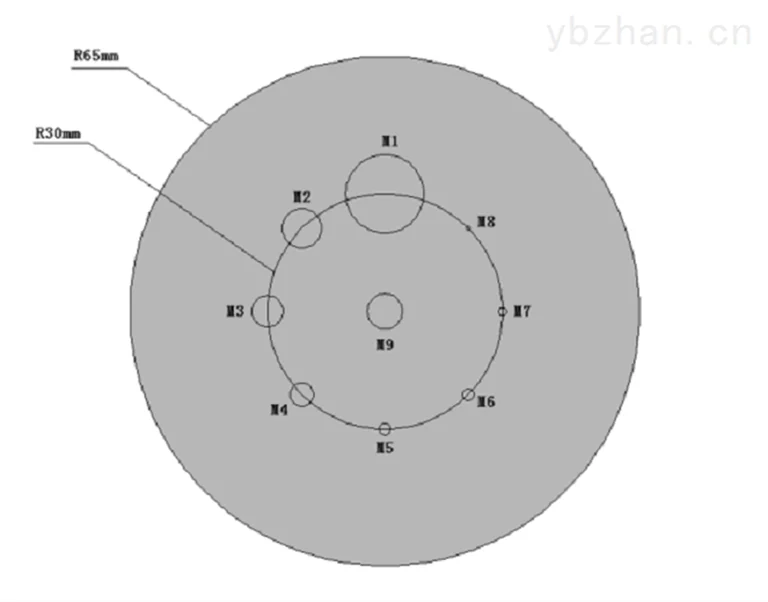

①The diameter is 13cm, the height is 0.5Cm; the 80mm diameter section has 6 groups of cylindrical high-component materials with different diameters composed of test cards; ② Diameter 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, height 0.5cm, composed of high-density materials; | ① The diameter is 13cm, the height is 1cm; the 60mm diameter section has 9 groups of cylindrical low-component materials with different diameters to form a low-contrast module; ② Diameter 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 9mm, 15mm, height 1cm, composed of high-density materials; |
|
|
• Vertebral homogeneous solid water: diameter13cm, height 8.5cm.
