Detailed introduction

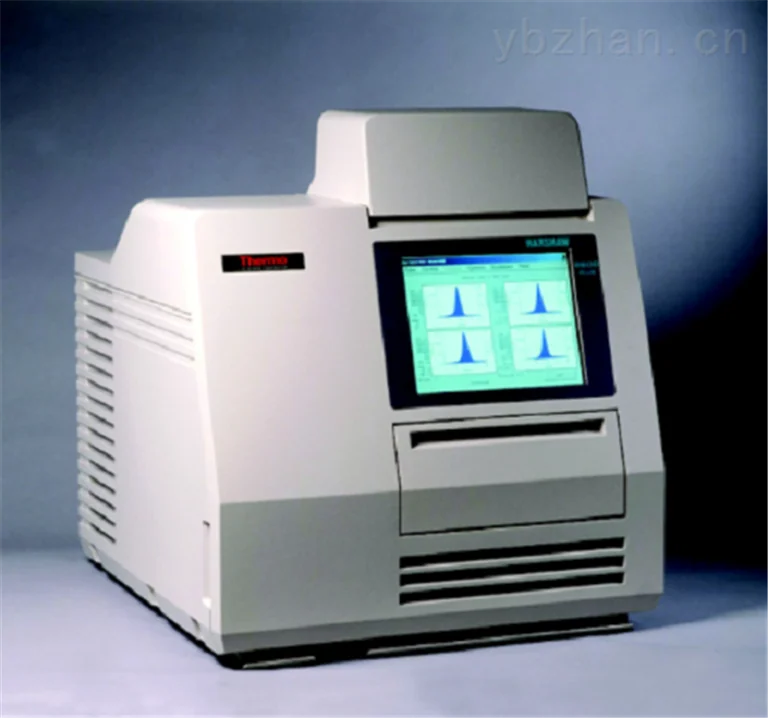

Harshaw TLD6600 fully automatic thermoluminescence measurementworkstation
Product introduction:
The Harshaw6600 TLD reader is a fully automatic reader for personal dose cards and acral dose cards, and can load 200 dose cards and 800 acral dose cards at one time. It is especially suitable for scientific research and medium-scale dose measurement.
Product features:
l Has been widely used in many fields around the world
l One-stop service
l --β, γ and neutron dose
l --Acral dose
l --Environmental dose
l Automate measurements and save costs
l Built-in scale source
l --90Sr/90Y
l --Better implementation of quality control
l satisfyInternational standards such as IEC, ISO and ANSI
l Automatic executionQC testing
l Color LCD display
l Not sensitive to environmental changes such as light
Harshaw TLD6600 fully automatic thermoluminescence measurement Product application:
l Environmental monitoring
l Nuclear power plant area monitoring
l Personal dose monitoring
l Neutron monitoring
Technical parameters:
| energy range | •Photon>10 keV•Neutrons: Thermal to fast neutrons •β>200 keV |
| line sex | LiF:Mg,Ti; <5%, 10 μGy ~ 1 Gy |
| Repeatability | 10The deviation of secondary readings is less than2%，1 mGy137Cs |
| Sensitivity | 500The deviation of the reading results is less than<10% |
| Consistency | The deviation of dosage elements in each batch does not exceed30% (Does not use component correction factors) |
| Dual photomultiplier tube | |
| Measuring range | 7orders of magnitude |
| Capacity quantity | 200film |
| Measurement speed | (LiF:Mg,Ti)4-element, 70 pieces/hour |
| knowledge Don't | barcode |
| Stability | Based on continuous10Results of measurements |
| Warm up time | <20 minutes |
| dark current | <1μGy ，137Cs |
| Reference light source | CaF2:Eu（14C） |
| add hot | N2 |
| electricity source | 100, 120, 220, 240 volts ±10%, 50/60Hz. |
| Gong consume | 180 VA |
| gas consumption | free：28 l/h；maximum 850 l/h |
| working temperature | 0°C ~ 40°C |
| Storage temperature | -10°C ~ 60°C |
| heavy quantity | 70 kg |
| ruler inch | 56cm W x 58 cm D x 61 cm H |
