Detailed introduction

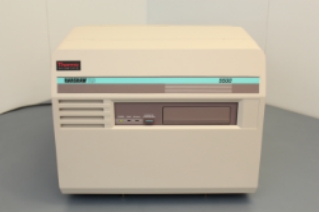

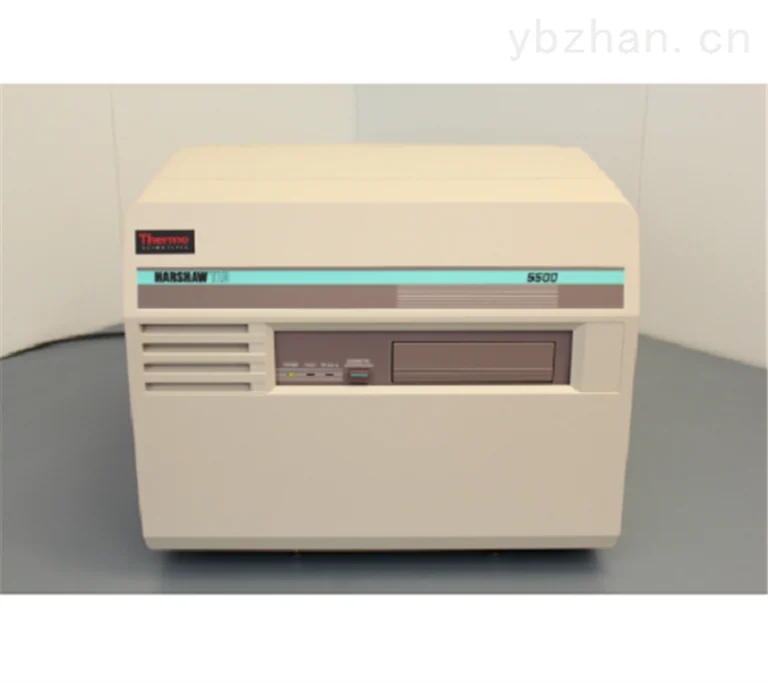

Harshaw TLD 5500 Dosimeter Automatic Reader
Product introduction:
The Harshaw5500 TLD reader is widely used. It adopts hot gas heating method and can automatically operate 50 dose elements at a time, which greatly improves work efficiency.
Product features:
l ThermoelectricPTM cooler
l
Great gain stability, measurement quality assurance
l Automatic background deduction technology
l Easy to operate, service and maintain
l Software selectable calibration
l Can be read automatically50 dosimeters
l Linear, programmable heating curve
l Contains heating and annealing cycles
l Use gas to heat in all directions600℃
l 70-year collection range
Product application:
l Environmental monitoring
l Nuclear power plant area monitoring
l Personal dose monitoring
l Neutron monitoring
Technical parameters:
linear deviation | ＜1% |
Stability | less than1mGydose continuous10times |
standard deviation of measurement | ＜0.5% |
dark current | ＜50mGy（Cs137） |
light wave | 470nmPeak position |
time/Temperature curve | TTP |
Repeatability | （±1℃） |
Nitrogen | 2Bar |
Working environment temperature range | （0-40℃） |
