Detailed introduction

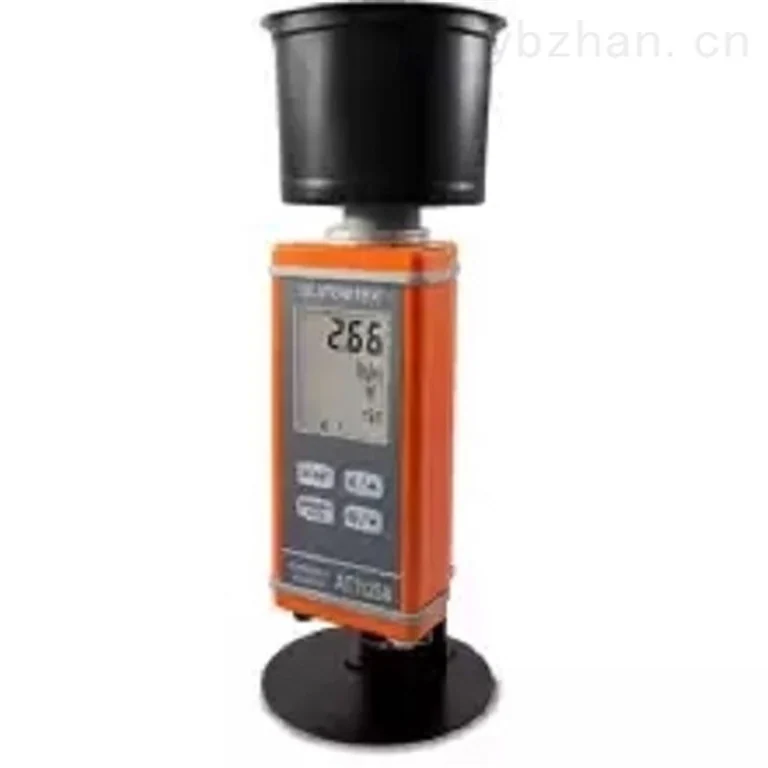

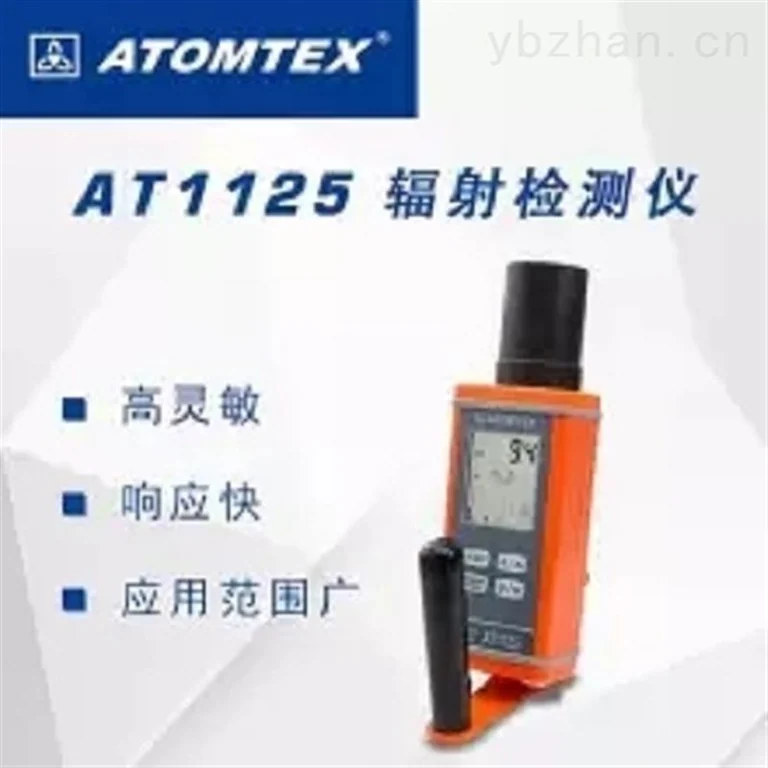

AT1125 radiation detector
Product introduction
l Portable High Sensitivity Radiation Monitor, Search and Detectiongamma radiation source
l Measurement environmentGamma radiation dose rate equivalent; surface adhesion density of α and β pollutants; environmental sampling 137Cs specific activity
l AT1125 and AT1125A radiation detectors are used to search, detect and locate gamma radiation sources
l The detection environment is based on background levelsgamma radiation dose rate equivalent
l Use this detectorNaI scintillation detector, therefore has high sensitivity, can quickly respond to subtle changes in radiation background and provide accurate dose rate detection
l improvedThe "dose spectrometer" function enables this detector to measure gamma radiation in the energy range of 0.05 - 3MeV
l In addition to the NaI detector, AT1125A also has a GM tube, which greatly expands the detection range of environmental gamma radiation dose rate equivalents.
l This detector can also be connected to an external smart probeBDPS-02, used to detect the αβ radiation flux density on the surface of pollutants
l It can also detect the environmentX-ray, gamma radiation dose rate equivalent and dose equivalent. This detector can also choose the 137Cs specific activity detection mode.
l For testing liquid and particulate samples collected in the field137Cs specific activity
l Standard configuration: radiation detector,AC adapter, handle, leather case, instrument bag, operating guide
Product features
l Multifunctional and high sensitivity
l Rapid response to radiation background changes
l Adaptable to a wide range of temperature conditions for field operations (IP54）
l Built-inLED stabilized system without reference source
l 256 channel MCA
l Special large screen backlightLCD
l Alarm when limit value is exceeded
l Can store in memory up to100 test results
l Record and transfer test results to computer
l Specific activity can be measured under field conditions
l Three power supply modes
l Scrap Metal Radiation Monitoring
l Used in searching, detecting and locating radiation sources, scrap metal radiation monitoring, environmental radiation monitoring
l Can be used in radioactivity monitoring in industrial enterprises
l Can be applied to field agricultural products137Cs radioactivity control
Technical parameters
Test object | 137Cs sensitivity | ||||
AT1125,AT1125A | NaI(TI) - 25×40 mm | AT1125 AT1125A | 350 cps/μSv ?h-1 | ||
AT1125A | Built-inG-M tube | BDPS-02 | 6.6 cps/μSv ?h-1 | ||
BDPS-02 | G-M end-window counter | 137Cs specific activity measurement range | |||
Measuring range | With protective unit | 20 - 105 Bq/kg | |||
environmentGamma radiation dose equivalent AT1125 | 10 nSv - 10 mSv | without protection unit | 50 - 105 Bq/kg | ||
AT1125A | 10 nSv - 10 Sv | 137Cs specific activity measurement error | ±20% | ||
BDPS-02 | 0.1 Sv - 1 Sv | 137Cs source detection time (10 kBq 7 cm) | less than2s | ||
environmentX-ray, gamma radiation dose rate equivalent | Operating mode setting time | 1 min | |||
AT1125 | 30 nSv/h - 300 ?Sv/h | continuous operation time | |||
AT1125A | 30 nSv/h - 100 mSv/h | AC or DC | 24h | ||
BDPS-02. | 0.1 Sv/h - 30 mSv/h | Built-in battery | 24h | ||
α-ray flux density | BDPS-02：5 - 106part./(min·cm2) | Operating temperature range | -20 - +50℃ | ||
β-ray flux density | BDPS-02：6 - 106part./(min·cm2) | Compensation error over operating temperature range | ±10 % | ||
Dose and dose rate measurement errors | relative humidity(+ 35°C) | 90 % | |||
AT1125 、AT1125A | ±15% | Power requirements | |||
BDPS-02 | ±20% | Built-in battery | 6V | ||
X-ray, gamma radiation energy range | alternating current(50Hz) | 220V | |||
AT1125 AT1125A | 0.05 –3MeV | direct current | 12V | ||
BDPS-02. | 0.02 –3MeV | weight | |||
Alpha ray energy range | BDPS-02：4 –7 MeV | AT1125 AT1125A | 1.0 kg | ||
Beta ray energy range | . BDPS-02：155 KeV –3.5 MeV | BDPS-02 | 0.3 kg | ||
energy response difference | Protection unit | 17 0 kg | |||
AT1125 AT1125A | ±15% | Size | |||
BDPS-02 | ±30% | AT1125 AT1125A | 85×258×67 mm | ||
Protection level | IP54 | BDPS-02 | 138×86×60 mm | ||
Protection unit | 190×363 mm | ||||
