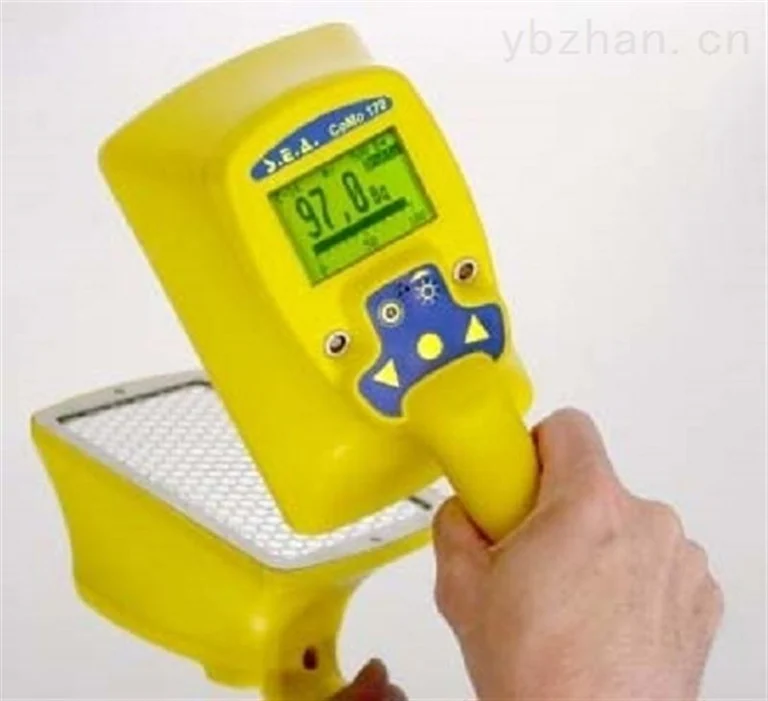

COMO170 portable surface contamination meter
Product introduction:
l Innovative detector technology with plastic scintillator probe
l There are no inflation or gas flow detectors. Therefore, no gas needs to be supplied. Avoid the expensive price of inflatable detectors.
l Measure with a probeSurface contamination of α, β and γ without the need to replace the probe
l You can also choose to measureAlpha and beta/gamma surface contamination
l Automatic measurement, in the presence ofAutomatic reporting of alpha radiation
l Available atNo restrictions on use at -10℃
l Light weight, only approx.750g
l Ergonomic design, high brightnessLCD display
l Nuclide activity measurement (reference nuclide)
l Measurements in pulse, activity or area-based activity
l A password can be set to restrict access to settings and measured value parameters
l Custom measurement time
l 20 freely programmable nuclide libraries
l Complete scale menu
l Combined with optional area monitor for fixed surface contamination monitor
l Can be connected to an external probe, such as using an automatic recognition probe to measure dose rate
l Can store750 data, and has printing function. (External probes also have this function)
Product features:
l New plastic scintillator detector, no need to inflate
l Can measure simultaneouslyα and β/γ, no additional probe required
l β/γ background monitoring and compensation, alarm threshold continuously settable
l High precision, can be stored750 sets of measurement data and can be transferred to PC
l 25 freely editable nuclide libraries, automatic background deduction
l large areaLED display, can automatically sense and automatically turn on the background light in a dark environment
l Measurement time and lighting time are adjustable
l Large detection area:CoMo170：170cm2；CoMo300：300cm2
l User friendly interface, just5-key operation, display unit cps, Bq or Bq/cm2
l Optional wall fixture for detecting hand contamination
l Optional software to read measurement data
l Optional wiping accessories can be used as wiping detection
l Optional surface measurement auxiliary device can be used for ground detection
l Lightweight, password-protected advanced menu
detector | withPlastic scintillator with ZnS layer, probe area 170cm2 |
Single Bit | C/s, Bq or Bq/cm2 |
threshold value | The thresholds of α and β can be programmed in c/s, Bq or Bq/cm2 units. |
efficiency(2π) | Cs-137，35%；Am-241，22%；U-238，26% |
memory | 750 data, and has printing function (with time recording) |
show indicate | large sizeLCD display, with backlight, 128×64 pixels |
ruler inch | 280×125×135mm3 (with handle) |
warm degree | ﹣10℃～﹢40℃ |
electricity source | two sections3V battery or NiMH rechargeable battery |
time room | 30～35 hours |
heavy quantity | 750g |
alarm | Customizable for different nuclides |
Measurement data display | Usecpm or Bq or Bq/cm2 for nuclides and (n/u/m) Sv/h for external detectors |
Measurement time | Continuously, in measuring time mode or in fixed mode with definable seconds |
·Shell | Ergonomic plastic housing |
special model | CoMo 170F is specially designed for firefighters K/FW/IdF 110213 CoMo 170D adds a GM tube counter on the front surface |
Instrument size | 280×125×135mm (L(including handle)×W×H) |
Detection efficiency | (Detection area100 cm2） |
l Optional external probes, such as dose rate probes or pipeline pollution measurement, automatically identify probe types
l Other optional accessories (test source, carrying case……）
