UNIDOS Tango Intelligent Reference Dosimeter

UNIDOS TangoIntelligent reference dosimeter

Smart

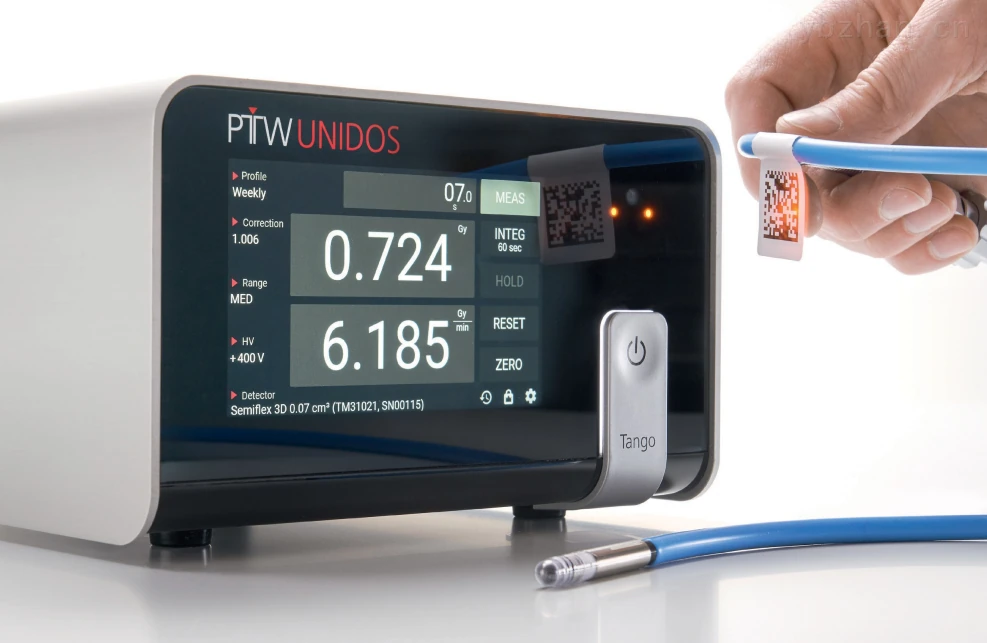

UNIDOS Tango Use the detector identification function to automatically manage and identify detectors. By scanning the calibration certificate or the QR code on the detector label with the built-in camera, a new detector will be added to the detector library or an accurate detector will be selected for measurement.

Intelligent Detector Identification is ideal for those with multiple dosimeters andThe /or detector section is very useful as it increases efficiency and reduces the possibility of input errors.

Connection method

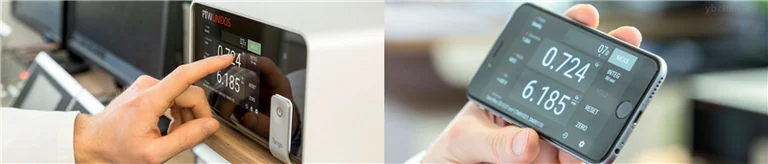

Touch screen, network cable connection orWiFi? Whatever you want.UNIDOS Tango It is a stand-alone dosimeter with intuitive touch screen operation and remote control support. Its built-in web server can be accessed from any WiFi-enabled smart device, such as a smartphone or tablet. As a smart electrometer with multiple connectivity options,UNIDOS Tango The operation is very simple and flexible.

 Secondary standard electrometer

UNIDOS Tango It is a substandard electrometer that meets and exceeds the performance requirements of both IEC and IPEM. new typeUNIDOS TangoHas the widest measurement range and resolution available (0.1 fA), is your tool of choice for high-precision measurements such as Ono dosimetry.

 Automation

Use user-specific documentation to save time and improve measurement consistency. Favorite device settings and detector parameters for frequent or specific measurement tasks, such as the selected measurement detector, user-defined calibration factors and measurement ranges, can be saved as password-protected exclusive files.

 Comprehensive

Measurement readings are automatically saved to memory and can be viewed quickly. accessible to the nearest 50 measurements and quick calculation of mean and standard deviation. A comprehensive detector database and ready-to-use detector templates allow you to easily manage up to 100 detectors and their calibration data. Use optional BeamDose software to export measurement results to Track-it data management software for documentation and stability monitoring.

Intuitive

UNIDOS Tango The outstanding 5-inch capacitive touch screen provides a simple, easy-to-navigate multi-lingual user interface supporting up to 9 languages, providing quick access to all relevant settings with one finger operation. Viewed from any angle, measurement readings and other important data are clearly visible.

Technical specifications

Completely consistent withdownStandard reference grade dosimeter:

According toIEC 60731Standard radiation therapy dosimeter

Function According toIEC 61674 Standard Diagnostic Radiology Doseplan

According toBrachytherapy dosimeter according to IEC 62467-1 standard

According toIPEM* JSMP standard secondary standard dosimeter (needs to be calibrated in Japan)

channel 1

show 5-inch capacitive touch display，WVGA (800 x 480 Pixel), backlight

Supported languages Chinese, German, English, Spanish, Italian, French, Portugueselanguage, Russian, Japanese

QR code reading QR code scanner*

connect LAN, TCP/IP, 100 Mbit/s, IPv4/6

WLAN access point 802.11ac/b/g/n, WPA2, up to 800 Mbit/s* USB 2.0 Host, Type A (700 mA)

Size 201 mm (W) x 120 mm (H) x 253 (D) mm (includes legs)

weight 3 kg

Power supply (100 – 240) V, (50/60) Hz

Measuring range (according to IEC 60731, reference grade)

current 400 fA … 2.6 µA

charge 4 pC … 9.3 C

resolution

operating mode MEAS: Start manually/stop – continuous measurement

AutoMEAS: Start automatically/stop

Measurements are triggered by radiation, calculate dose from all recorded dataAutoMEAS & RESET: Automatic start with reset function/stopMeasurements are triggered by radiation and dose is calculated from the last measurement

INTEG: Cumulative dose over a predefined time interval

Repeatability < ± 0.25 % (£ ± 0.25 % IEC 60731)

long term stabilitysex < ± 0.1 % (£ ± 0.5 % more than one year, IEC 60731)

response time < 1.5 s (< 3 s (90 % response), IEC 60731)

nonlinear £ ± 0.25 % (£ ± 0.5 % IEC 60731)

Zero drift £ ± 0.25 % (£ ± 0.5 % IEC 60731)

bias voltage ± 400 V (± 0.5 V) @ 1 V interval

Zero adjustment 85 s

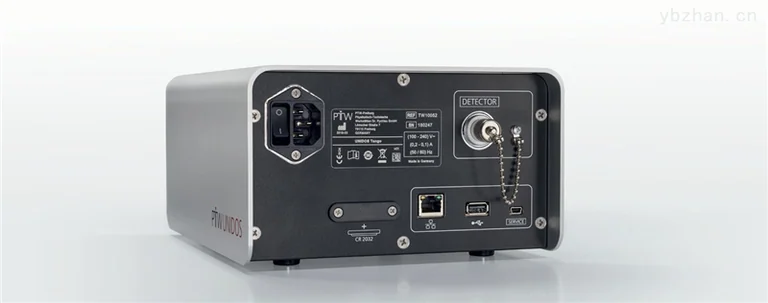

Configuration UNIDOS Tango Dosimeter, with M connector (order number L981629)，BNT connector (Order No. L981630) orTNC Companypick updevice(Order No. L981631)

Configuration contains Includes: stand,LAN/Ethernet cable, power cord、USB s line for field firmware updates
