Detailed introduction

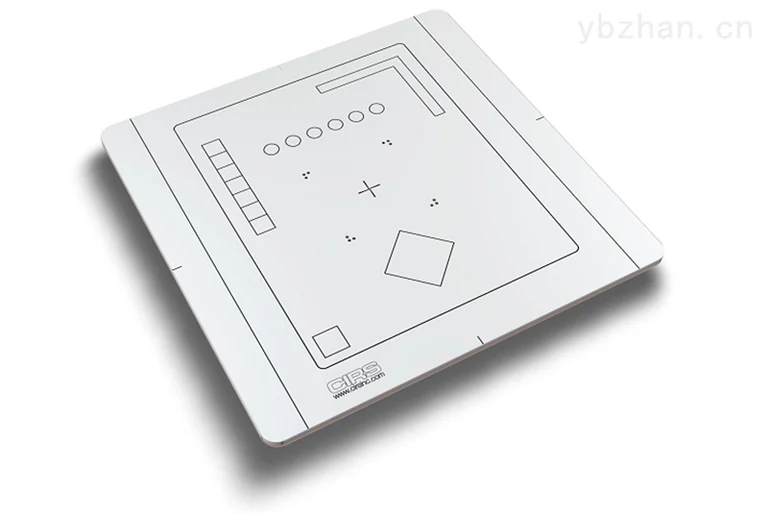

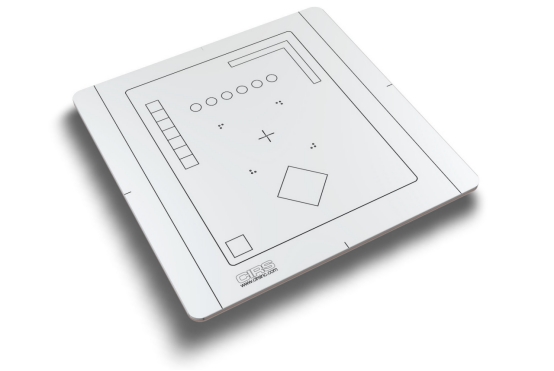

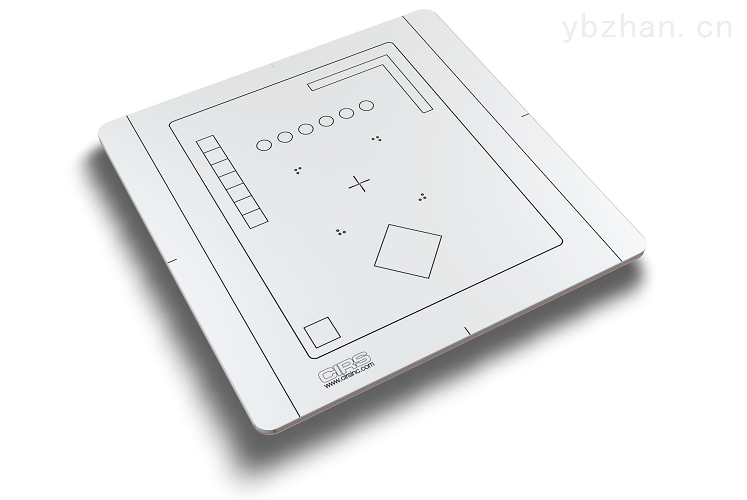

USACIRS 139701 DR QC phantom
USAIntroduction to CIRS 139701 DR QC phantom:
USAThe CIRS DR QC phantom allows comprehensive quality assurance testing of DR detectors and associated software.
The model enables seven quality assurance assessments for monthly and semi-annual evaluations, including exposure linearity and sensitivity, high- and low-contrast reproducibility, artifact and residual image detection, image resolution, collimator beam alignment, measurement tool accuracy and display jitterQA testing.
The CIRS 139701 DR QC phantom measures 17" x 17" x 0.5", allowing for quick inspection of 14" x 17" or 17" x 17" DR systems. Lead content has been minimized to comply with European regulations.
The CIRS 139701 DR QC phantom comes with standard recommended test parameters, QC reporting form, soft carrying case and 48-month warranty.
USACIRS 139701 DR QC phantom features:
Allow testing14"x17" (35 x 43 cm) and 17"x17" (35 x 35 cm) DR systems
Includes test subjects for seven quality assurance tests
Comply with German standardsDIN 6868-58 and DIN 6868-13
containsDIN Type 23 Linepair target
Reduce lead content to comply with European regulations
no moving parts
Provide test parameters andQC report form
extend48 months warranty
*This CIRS 139701 DR QC phantom was developed in collaboration with Del Medical, Bloomingdale, IL.
Recommended test frequency | |
monthly testing | Semi-Annual Test Test |
Exposure linearity and sensitivity | Collimator beam alignment |
Track Contrast Reproducibility High and Low Contrast | Accuracy of measuring tools |
Check for artifacts and residual images | Display jitter |
Image resolution | |
USACIRS 139701 DR QC phantom product specifications:
product specifications | |
Overall dimensions | 17“x 17"x~1 / 2“ |
weight | 8pounds |
Material | PMMA, copper, aluminum |
139701Motifs include | |
QTY | Component Description |
1 | DR QC Phantom |
1 | Padded soft bag |
1 | User Guide |
- | 48Month warranty |
