USACIRS 134200 dental oral cavity phantom
Introduction:
USACIRS 134200 Dental Oral Phantom CIRS Phantom for Intraoral Radiological Assessment, Testing and Evaluation (PIRATE) is the reference standard in diagnostic radiology of the jaws. Phantom is designed to assist technical and clinical personnel in selecting, monitoring, training and validating scan parameters common to intraoral radiography procedures and other common dental procedures.

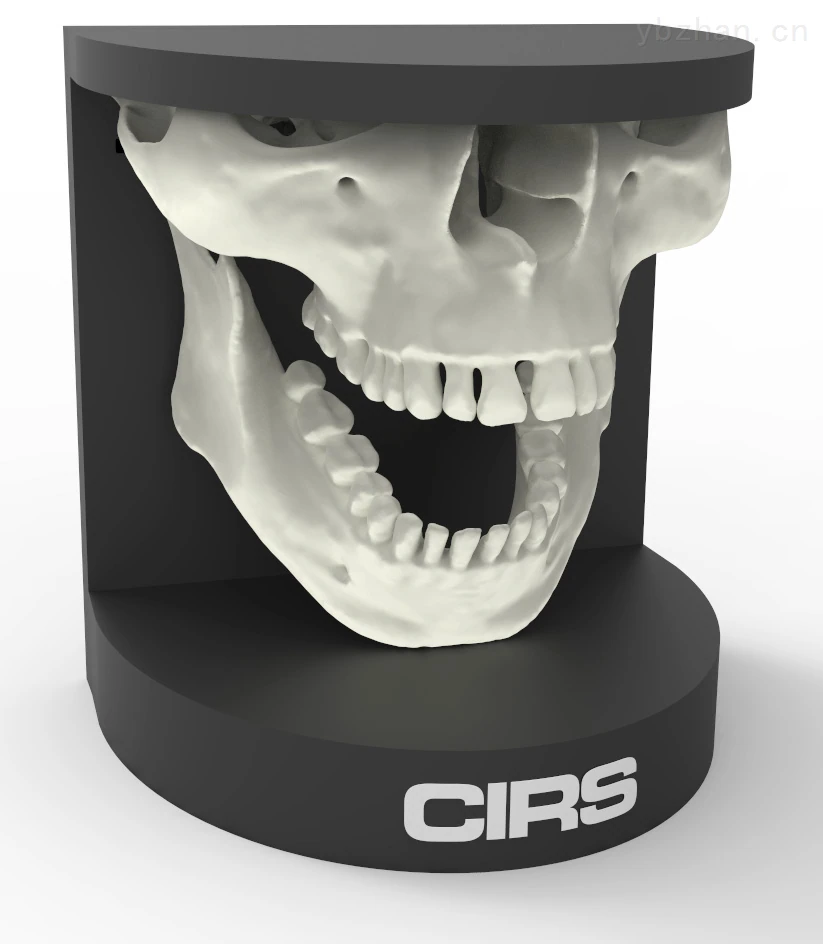

The PIRATE phantom consists of the maxilla, mandible and retaining device. The Phantom can be mounted into an included tripod ball head accessory for positioning flexibility. The maxilla and mandible hinge to allow the dental technician to place a glare film or other intraoral device with a retainer and image the phantom.
Phantom is constructed from a proprietary tissue-equivalent material, manufactured by DentalLinear attenuation of X-rays and other dental imaging procedures simulates reference tissue to within 1%.

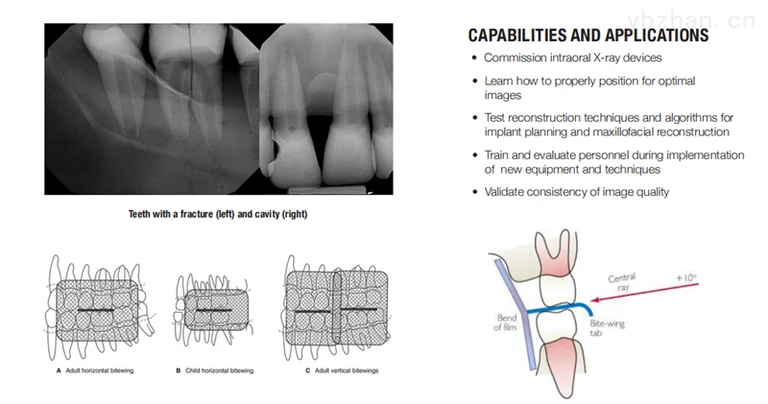

Type 134200 approximates the size and structure of an average male human chin. Phantom features detailed 3D anthropomorphic anatomy including bones, sinuses, maxilla, mandible, mandibular nerve and teeth. The skeleton contains cortical and trabecular separations. Teeth include different dentins, enamel, root canals and crowns. One tooth contains the fracture and the other tooth contains the cavity.
dental phantomFeatures:
Detailed anatomical features
The organizational equivalent is50keV to 25MeV
Functional jaw
The tripod has six degrees of freedom
soft sided suitcase
48 months warranty
IntraoralX-ray radiotherapy equipment
Learn how to position images correctly
Testing reconstruction techniques and algorithms for implant planning and maxillofacial reconstruction
Train and evaluate personnel when implementing new equipment and technology
Verify image quality consistency
dental phantomTechnical parameters:
| product specifications | |
| Approximate size | 17.5cm x 12.0cm x 14.0cm |
| Approximate weight | 2.7 kg (6 lbs) |
| Phantom material | Epoxy resin |
| Model134200 included | |
| Quantity | Description |
| 1 | Intraoral radiology assessment, testing and assessment of phantoms |
| 1 | Tripod with ball head and quick release connector |
| 1 | Soft sided suitcase |
| - | User Guide |
| - | 48 months warranty |
