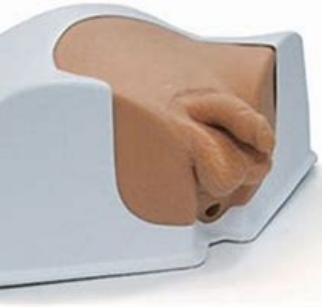

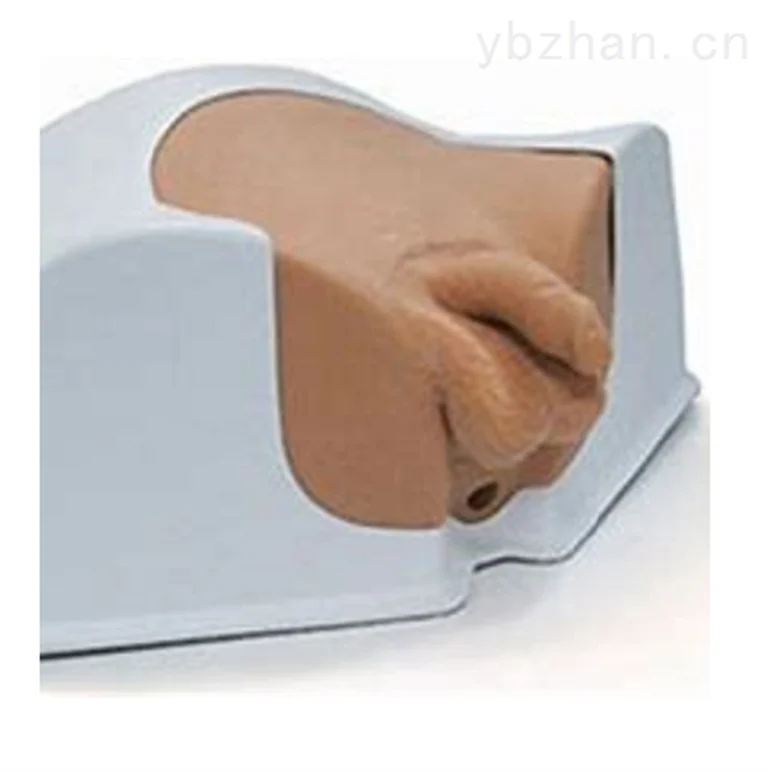

USACIRS 048A male pelvis phantom
Introduction:
USAThe CIRS 048A multimodal male pelvic phantom is designed for realistic abdominal and transrectal ultrasound scanning of the bladder and prostate. The CIRS 048A multimodal male pelvic phantom includes pelvic bones, anechoic bladder, prostate, urethra, seminal vesicles and rectum enclosed in a pelvis-shaped plastic shell with Z-Skin™ membrane. Z-Skin's self-healing properties make the design ideal for biopsies and other image-guided procedure presentations.
USAThe CIRS 048A multimodal male pelvic phantom is made from materials that can be imaged under ultrasound, MRI and CT, allowing the phantom to be used in applications requiring multiple modalities, such as radiation therapy planning. The phantom has certified prostate and bladder volumes, allowing assessment of volume measurement accuracy. Modifications can be made, such as permanently embedded brachytherapy "virtual" seeds or gold fiducial markers for demonstrating target visualization.
Each model comes with a certificate of compliance.
USACIRS 048A male pelvis phantom features:
ultrasound,MRI and CT images
Assessing prostate and bladder volume measurement accuracy
Demonstrate biopsy techniques and other image-guided procedures
USACIRS 048A male pelvis phantom product specifications:
product specifications | |
Overall dimensions | 15cm wide x 11cm long x 11cm high |
phantom weight | 16 lbs (5.9 kg) |
background | Zerdine® |
urethra | Zerdine® |
seminal vesicle | Zerdine® |
rectum | Zerdine® |
pelvis | Tissue equivalent: epoxy resin |
bladder | Zerdine® |
prostate | Zerdine® |
phantom housing | ABS shell: thermoformed to pelvic shape |
CIRS 048A pelvic phantom includes | |
Quantity | Component Description |
1 | Multimodal Pelvic Phantom |
1 | Certificate of Compliance |
1 | User Guide |
- | 6 months warranty |
Model048A-035 kit includes | |
Quantity | Component Description |
1 | Multimodal Pelvic Phantom |
1 | CT DICOM data set (serial number specific, 1.5 mm slice thickness @ 120 kvp) |
1 | Certificate of Compliance |
1 | User Guide |
- | 6 months warranty |
