Detailed introduction
USACIRS 012A Mammography Kit
Features:
Ability to evaluate image quality at different thicknesses and glandularities
Provides accurate and reliable testing of radiation dose
Ensures consistent production of diagnostically useful images

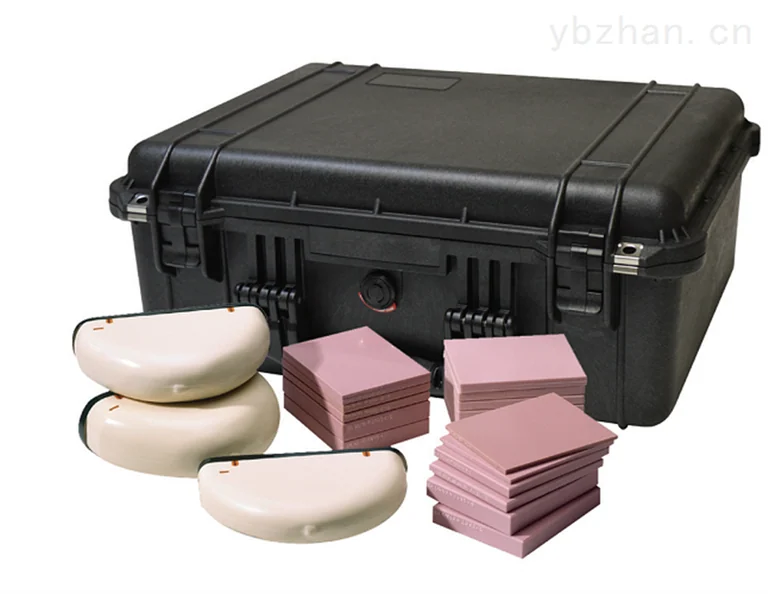

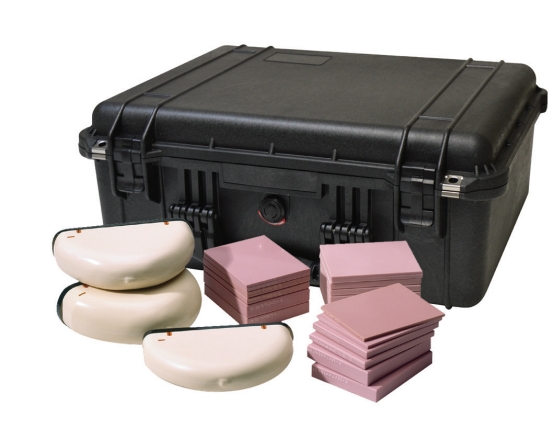

The CIRS mammography study set includes 4, 5 and 6 cm thick tissue equivalent phantoms. Each phantom contains the same embedded details (see Map 011A). The gland content of each phantom was 50%, 30% and 20% respectively. Also included are photodiode compensation plates with thicknesses ranging from 0.5cm to 7cm and gland content of 30%, 50% and 70%.
A compensation plate contains embedded details for evaluating image quality. include a30 power handheld microscope and heavy duty foam lined carrying case.
CIRS resin material simulates a series of photon attenuation coefficients of breast tissue. The average elemental composition of the simulated human breast is based on the individual elemental compositions of fat and glandular tissue reported by Hammerstein.
By usingJH Hubbell's "Mixing Rules" and tables of photon mass attenuation and energy absorption coefficients to calculate attenuation coefficients.
The methods and design of these models were developed by the Medical College of VirginiaDeveloped by Dr. Panos Fatouros and colleagues.

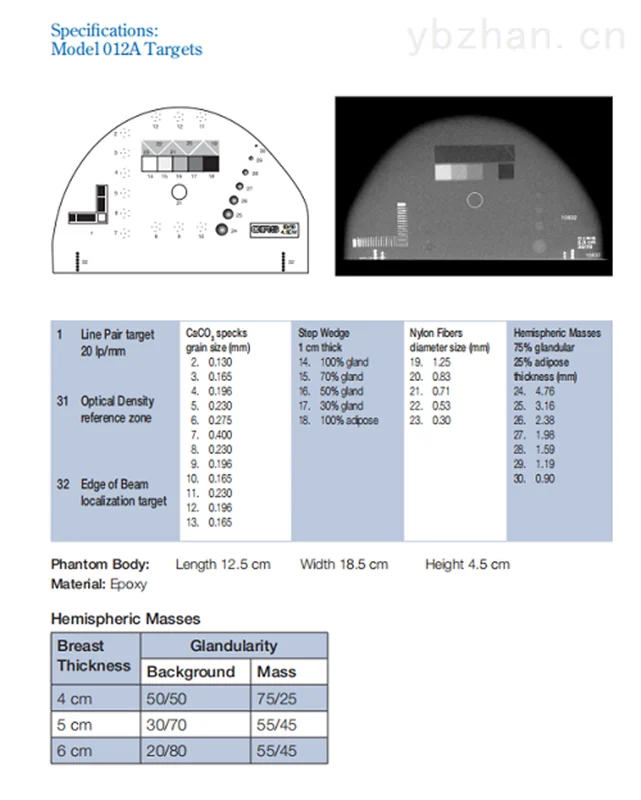

USACIRS 012A Breast X-ray Testing Kit Product Specifications:
