Detailed introduction

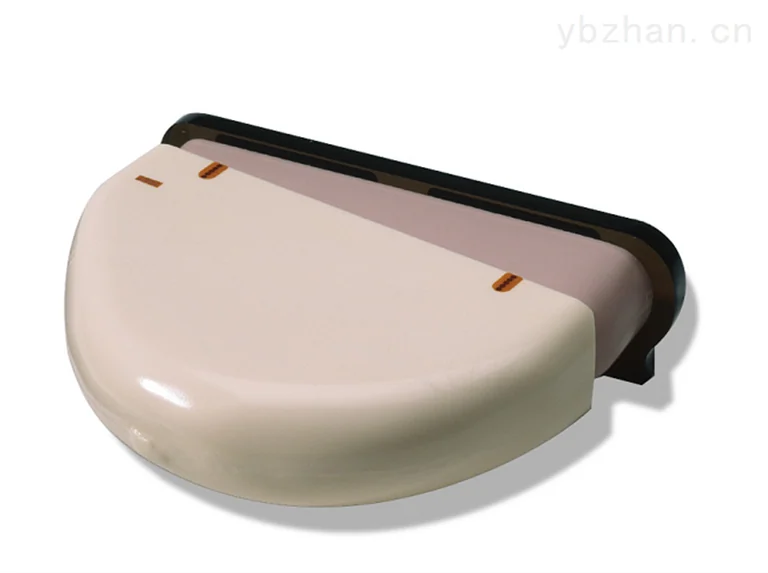

USACIRS 011A Breast X-ray tissue equivalent phantom
Introduction:
USACIRS 011A Tissue Equivalent Phantom for Mammography - A Sophisticated Quality Assurance Tool for Today's Advanced Imaging Systems
Proven simulation technology ensures mammography quality using tissue-equivalent, lifelike-shaped models.
The resin material mimics a range of photon attenuation coefficients of breast tissue. The average elemental composition of a simulated human breast is based onThe individual elemental composition of adipose and glandular tissue reported by Hammerstein.
By usingJH Hubbell's "Mixing Rules" and tables of photon mass attenuation and energy absorption coefficients to calculate attenuation coefficients. CIRS 011A breast phantom, CIRS 011A breast X-ray tissue equivalent phantom contains the goal of testing the threshold of the new generation of mammography cameras. CIRS 011A breast phantom, CIRS 011A breast X-ray tissue equivalent phantom has a thickness of 4.5 cm, simulating average gland tissue composition.
CIRS 011A Breast Phantom, CIRS 011A Breast X-ray Tissue Equivalent Phantom is designed to test the performance of any mammography system. Objects within the phantom simulated calcification, fibrous calcification in the ducts and tumor mass. Test the size of objects within the phantom range, from objects that should be visible on any system to objects that are indistinguishable on a mammography system.
CIRS mammography models are also manufactured in 4cm, 5cm and 6cm thicknesses with various glandular equivalents.
The methods and design of these models were developed by the Medical College of VirginiaDeveloped by Dr. Panos Fatouros and colleagues.

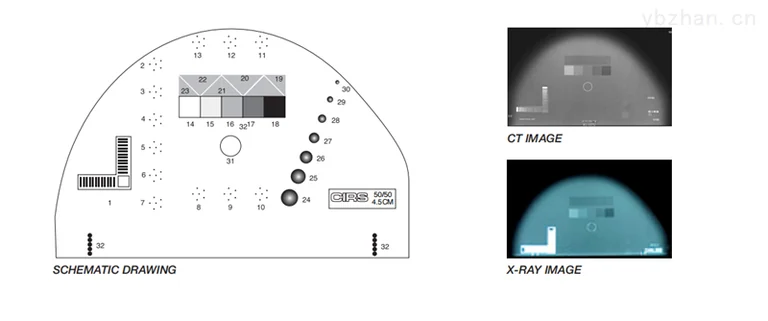

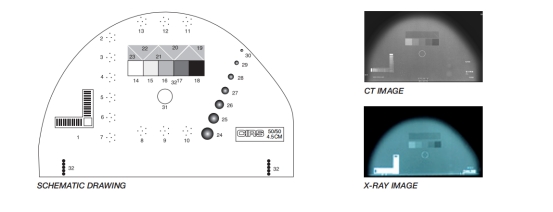

USACIRS 011A breast X-ray tissue equivalent phantom product specifications:
Line to target
11.230 stepped wedge1 cm thick 14. 100% glandular 15.70% Glandular 16. 50% Glandular 17. 30% Glandular 18. 100% fat | Nylon fiber diameter size (mm） 19。1.25 20. 0.83 21. 0.71 22. 0.53 23. 0.30 Hemisphere mass 75% glandular/25% fat, thickness (mm) 24。4.76 25. 3.16 26. 2.38 27. 1.98 28。 1.59 29. 1.19 30. 0.90
| CIRS 011A breast phantom long12.5 cm Width18.5cm height4.5 cm Material epoxy resin Also includes 30x handheld microscope BreastsRadiography QA files are used to record image evaluation and scoring Technical manual Carrying case sold separately. |
References:
1. Skubic SE, Fatouros PP. Inhalation breast dose: Dependent on radiographic modality and technique and breast thickness. Radiology, 1986,161: 263-270.
2. Fatouros PP, Skubic SE, Goodman H. Development and use of realistically shaped, tissue-equivalent models to evaluate mammography procedures. Radiology, 1985 157(p):32.
Available models of breast phantom:
Breast phantom model# | Description |
010A breast phantom | tissue equivalent breastRadiography phantom, 5.0cm thick, 30% glands and 70% fat |
010B breast phantom | tissue equivalent mammography model,4.0cm thick 50% glandular 50% fat |
010C breast phantom | tissue equivalent breastRadiographic phantom, 6.0cm thick, 20% glandular, 80% fat |
010D breast phantom | tissue equivalent mammography model,5.0 cm thick 50% glandular 50% fat |
011A breast phantom | tissue equivalent mammography model,4.5 cm thick 50% glandular 50% fat |
