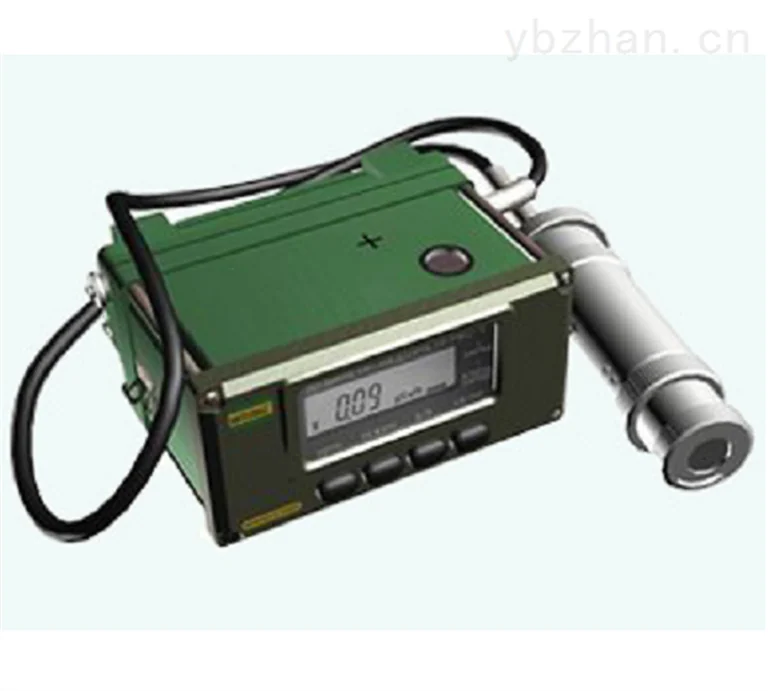

MKS-UF multifunctional radiation measuring instrument

MKS-UFMultifunctional radiation measuring instrument

Product introduction

MKS-UF Multi-functional radiographic measuring instrument can measureγ、χRadiation radiation environmental dose equivalent rate, dose equivalent, measurementβRay surface flux density,Record the time of cumulative dose measurement. Suitable for fire departments, homeland security departments, emergency response departments, environmental protection departments, nuclear power plants, accelerators, isotope applications, industryX、γConducted in the fields of non-destructive testing, environmental monitoring around nuclear facilities, etc.γ、χray sumβMeasurement of rays.

Features

◆Automatic range conversion;

◆The sound indicates the detectedγ、χray sumβray;

◆The display and buttons have backlight function, making it easy to use in dark places;

◆Multi-level indicator of battery power;

◆Radiation intensity simulation indication;

◆Up to4096Group data storage space, data can be output to the computer through the infrared interface;

◆Historical records can be queried on the digital display;

◆Optional personal protective equipment (rubber gloves);

◆Optional shoulder strap attachment for hands-free operation;

◆Optional suitable for places with precipitation, moisture, smoke and dust, and can be used underwater0.5Detectors that take measurements at depths of meters;

◆The battery is rechargeable via the built-in charger, as is the charging input12Vcar battery or220Vpower converter

Technical specifications:

※γRadiation measurement parameters

◆Dose equivalent rate measurement range and relative basic error:

◆χ－γDose equivalent rate:0.1µSv/h～10Sv/h（10uR/h～1000R/h), error:±15% (relative to137Cs)

◆Dose equivalent measurement range and relative basic error:

◆χ－γdose equivalent(137Cs) ：0.uSv～9999mSv , error:±15%(vs.137Cs）

◆χ－γMeasuring energy range:0.05～3.0MeV；

※βRadiation measurement parameters(relatively90Sr+90Y)

◆βRadiant flux density:10～100 000 (cm2·min)-1 ;Error:±20%

◆Dose equivalent accumulation interval and error:1minutes~100hours, every24The hour error does not exceed±0.1seconds

◆βRadiation energy range:0.3～3.0MeV

◆Measurement interval:2～50seconds

◆Battery life:100hours

◆Operating temperature range:-40°C～+50°C

◆Weight:2.4kg

◆Dimensions:160×125×80mm
