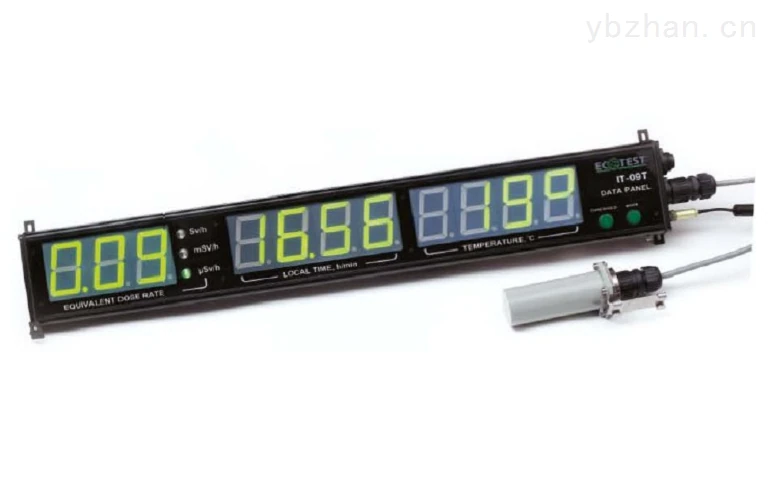

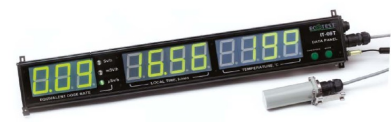

IT-09T multifunctional online radiation continuous monitor

IT－09TMultifunctional online radiation continuous monitor

Introduction

IT－09TIt is a multifunctional fixed radiation site monitoring system that can measureX、γEnvironmental dose equivalent rate, can measure the temperature of the environment, with real-time clock and sound and light alarm functions. Suitable for environmental protection, radiation medicine, cobalt source treatment,γIrradiation, radioactive laboratories, non-destructive testing and other radioactive workplaces that require continuous monitoring and alarm.

IT-09T multifunctional online radiation continuous monitor Technical indicators

◆Dose equivalent rate display range:0.1μSv/h - 10Sv/h

◆3HighlightLEDDigital tube displays dose rate data

◆Real time display error:≤±1min/48h

◆Number of digits displayed in real time:4Bit

◆Ambient air temperature display range:-40oC ~ +50oC

◆Temperature display error:

◇in-15oC ~ +50oC：≤±1oC

◇in-40oC ~ -15oC：≤±2oC

◆Temperature display digits:4Bit

◆Available at0.01μSv/h－9.99Sv/hsettings3threshold, (need to read the original text to confirm)

◆An audible alarm signal will be emitted when the dose equivalent rate exceeds the threshold (each different threshold has a different sound) and light alarm signal (color change of dose equivalent rate display)

◆PassRS485interface for communication

◆The power supply is an industrial power supply (220V) provided after conversion via power adapter

◆Operating mode -24hours of continuous work

◆The distance range between the display panel and the measuring unit is0.5-50（m）

◆Size smaller than748×135×40(mm)

◆weight less than2.3(kg)(Adapter not included)

◆Installation method: upward wall-mounted installation

◆Suitable for working environment conditions

◆air temperature

◇IT-90Data display panel:-20oC~+50oC

◇BDBG-09Measuring unit:-40oC~+50oC

◆Relative humidity: high to95%(no condensation)

◆air pressure84－106.7（kPa）

Shipping list

◆IT-90THost

◆BDBG-09Measuring unit, connecting cable ，220Vpower adapter

◆Operation manual

◆Packing box
