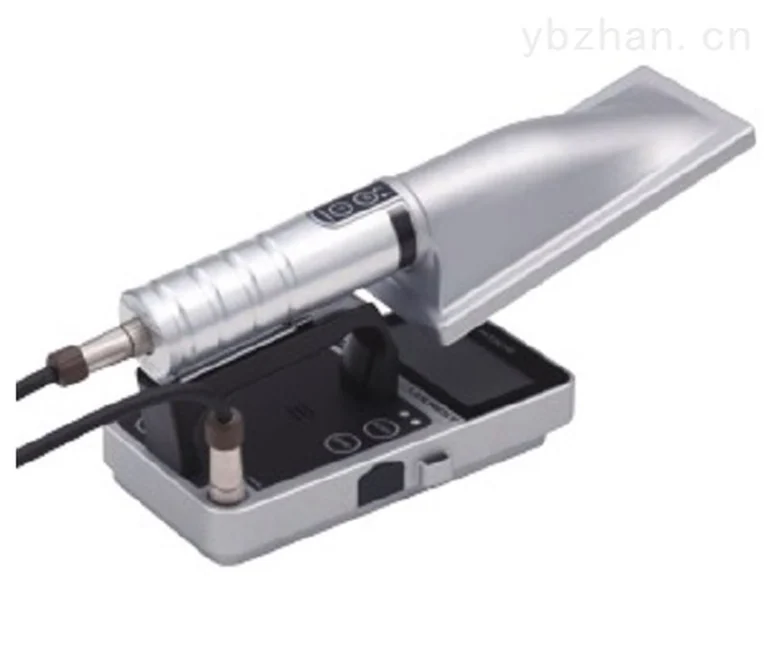

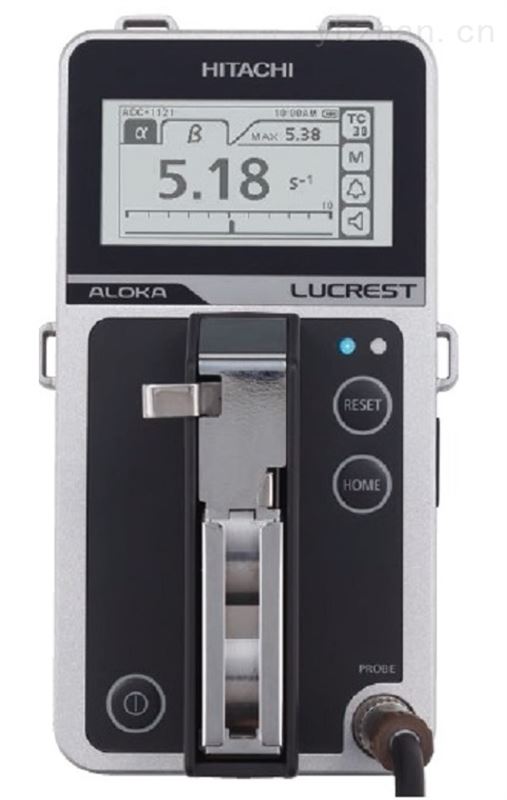

TDC-9101 (with ADC-1121) Alpha/Beta surface contamination meter
Product introduction:
l Automatically identify detector types, Convenience for users according to their own needs, Choose the appropriate detector for different measurement situations
l strong outdoor light, Can be displayed clearly even in low light conditions indoorsLCD
l Intuitive touch screen operation
l The bar bar tracking and dragging display allows you to grasp the speed of measurement value changes at any time.
l Includes real-time trends of measured values, Scaler and other functions
Product features:
l Design that pursues extreme operability
l Lightweight and strong magnesium alloy main unit casing
l Touch screen operation
l Simple operation method
l Operate on the detector to record and save data, switching time constant
l Trend graph showing measured values
l Measurement data availableUSB output
Technical parameters:
Measure radiation | α rays, β (γ) rays |
detector | ZnS (Ag) scintillator + plastic scintillator |
Mixing rate | β→︎α: 0.1% or less, α→︎β: 5% or less |
Measuring range | α:0～10ks -1 、 0～100kmin -1 |
Detection area | 100cm2 |
Others | Equipped with time constant switching switch, data saving switch,LED |
weight | approx.320ｇ (excluding cables and protective covers) |
Detection efficiency | α: Within 35%/2π±25% and above 30%/2π (30%/2π～43.7%/2π) (using 241 Am line source, distance 0.5cm) |
