Detailed introduction

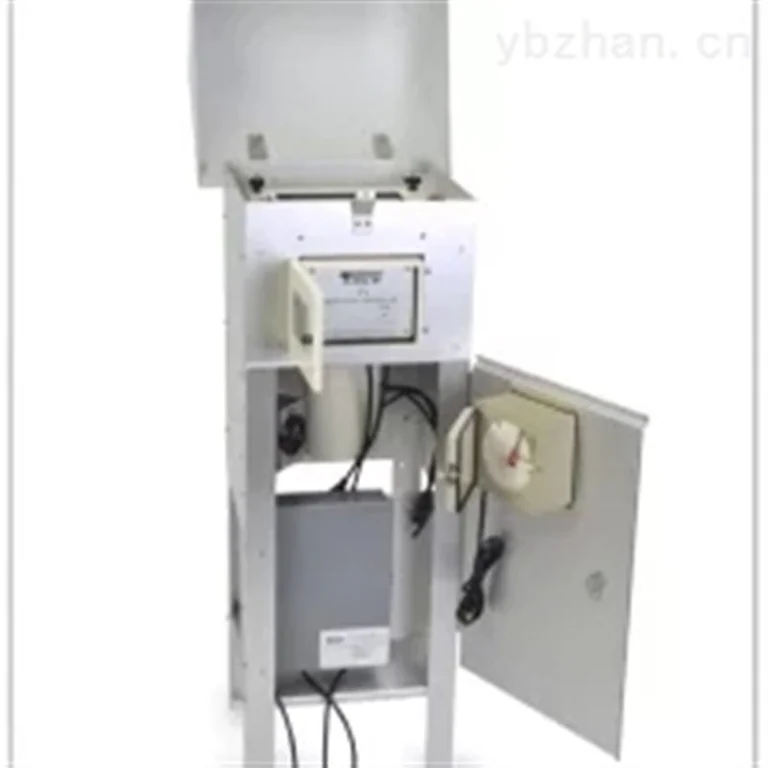

USATisch shipboard aerosol sampler
Product introduction:
l Flow Control Total Suspended ParticulatesTSP’s High Volume Air Sampling System
l aluminum air pump,8" x 10" stainless steel filter holder with stagnant pressure holes 8" x 10" stainless steel filter holder
l bringMass flow controller for 20/60 scfm flow probe
l Digital timer with digital time indicator,30" water column pressure gauge
l continuous flow/pressure logger
l Used time indicator, seven-day timer, power supply(220V/50Hz)
Product features:
l flow rate 42 cfm ~ 45 cfm continuous
l filter media glass fiber filter membrane 8" x 10" (TE-G653)
l Flow rate control Volume flow control
l Gas production pump 2-stage vacuum pump 0.6 HP 220v/50hz (TE-116312)
l water pressure gauge 30" Water Pressure Gauge (TE-5030)
l flow indication continuous flow/Pressure Recorder (TE-5009)
l timer Seven-day mechanical timer
l operating altitude less than3000 meters
l operating temperature -30~+ 50ºC
l Operating humidity 0~*
l Sampling start delay time 0~7 days
l Starting current 20 amps
l Operating current 8 amps
Technical parameters:
product specifications | |
Intake dust removal efficiency | Comply with Federal Regulations AddendumBEPA Code Part 50 |
flow rate | 39 CFM€"60 cubic feet (1.1~1.7mA³) |
filter media | fiberglass filter8“×10"（TE-G653） |
flow control | mass flow control,20~60 SCFM air flow probe (TE-300-310) |
Motor fan | Level 2 vacuum 0.6 HP 110V/60HZ (TE-116311) 220V/50HZ (TE-116312) |
flow indicator | traffic/Pressure Recorder (TE-5009) |
Mecha Programmable timer | 7-day mechanical timer (TE-5007) |
Elapsed time indicator | Elapsed time indicator (TE-5012） |
Shipping information | |
Size | 45.5" x 22.5" x 20" sampling box, 19" x 14" x 14" lid carton |
weight | 75 pounds – sampling box, 9 lb – lid carton |
Assembly space requirements | 24" square x 53" tall |
Power requirements | Single phase with grounding,110V/60HZ or 220V/50HZ |
Motor product specifications | 110V/60HZ€" Part No. TE-116311, 2 Stage Vacuum 0.6 HP Dual Ball Bearing Through Current Discharge |
220V/50HZ€"Part number TE-116312, 2 stage vacuum 0.6 HP, ball/oil bearing, flow discharge | |
Altitude application | Arrive10,000 feet elevation |
Ambient temperature application range | -30 to +50ºC |
Relative humidity applications | 0 - 100％ |
Sampling delay start range | 0 - 7 days |
Starting current | 12 amps |
Running Ampere | 6 amps |
