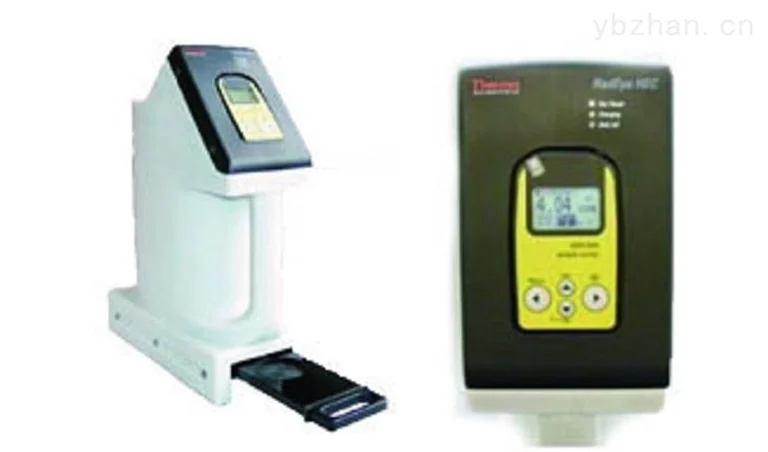

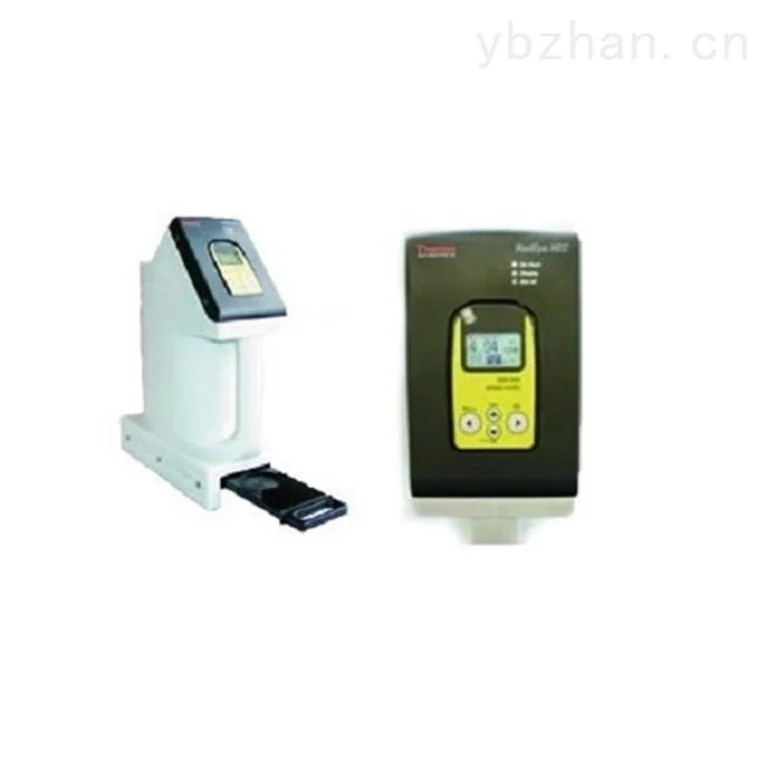

RADEYE HandECount Portable Alpha, Beta Counter
Product introduction:
l The HandeCount instrument is a portable counting system
l Adopt the pairBoth alpha and beta sensitive scintillation detectors
l The system consists of integratedM515 handheld computer control, can measure α and β at the same time
l Has the most reliable data management and storage capabilities
l Can save approx.Complete data for 5000 samples
l Contains multiple databases such as measurement database, background database, calibration report database, and test source database for inspection and calibration instruments
Product features:
l Automatically record and save data
l Built-in measurement and calibration program for automatic decay correction and calibration management
l The height of the measuring area can be adjusted to meet the needs of measuring different samples
l Handheld computer equipped with flash memory card
l PassableRS-232 interface to connect to computer
l PassedANSI N42.17 testing and CE certification
l Two-level password protection for set parameters and scale information
Technical parameters:
detector | 2" Ø α, β sensitive scintillator |
efficiency(2π) | Alpha:239Pu﹥90%；Beta:99Tc﹥25%；90Sr-90Y﹥40%； |
Background | (Under Cs137γ background 25μR/h); α﹤3cpm; β﹤60cpm |
crosstalk | α to β < 5%; β to α < 1% |
Sample tray | maximum5.16 diameter |
show/control | PalmTM m515 PDA |
counting time | by user inSelect counting time from 1 second to hours |
unit of measurement | Counts、CPM、CPS、Bq、DPM、DPS |
Counting range | 1—1,200,000 CPM |
power supply | rechargeable battery pack; 220VAC, 50Hz, can work continuously for 8 hours |
temperature | 0o ~ 50oC |
Humidity | 10 ~ 90% non-condensing |
alarm sound | PalmTM sounds alarm signal |
Size | 38.1×12.1×30.5cm |
weight | 5kg |
test | CE approved ANSI N42.17 |
