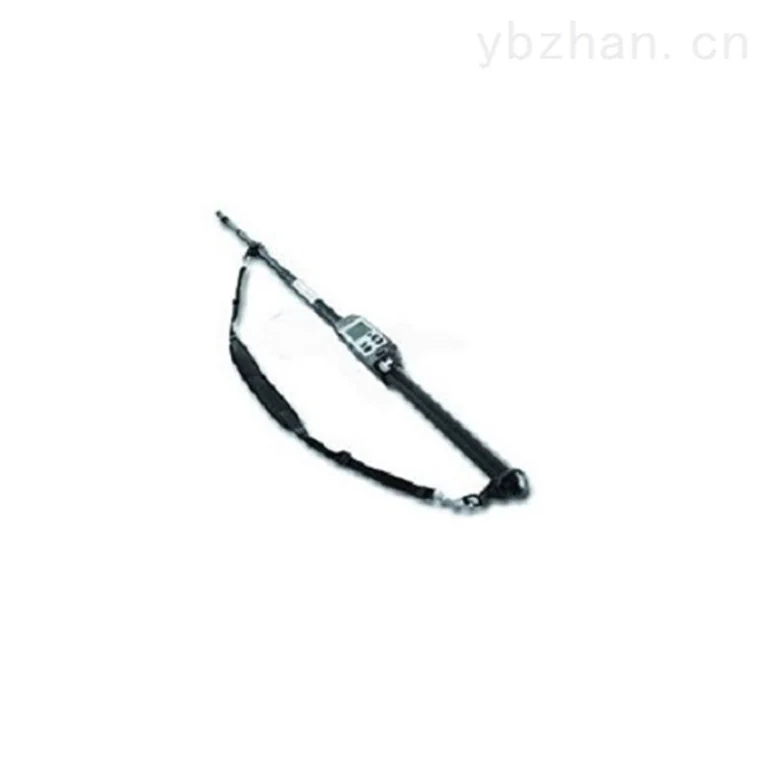

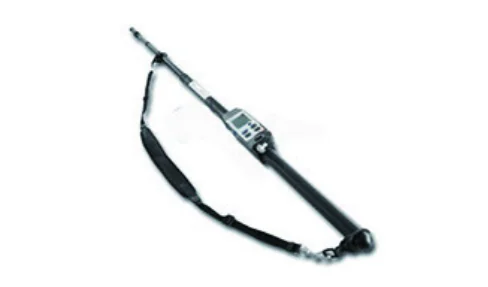

FH40 TG long pole radiation measuring instrument
Product introduction:
l Suitable for high-dose places and places with limited space
l Extensible 4m
l Simultaneous measurement of operator dose and dose rate
l Alarm thresholds can be set individually for all detectors
l Standard configuration, optional double GM tube detector FHZ 612, measuring range ambient levels to 10Sv/h
l Optional NaI detector or neutron detector.
l The FH 40G main unit can be connected to a variety of different detectors
l Continuously adjustable dose and dose rate alarms within the measuring range
Product features:
l A variety of different detectors can be used
l Simultaneous monitoring of operator dose and dose rate
l Modular design allows for quick replacement of components
l The long pole uses high-strength fiberglass pole material
l Equipped with a balance bar to facilitate long-term work
l Can be extended to 4m
l Weight only2.6kg
l Displays the maximum and average dose rate of the last operation
l Built-in256-bit data memory, corresponding to internal and external detectors to record date and measurement time respectively
l When an external probe is connected, the display will automatically switch to the corresponding mode and display the detection radiation type of the probe.
l doubleGM tube automatically adjusts large range detector
Product application:
l Environmental monitoring
l homeland security
l emergency response
l nuclear related fields
Technical parameters:
| Host | Can connect a variety of external probes, automatically identify and configure the connected detector, and automatically display the type of radiation detected by the probe |
| long pole | Can match counting tube,GMtube,He - 3tube and other detectors |
| High strength fiberglass pole material | |
| Equipped with a balance bar to facilitate long-term hand-held work | |
| Length: can be extended to4meters | |
| Weight:2.6Kilogram | |
| Probe | Measuring range:0.01μSv/h~10Sv/h |
| Display range:10nSv/h~10Sv/h | |
| Energy range:60KeV~3MeV | |
| Sensitivity (Cs-137）： | |
| Low range:1.7cps/μSv/h | |
| High range:0.017cps/μSv/h | |
| Detector:GMCounting tube | |
| Angular response:-60º≤α≤60º | |
| Dimensions:φ35mm ×185mm |
