Detailed introduction

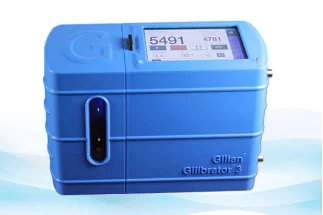

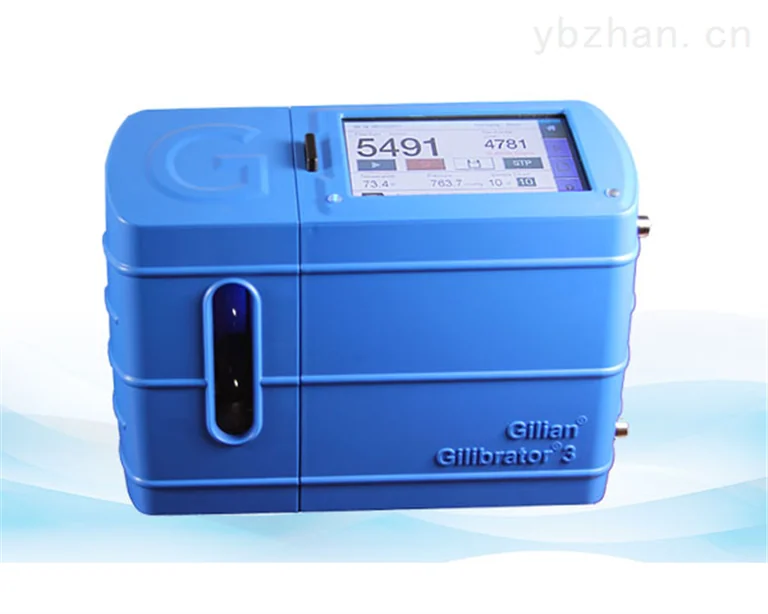

USASensidyne Gilibrator 3 Flow Calibration System
Product introduction:
USASensidyne has launched the new Gilibrator 3 flow calibration system. Gilibrator 3 is a dry flow calibrator. It has high precision and can be used for flow detection in laboratories and environmental fields.
A new standard for calibration devices
• Fast and easy-to-use dry calibrator
• StablFlow™ provides constant low back pressure to the device being calibrated
• Proprietary pulse-free valve technology maintains calibration integrity
• The color display is touchscreen and automatically adjusts visibility based on lighting conditions and even direct sunlight
• Multiple modules with a common base add convenience and cost savings
• Internal record storage provides data continuity and reporting
• Gilian® Connect PC compatible (Q4 2018) allows data retrieval, record keeping and statistical analysis of data
• SmartCal™ with GilAirPlus®, freely adjustable
Modular
Quick disconnect fittings allow easy module replacement:
• Low: 5 to 450 ml/min
• Standard: 50 to 5,000 ml/min
• High: 1LPM to 30LPM
Configure as per your requirements
Gilibrator 3 can be configured to meet the user's calibration needs. Users can choose between continuous or average mode. In averaging mode, the user can select a sample set between 3 and 20 samples to average. Additionally, users can define statistical parameters for standard deviation and percentage deviation between sample sets. In the settings screen, users can define the engineering units of measurement, date, time, temperature, and choose from a range of languages from the device library.
Digital data logging and downloading
The Gilibrator 3 dock comes with an SD card slot for adding storage and exporting bitmap and .csv files.
.csv files used in Excel can be imported into larger sets of data comparisons.
Technical parameters
flow cell | Low flow: 5 - 450 ml/min Standard flow rate: 50 - 5,000 ml/min High Flow: 1 LPM – 30 LPM |
Accuracy | reading value 1% |
AC adapter/charger | 12 VDC |
battery | Lithium battery |
Battery duration | A lot of traffic:4 hours Continuous use:8 hours Standby mode:24 hours |
working mode | Positive or negative pressure |
Maintains constant, low-interference backpressure during calibration | 50 cc/min：0.1"H2O 1,000 cc/min：0.7" H2O 5,000 cc/min：1.6" H2O 10,000 cc/min：2.3" H2O |
Size | 16.8 x 23.4 x 8.1 cm (HxWxD) |
weight | 1.243 kg |
Certification | UL61010, CE, and RoHS |
