Detailed introduction

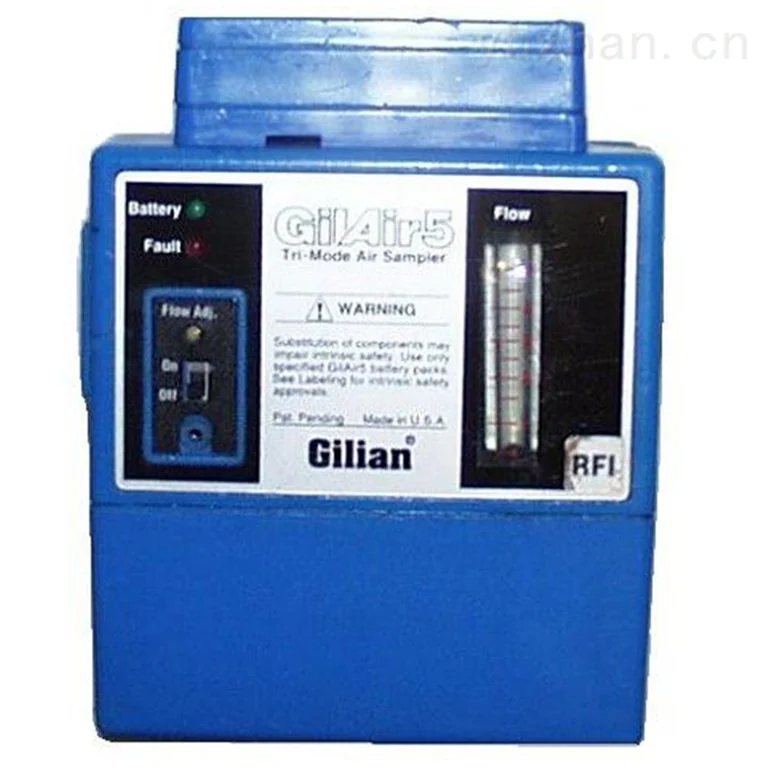

USASensidyne Gilair-5 Air Sampling Pump
Product introduction:

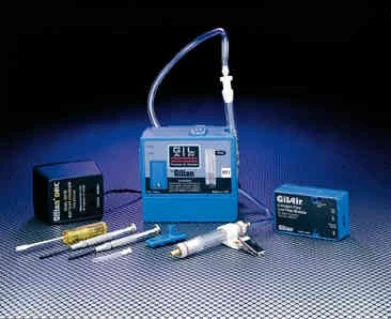

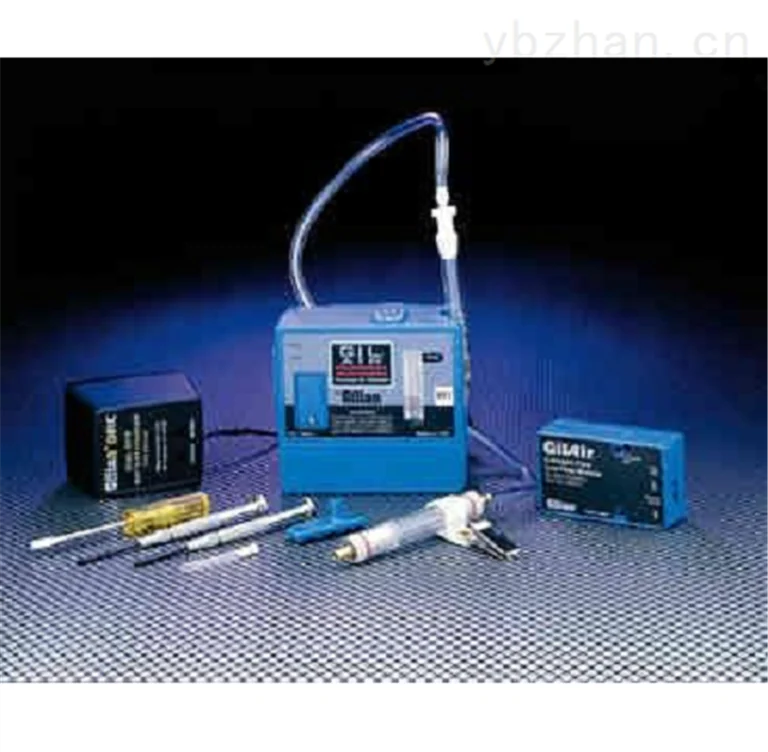

Gilian Gilair-5 is a personal general-purpose air sampling pump with a user-friendly design. It can be worn on workers for sampling atmospheric dust, gas or vapor, or installed on a chassis and fixed on a tripod for VOC sampling of indoor air. The sampling pump can also be equipped with sampling accessories such as filter boxes, filter membranes, cyclones, adsorption bottles and adsorption tubes.
Application areas:
l Fixed-point poison sampling in the workplace
l Individual dust sampling in the workplace
l Fixed-point toxic gas sampling in workplaces
Product features
l Constant current sampling, automatically compensates for flow loss and error within the maximum pressure range
The value is controlled atWithin ±5%
l When the flow rate exceeds the original set valueWhen ±5% or when the battery is low, the alarm light will light up.
l Safe back pressure for error-free operation8 hours
l Low flow module can be installed at any time for low flow sampling
l Equipped with a float flowmeter, the approximate sampling flow rate can be known at any time
l Available in basic type, time display type and time programming type.
l Time programming type provides delayed start time9999min and 6 programming positions
Model | GilAir3 | GilAir5 |
Total flow range ﹝Have flow±5% control﹞ | 1 ~ 3000 cc/ min Back pressure can withstand25" H2O | 1 ~ 5000 cc/ min Back pressure can withstand29" H2O |
Constant current and low flow ﹝Have flow±5% control﹞ | 1 ~ 500 cc/ min Back pressure can withstand25" H2O | 1 ~ 500 cc/ min Back pressure can withstand25" H2O |
Constant pressure and low flow | 1 ~ 750 cc/ min Back pressure can withstand18 ± 3" H2O | 1 ~ 750 cc/ min Back pressure can withstand18 ± 3" H2O |
rechargeable battery | Nickel Cadmium4.8V 1.8 Amp. hours | Nickel Cadmium6.0V 1.8 Amp. hours |
weight | 0.6kg | 0.64kg |
Size(W x H x D) | 9.1 x 9.9 x 5.1 cm | 9.1 x 9.9 x 5.1 cm |
Certification | ATEX, Ex, UL, Class I, Groups A.B.C.D, Class II, E, F, G and Class III; Div I; Temp, Code T3C | |
Collector and collector media selection table
Shoulduse | Collector | Collector filter media | media holder |
Metal and welding fumes | filter cartridge | 37mm mixed ester cellulose﹝MCEF﹞GF37080 | Filter box fixed pipe rack |
total dust | filter cartridge | 37mm polyvinyl chloride (PVC) GCU37500PVC | 800143 |
Respirable dust | Membrane cassette with cyclone separator | 37mm polyvinyl chloride (PVC) GCU37500PVC | cyclone separator 800061 |
Gases, vapors and aerosols | adsorption bottle | Standard small 400165 | Adsorption bottle holder: Single200222 |
Gases, vapors and aerosols | moisture trap | melting sand small 400506 | Mounting bracket801146 |
Others | filter cartridge | 37mm Teflon with polypropylene liner ﹝PTTE﹞ | |
glass fiber | filter cartridge | 37mm glass fiber﹝GFF﹞ | Filter box fixed pipe rack |
Others | filter cartridge | Silver filter membrane | 800143 |
asbestos | PCM filter cartridge | 25mm mixed ester cellulose﹝MCEF﹞ GCS25080 | |
Solvents and acid gases | Adsorption tube | Activated carbon adsorption tube, 801935 | Single tube set 800149 |
