Detailed introduction

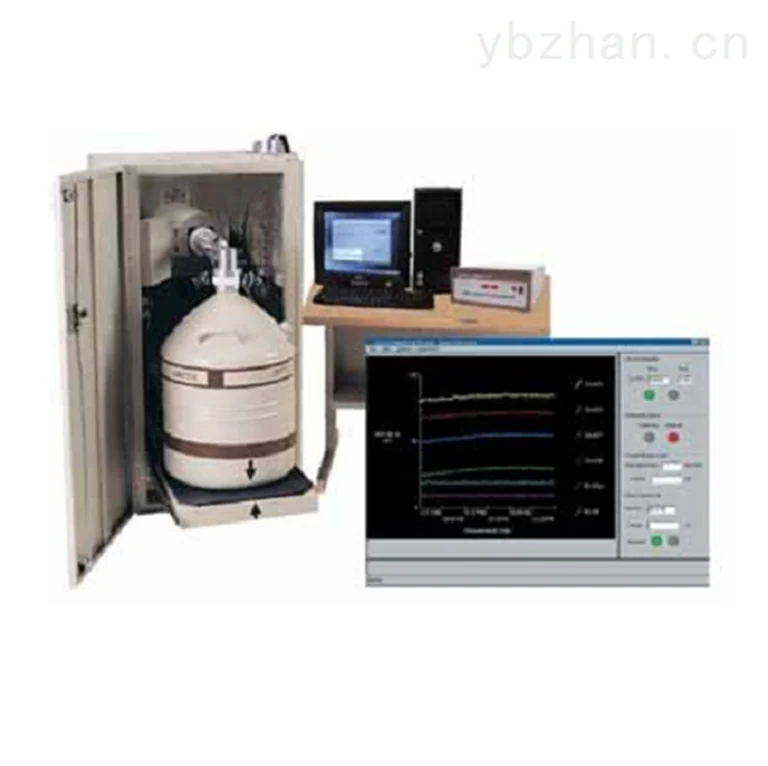

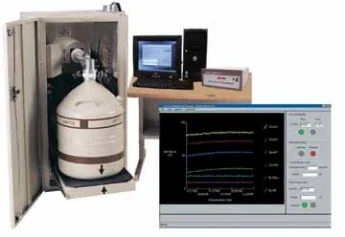

OS5400 Sentinel Fuel components online monitoring system
ORTEC It has long been not limited to the scope of traditional laboratory and on-site measurement, but also in nuclear power online monitoring, container safety inspection, machine testing, etc.
/Vehicle-mounted nuclear radiation inspection, box/bucket/Both packaged nuclear waste measurement and health physics can provide users with complete and reliable solutions and systems. Some of these systems are groundbreaking worldwide and are the only solutions to date.
Sentinel Is used for online monitoring of nuclear fuel originalsIs there any damage to a complete system? System adoptionspecial GLP Planar high-purity germanium for primary circuit coolingin the dosage80keV to200keV Fission and activity within the energy segmentChemical products are continuously"Timing tag" measurement is used to determine whether there is a sign of nuclear fuel damage based on its changing trend.
by pairing Xe、Kr short-lived nuclides and I WaitChanges and comparisons of dynamic content of long-lived nuclides, Combined with the data of the total count rate instrument configured at the same time in the system, an accurate judgment can be given comprehensively. Users can select the area of interest and the nuclide of interest, and setAlarm threshold.

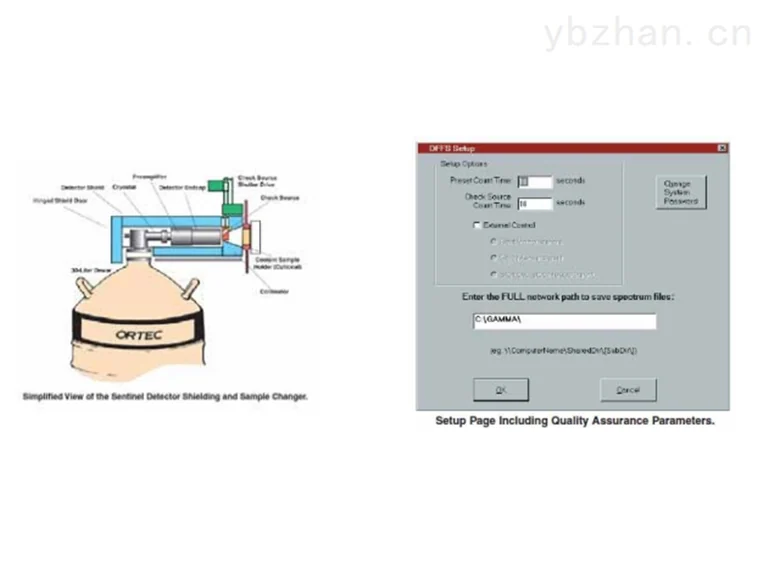

The system uses a digital spectrometer with high throughput and stability DSPEC-Plus. In order to strictly meet the quality assurance of nuclear power operation（QA） requirements to further ensure stability and reliability in concentrated energy areas and high count rate conditions. The system design is equipped with a standard scale source for automatic energy (peak position) and gain inspection at regular intervals. The inspection time interval can be defined by the user through software. The system will record each inspection by itself and import it into the software's quality assurance program.
System software includes GammaVision and Gammain, software that continuously reports and records system measurements in graph form. The software already includes quality assurance features.
Same ORTEC Like other products,Sentinel Networked control, transmission and management can be easily achieved.
 |
 |
