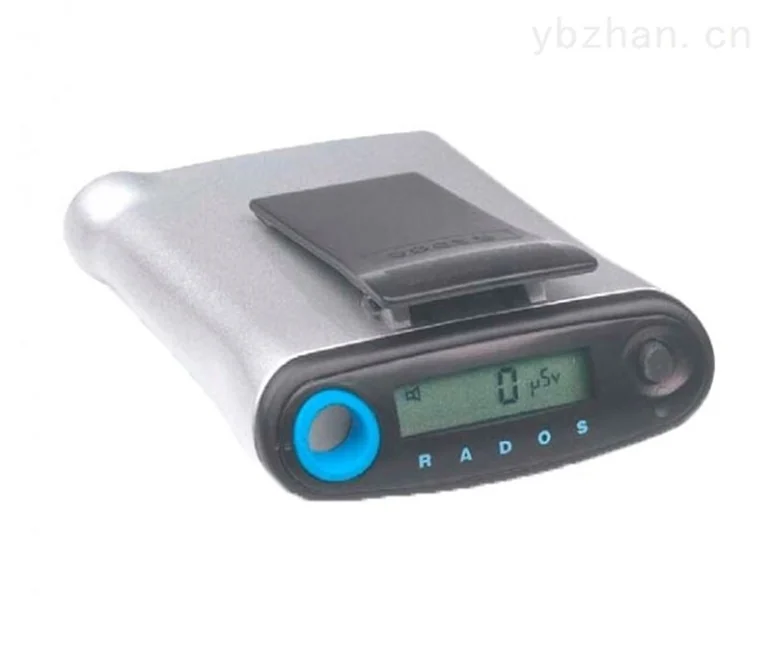

RAD-60 Personal Dosimeter
Product introduction:
l RADOS's RAD-60 personal alarm dosimeter is a precision radiation measuring instrument that can reliably detect and accumulate doses to ensure user safety.
l When used alone, the instrument is suitable for use in a wide range of applications for routine radiation monitoring purposes.
l Programmable parameters and the ability to operate in extreme environmental conditions make this instrument a unique multi-purpose and real-time personal dosimeter
l The lightweight design allows users to continuously and reliably record cumulative doses anywhere
l When measurements exceed exposure limits, a presettable alarm will alert the user.
l RAD-60 dosimeter offers better resolution, wider measurement range, higher durability and reliability compared to traditional ionization chambers
l and provides feasible additional features such as real-time digital display and user-settable alarms
l Silicon diode-based detector design offers compact size, and other design features effectively eliminate external interference such as vibration and radio frequency
l The electronics design of the RAD-60 includes optimization of built-in program memory using self-diagnostic operations
l Most important operating parameters are stored in non-volatile erasable read-only memory to ensure important information in the event of power failure
l The RAD-60 uses one AAA alkaline battery
l The smooth and ergonomic design of the housing makesRAD-60 is waterproof and easy to remove stains
Product application:
l Civil protection
l military system
l rescue work
l Industrial flaw detection
l nuclear medicine
l customs
Features:
l Can be used independently
l Digital display of cumulative dose or dose rate
l User-selectable dose and dose rate alarm levels
l The detector system utilizes high-quality energy supplements
l compensated silicon diodes and advanced precision dose rate linearization methods
l Waterproof construction and shock-resistant plastic housing with retaining clips
l Energy Compensation Silicon Diode
Technical parameters:
dose | 1μSv - 9.99Sv or 0.1mrem - 999rem |
dose rate | 5μSv/h - 3Sv/h or 0.5mrem/h - 300rem/h |
dose rate linearity | ±15% |
Calibration | better than±5%(Cs-137, 662keV at 2mSv/h), Hp(10) |
energy response | Hp(10), 60keV–3MeV, better than ±25%; better than ±35% within 6MeV |
dose rate linearity | Better than ±15% within 3Sv/h (300rem/h) |
Audible alarm | 7 independent alarms, no less than 85 dB at 30 cm |
Alarm threshold | For cumulative dose and dose rate, there are 6 preset values, selected via buttons |
power supply | one sectionAAA alkaline batteries, typically 1800 hours of use under baseline conditions (dose mode) |
Reader connection | The reader can be connected through the infrared interface at the bottomADR – 1, analyzed with RADOS PC software |
temperature range | Use at -20 - +50oC, humidity within 90% RH, store at -20 - +70oC |
Working humidity | 10%-90% (relative humidity) |
Detector type | Silicon (crystal) diode |
Detectable radiation types | gamma rays and x-rays |
Size | 78×67×22mm |
weight | battery included 80 g |
