Detailed introduction

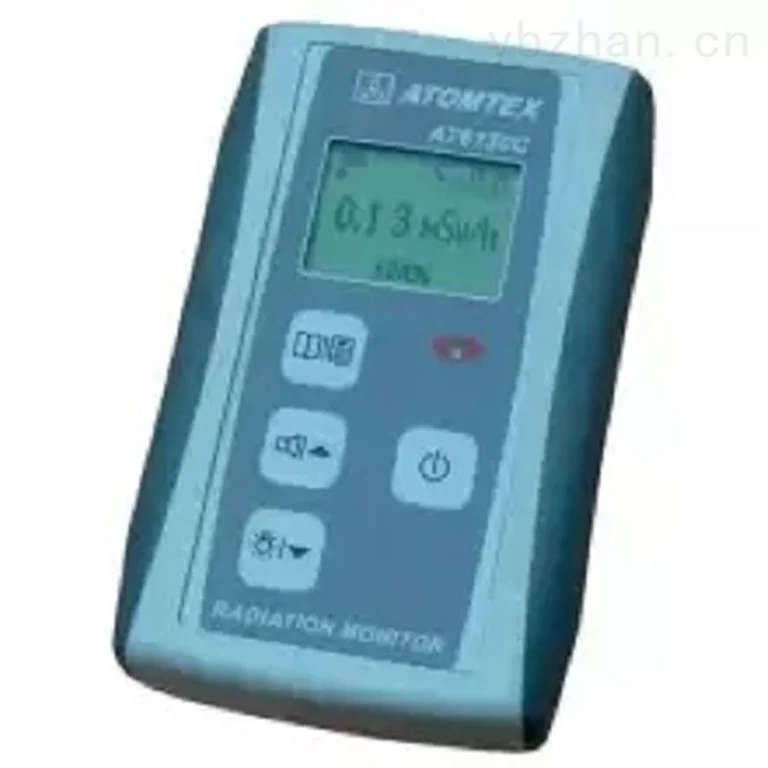

AT6130C ray radiometer
Product introduction
l Small weight and size
l interactive mode of operation
l Audible and visual alarms on dose, dose rate threshold exceeded or flux density
l Rapid response to dose rate changes (starting with a new measurement)
l SelectivityMixed field of beta and gamma radiation measurement ·Wide operating temperature in natural environment
l In every gamma quantum (beta particle) the source of the ionizing radiation is detected and the search alarm
l keep untilNon-volatile memory of measurement results with measurement date and time in year 2000
l Measurement results, current date and time, low battery symbol on matrix LCD display
l data via infrared
l MeasurableX-ray isotopes and γ-ray radiation dose, β-ray particle flux density
l source of ionizing radiationGamma Spectrogram Audible Signal Tracking
Application areas
l Measurement host
l Instrument specific package
l Operation manual
l battery
l Optional accessories: reader, application software, full battery charger
Product features
l Small weight and size
l interactive mode of operation
l Audible and visual alarms on dose, dose rate threshold exceeded or flux density
l Rapid response to dose rate changes (starting with a new measurement)
l SelectivityMixed field of beta and gamma radiation measurements
l Wide operating temperature in natural environment
l In every gamma quantum (beta particle) the source of the ionizing radiation is detected and the search alarm
l keep untilNon-volatile memory of measurement results with measurement date and time in year 2000
l Measurement results, current date and time, low battery symbol on matrix LCD display
l Data is transmitted via infrared toPC
l Find the radiation source and call the police
l Can be used in radiology ecology, emergencies, civil defense systems, fire scenes, customs, potential radioactive source inspection, instrument testing industry
Technical parameters
environmentMeasuring range of x and gamma radiation dose rate | 0.1 µv/h - 10 mSv/h ； 0.1 µSv/h - 1 mSv/h ； 0.1 µSv/h - 100 mSv/h |
environmentx, gamma radiation dose equivalent measurement range | 0.1 µSv - 100 mSv；0.1 µSv - 10 mSv；0.1 µSv - 10 Sv |
Measurement range of beta radiation flux density | 10 - 104 part./(min·cm2) |
x, gamma ray detection energy range | 20 keV - 3 MeV；60 keV - 3 MeV |
Beta radiation spectrum detection maximum energy range | 300 keV - 3.5 MeV |
inherent measurement error | ±30% |
Energy sensitivity characteristics | 137Cs γ radiation dose rate measurement ± 25%; 90Sr+90Y β radiation flux density measurement (-60-+50)% |
Operating temperature range | -20 - +55°С |
Compensation error within operating temperature range | ± 10 % |
air relative humidity | 35°С 95 % |
protection level | IP57 |
Power supply requirements | 2 ААА type dry cells, (LR03) or 2 rechargeable batteries, 1.2 V |
continuous operation time(Host dose rate <1µSv/h) | >500h |
radio interference | CEI/IEC CISPR 22:1997 |
electromagnetic compatibility | CEI/IEC 6 1000-4-2 :1995 ； IEC 6 1000-4-3 :1995 |
weight | 0.17 kg |
Size | 110х70х 28 mm |
