Detailed introduction

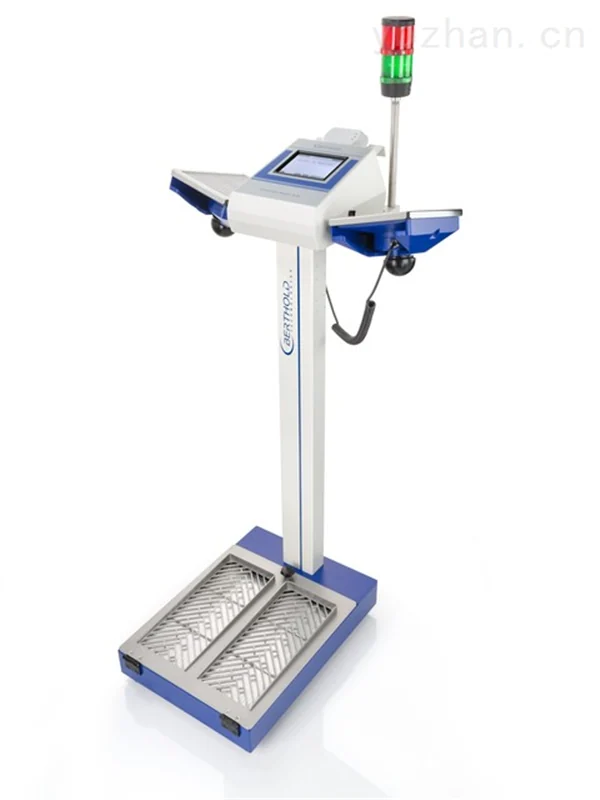

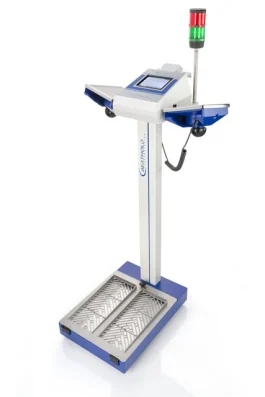

germanyBERTHOLD LB148 hand and foot contamination detector
Product introduction:
l Widely used in many fields of research, nuclear medicine and life sciences
l Regardless of the use of unsealed radioactive material, radiation protection regulations require monitoring of contamination of hands, feet and clothing
l The LB 148 is a compact multifunctional personal pollution monitor for backside manual measurement of radiation protection applications
l With new flashing technology, it can measure simultaneouslyalpha and beta/gamma-contamination, but the instrument also functions as a pure beta/gamma display
l Results can be represented in freely selected units Beq/cm² or in CPS.
l LB 148 has a detachable hand garment measurement probe
l PersonnelID can be forwarded with optional card reader or
l Operation of the LB 148 is easy via the graphic display on the touch panel and the clearly laid out menu structure
l The display can be easily switched between different lead nuclides before measurement
l Each detector has its own alpha nuclide spillover coefficient for each nuclide and a correction factor for each
l
All parameter inputs are password protected
l Background radiation is continuously monitored at each detector to compensate for the measured long-term average background value
l Background check for fluctuations before each measurement starts
l Comply with international standardsRequirements of IEC 61098
Features:
l Zinc sulfide (silver) scintillation detector
l Simultaneous backside manual measurement with automatic moving hand detector to obtain measurement geometry
l Space-saving design
l High detection efficiency
l Detachable hand clothing measurement probe
l Easy-to-operate graphic display and touch monitor
l USB, Ethernet, RS-232 and RS-485 interfaces
l Service functions (plateau, calibration, system testing, ... ）
l Permanent data storage1750 measurement data
l Extensive nuclide library
l access control card reader/repeater
l Double password level
l Can store up to1750 measurement data and transfer to external computer via USB, Ethernet, RS 232 or RS 485
l A simple communication protocol allows integration into measurement networks
l Two optional external beacons indicate the status of operation and/or exceed the alarm threshold
Technical parameters:
radiation detector | large area scintillator(ZnS:Ag) |
light detection | PMT |
Measurement mode | Measure simultaneously or separatelyAlpha and beta-gamma radiation |
Measuring range | 0 - 50000 cps (dead time <10%) |
temperature range | -5°C - +40°C |
Humidity | 0% - 95% (no condensation) |
Dimensions (without alarm tower) | 85 cm x 125 cm x 82 cm (width x height x depth) |
weight | 43kg |
transponder system (RFID） | personal identification | 59496 |
transponder chip/card | forward | 59495/59503 |
card reader | personal identification | 49052 |
magnetic card | card reader | 34481 |
Alarm column | Condition and contamination of signal control equipment | 54693 |
Calibration source | 36Cl, about 1 KBQ | 29336 |
Am-241, about 1 KBQ | 25509 | |
HFK program | Collect measurement data to access database | UMAD HFK |
