Detailed introduction

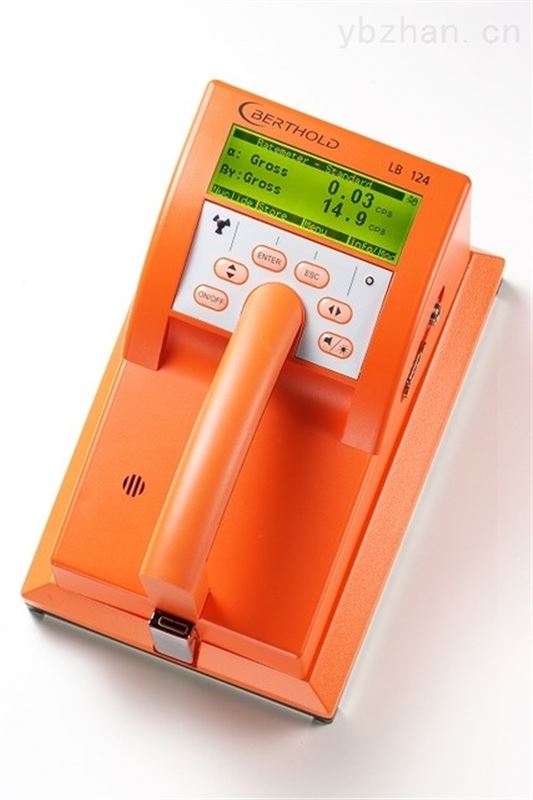

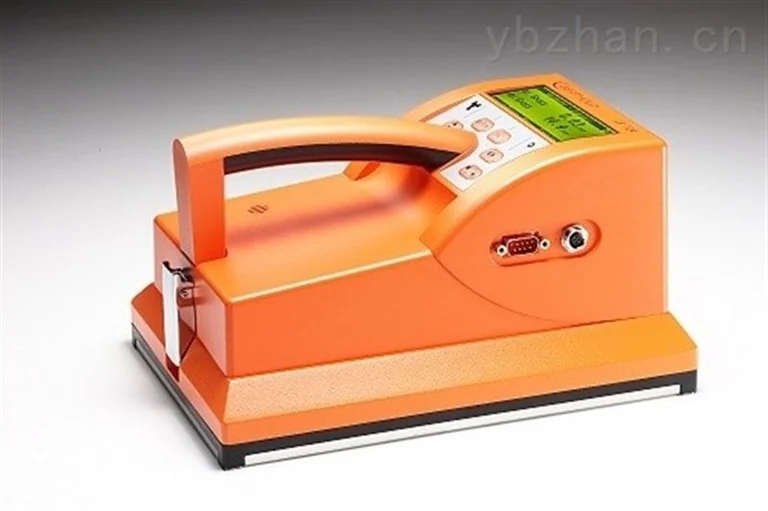

germanyBERTHOLD LB124 SCINT-D Surface Contamination Meter
Product introduction:
l Used to measure dose rate detector radioactivityAlpha and beta-gamma contaminated surface and environmental dose rates equivalent H gamma radiation dose rate
l Consists of a display unit with microprocessor electronics, a signal processing circuit and a new different zinc sulfide scintillator with photomultiplier tube and current measuring area170cm2
l Its sophisticated reflector geometry ensures a very flat response across the entire sensitive area
l by an extra Geiger - Integration of Miller tube, it is possible to measure gamma radiation dose rate simultaneously in addition to conventional contamination measurements
l Due to its attractive and ergonomic design and its low weightLB 124 SCINT-D is very easy to handle
l Measurements can be easily read even in difficult conditions Large high-resolution display on lightning background
l A few direct access function key operations are sufficientLB 124 SCINT-D
l The surface of the instrument can be easily decontaminated
Features:
l Light weight, easy to handle and sturdy instrument
l wide temperature range
l simultaneously independentZnS(Ag) α and β-γ contamination measurement detectors
l High sensitivity and uniform response
l No gas required for calculation
l Dose rate detection
l The front side of the detector instrument is positioned parallel to
l The energy response isH* (10) surrounding dose equivalent
l Halogen quenched Geiger - Miller tube
l Dynamic range:0.1 microsievert/hour to 20 millisievert/hour
l Energy range:50 keV to 1.3 MeV
l Alarm threshold dose rate measurement
l Select units: Microsievert/hour
l Dose accumulation is possible
Technical parameters:
show | monochromeLCD 192 x 64 pixels |
electroluminescent lighting | |
detector | Zinc sulfide (silver) scintillator |
Light detection | Photomultiplier tube ( PMT ） |
Measurement mode | α- and β-γ measurements, simultaneous and independent measurement modes, tachometer, scaler timer mode, gap measurement, half-life measurement, measurement mode |
Entrance window size | 118mm x 145mm |
sensitive area | 170 square centimeters |
Metal material of entrance window | 2 x 3 micron plastic metallization (0.4 mg/cm²) |
protective grid | 80% transmission |
Overall dimensions | 240mm x 140mm x 110mm (length x width x height) |
weight | 1400g (including battery) |
Alarm | Alarm sound alarm threshold is adjustable |
data storage | 1000 date and time measurements |
serial interface | RS232 |
power supply | 3 x C-size batteries LR14 alkaline 1.5 V or NiMH (HR-14) batteries 1.2 V, rechargeable via plug-in power supply, or wall mount bracket |
Working hours (no lighting) | Alkaline batteries:> 50 hours |
NiMH battery:> 25 hours | |
temperature range | -20°C to +40°C (operation) |
-40°C to +60°C (storage) | |
relative humidity | 0% to 80% (no condensation) |
external pressure | 500 to 1300 hPa (operating) |
100 to 1300 hPa (storage/transportation) | |
Protection level | IP53 (according to IEC60529) |
Contamination Monitor for DR Detector | LB 124 SCINT-D | 60026 |
Test source | 200 Bq 90Sr | 41872 |
800 Bq 241Am | 46611 | |
Aluminum alloy shell | LB 124-KB | 38164 |
power supply | Multirange | 58067 |
wall mount bracket | for LB 124 SCINT | 38789 |
Additional protection for the grid | for LB 124 SCINT | 45355 |
data cable | D-Sub cable 3 m | 26204 |
rechargeable battery | 3 x NiMH 1.2V/4.5 AH | 40650 |
floor trolley | for LB 124 SCINT | 41028 |
Sample rack, drawer | for LB 124 SCINT | 40927 |
