Detailed introduction

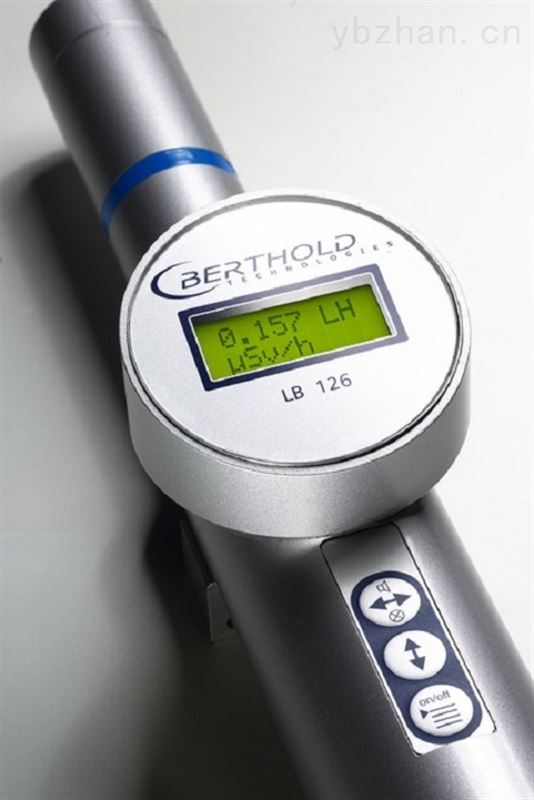

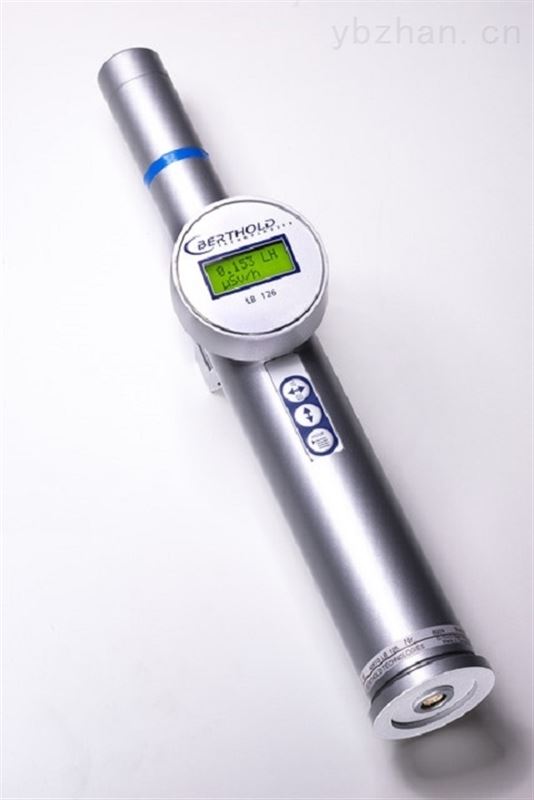

germanyBERTHOLD LB 126 Handheld Radiation Monitor
Product introduction:
l Handheld monitor measures ambient dose equivalentH*(10) photon radiation energy compensation proportional counter tube LB6006-H10
l The LB126 is a portable dose rate monitor which is used throughout the field of radiation protection
l Sealed closure of proportional counter tubes according to new standardsH*10 approved, used as detector
l Three buttons are enough to navigate menu prompts through clear arrangements and user-friendliness
l Up to1000 measurement results can be stored in data memory
l These data can be passed through aRS232 and/or RS485 interfaces are accessed and printed out
l withSerial data communication with the PC, i.e. reading and resetting the data memory, acquisition of measured values, reading parameters and dosing reset, occurs via the F2C protocol
l PassThe RS485 interface integrated in the RS485 bus system can communicate with up to 32 devices
Features:
l Compact structure, power-saving microprocessor electronics and charging circuit,4 rechargeable batteries (AA batteries)
l New quantities of measured ambient dose and ambient dose rate equivalentsH *（10）
l Energy Compensated Low Dose Counter TubeLB6006-H10 according to ICRU report 39
l Pass3 soft keys for easy operation
l Signals and alarm indications
l Freely selectable dose and dose rate alarm thresholds
l 1000 measurement data storage
l RS232 and RS485 data interface printout and communication
l RS485 network up to 32 devices
Technical parameters:
Optional units | µSv/h, µSv or mrem/h, mrem |
working temperature | -10 to +40°C |
relative humidity | 30% to 75% |
External charging voltage | +9 VDC，<0.6V |
Measuring range | 50 nSv/h~ 50 mSv/h |
energy range | 30 keV – 1.3 MeV |
angle dependence | ±45° |
operating point | 1750 V |
calibration factor | 0.214 µSv/h |
inner background | 0.07 cps |
dead time | 2.6 µs |
lengthxdiameter | 370 mm x 50 mm |
weight | 950 g |
dose rate | 0 ~ 50000 mSv/h |
dose | 0 ~ 999 mSv |
dose integration time | 99:59:59 (hh:mm:ss) |
