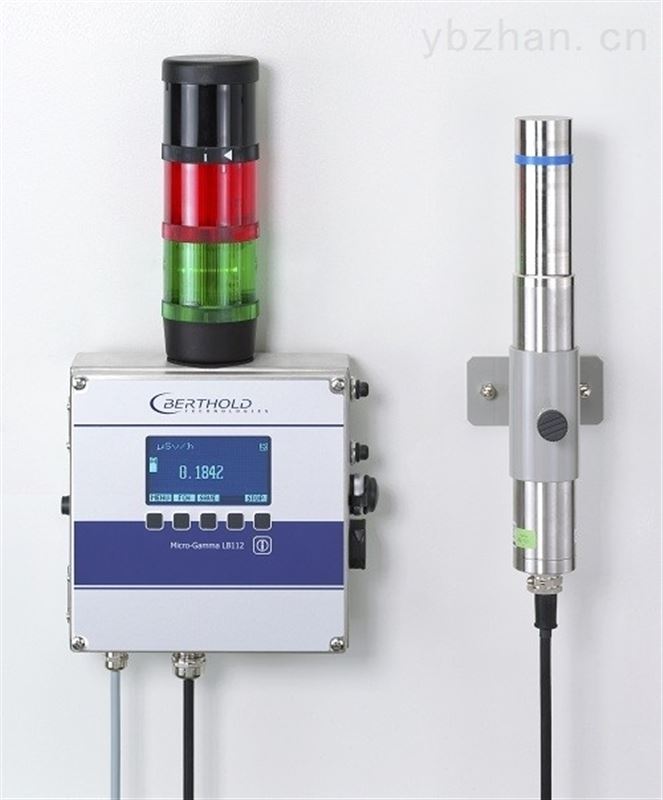

germanyBERTHOLD LB 112 fixed dose rate detector
Product introduction:
l The LB112 microgamma data logger is a fixed low dose/high dose rate measurement system with one or two independent detectors or monitors
l Operational control of the device using a simple menu and softkeys
l operationalLB112 carries a vacuum fluorescent display below with 5 soft keys, with adjustable brightness
l All parameters are password protected
l oneThe INFO key brings up a menu with important information during the measurement process
l If the dose rate unit is changed, the result is automaticallyrenormalised
l dose rate, also available as output current via two analog outputs0/4-20mA, linear or logarithmic scale
l The instrument has a wide range of AC power inputs between85 and 264 V or 9 to 36 V DC input for battery operation
l Can store up to4000 data and transferred to external computer via two serial interfaces
l oneThe RS-485 interface is already built-in, so no external power adapter is required.
l Through the serial interface,Ehernet or USB data transfer can be done by using F2C protocol
l Measuring electronics housed in a compact stainless steel housing
l The entire electronic system consists of a printed circuit board on which a small power supply unit is placed
l There's a keyboard on the front and an easy-to-read graphic vacuum fluorescent display behind it (640×128 pixels)
l Can test and alarm signals, the acoustic signal is reset by two buttons on the right side of the housing
l The device is turned on and off using an internal power switch
l External signal column, can be equipped with various alarm units (permanent lighting, flashlight or horn)
Features:
l Compact measuring device for wall mounting in stainless steelIP65 sealing
l Connect two dose rate probes or other detectors (single or dual probe operation)
l low dose/high dose rate system
l Radioactive gas monitoring
l Tachometer or scaler timer mode
l memory4000 data points
l Electrically separated inputs and outputs, e.g.RS232/RS485 interface, USB interface, Ethernet interface, 3 digital inputs, 2 analog outputs, 5 relay outputs
l Data transmission and communication in local and large-area measurement networks
l withF2C protocol network functions
l Easy-to-read graphic vacuum fluorescent display
l Alarm signal for measuring station with local alarm function (light, flashlight, horn)
l Local alarm function Freely programmable acoustic signal reset option
Measurement mode | Tachometer and scaler/timer |
show | Vacuum fluorescence (64×128 pixels) |
memory | Gundam4000 sets of data |
power supply | The wide range is85 to 264 VAC or 9 to 36 VDC, depending on power module input |
Power consumption | approx.12 W |
temperature range | -5°C to 50°C |
relative humidity | 10%~80%, non-condensing |
Protection level | IP65 |
Overall dimensions | 200×200×80mm³ |
weight | 2.6kg, stainless steel case |
l Password-protected measurement parameters and internal jumpers* data storage capabilities,RS232 supports two-way communication
Technical parameters:
