Detailed introduction
USACIRS 901 NEMA-SCA&I phantom
Introduction:
USAThe CIRS Model 901 NEMA-SCA&I phantom is designed to evaluate and standardize catheter image quality. This is the result of a collaboration between the Society for Cardiac Angiography and Intervention and our Electrical Manufacturers Association. The Phantom specifically allows for voluntary compliance with the recently published performance standard NEMA XR21.

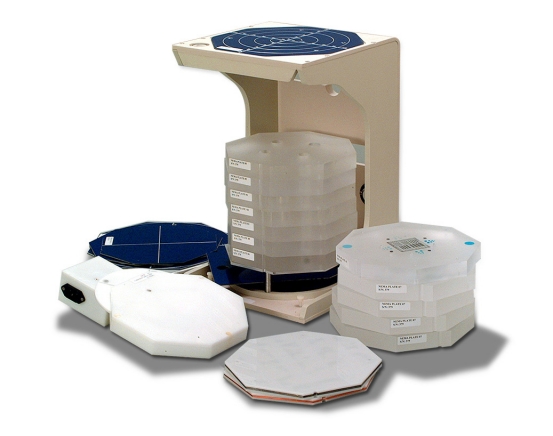

USAThe CIRS901 phantom is made of PMMA and its X-ray absorption properties are similar to soft tissue under diagnostic energy. It contains a variety of static and dynamic test targets for objective evaluation of resolution, motion blur, and radiation exposure. The cross-sectional design allows configuration over a wide range of 5 to 30 cm to simulate PA thicknesses from infants to large adult patients.
The CIRS 901 phantom is ideal for routine evaluation of entire imaging systems.
intended to be voluntarily complied withNEMA XR 21
Simulation of an infant's coronary arteries via large adult
Evaluate spatial resolution, motion unsharpness and exposure of the entire imaging system
USACIRS 901 cardiovascular fluoroscopy benchmark phantom features:
designed for voluntary complianceDesigned for NEMA XR 21
Simulating an infant's coronary arteries through a large adult
Evaluate spatial resolution, motion blur, and exposure of the entire imaging system
The CIRS Model 901 NEMA SCA&I model is designed to evaluate and standardize catheter image quality. This is the result of a collaboration between the Society for Cardiac Angiography and Intervention and the First Electrical Manufacturers Association. This model specifically allows for voluntary compliance with the recently published performance standard NEMA XR 21.
The CIRS 901 cardiovascular fluoroscopy reference phantom is manufactured from PMMA and has X-ray absorption properties similar to soft tissue for diagnostic energy. It contains a variety of static and dynamic test targets for objective evaluation of resolution, motion blur, and radiation exposure. The cross-sectional design allows configuration of various thicknesses from 5 cm to 30 cm, simulating PA thickness from infants to large adult patients.
The CIRS 901 cardiovascular fluoroscopy reference phantom is ideal for routine evaluation of the entire imaging system.
