Detailed introduction

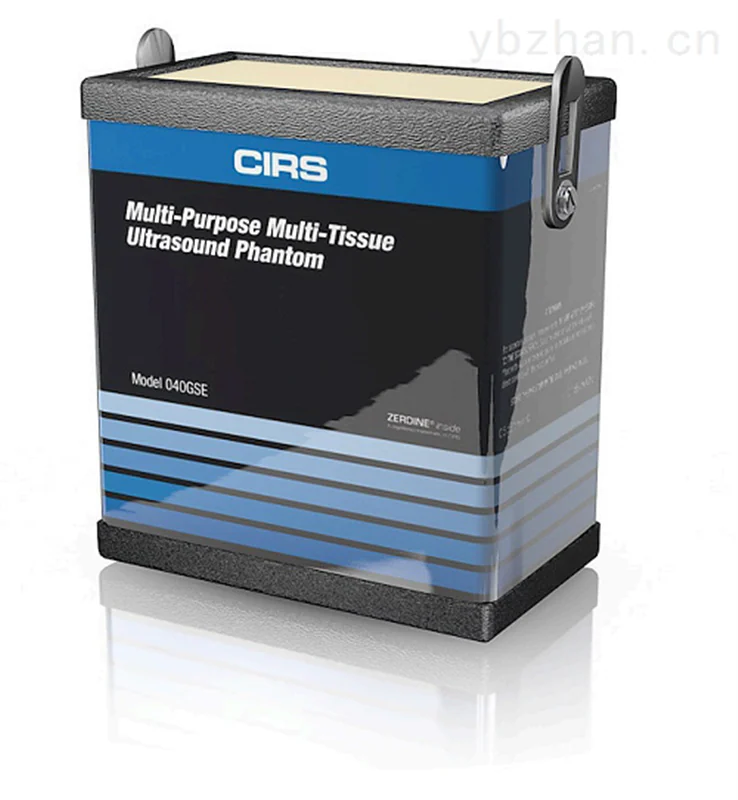

USACIRS 040GSE ultrasound phantom product
Introduction:
USACIRS ultrasound phantom 040GSE has gray scale target group, anechoic step block and elastic target group. This phantom was developed to meet the quality assurance challenges of medical ultrasound equipment. Unique double attenuated background gel allows users to evaluate sensors between MHz - 15 MHz. Allows evaluation of all sensor configurations: straight, curved, lumen. Ultrasound quality assurance phantoms come with rugged housing and carrying case, user guide and data sheet.
USACIRS 040GSE ultrasound phantom product features:
blind area
horizontal distance
vertical distance
penetration depth
Image uniformity
Axial resolution
Lateral resolution
Acoustic quality resolution
grayscale contrast
Elastic image assessment

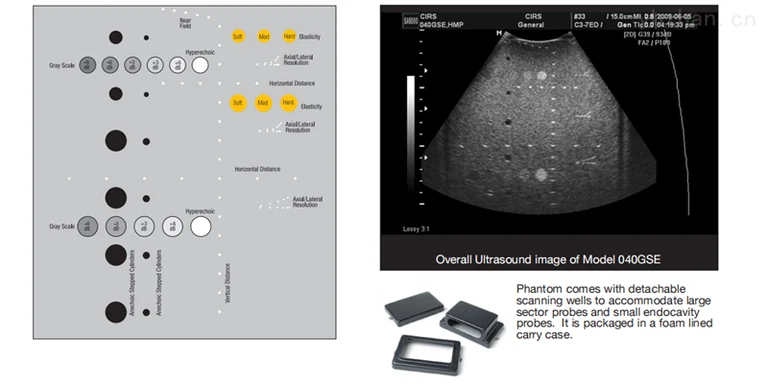

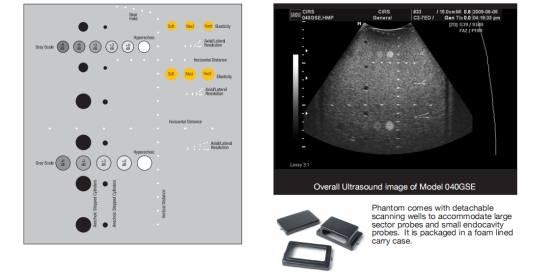

USACIRS 040GSE ultrasound phantom technical parameters:
product specifications | |
background material | Material: Zerdine ®1 Melting point: higher than100®Ç Attenuation: 0.5 dB/cm MHz ±0.05 dB/cm MHz & 0.7 dB/cm MHz ±0.05 dB/cm MHz Speed of sound: 1540 m / s±10 m / s |
Scanned | 1 cm deep |
scanning film | Saran based laminate |
wire target | Material: nylon monofilament |
near field group | Target quantity: 5 |
vertical distance group | Target quantity: 16 |
horizontal distance group | Number of groups: 2 |
Axial - Lateral resolution group | Number of groups: 2 Axial separation:5,4,3,2and1 mm Lateral separation:5, 4, 3, 2 and 1 mm |
Silencer ladder cylinder | Target quantity: 12 target |
Grayscale target | Attenuation: 0.5 dB / cm-MHz Number of groups: 2 6 targets: 3 mm depth 5 targets: 10mmØ11.5 cm depth Contrast: -6，-3，+ 3，+ 6＆> +15 dB |
elastic target | Attenuation: 0.5 dB / cm-MHz Number of groups: 2 Number of goals per group: 3 |
Model040GSE includes | · Multipurpose multi-tissue ultrasound model · · Removable scan well · · Foam lined carrying case · · User Guide · · 48 months warranty · |
