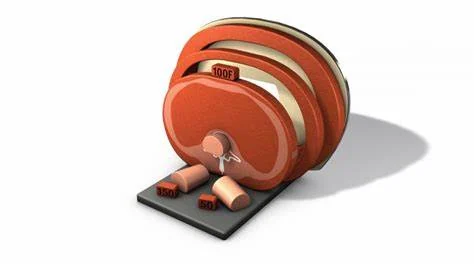

American CIRS 004 bone density phantom
Product model:
Brief description:The CIRS Model 004 CT simulator for bone mineral analysis is designed to take into account all known sources of influence on vertebral body density measurements by simulating the shape and density of the average patient by using materials that are essentially equivalent to human tissue, including age-related changes in vertebral body composition, with respect to X-ray interaction.
Manufacturer strength
Manufacturer Strength
Valid warranty
Valid Warranty
Quality assurance
Quality Assurance
Product consultation
ContactProducts
PRODUCT CATEGORYRadiological imaging quality control equipment
American RSD phantomCRDR machine detection toolCT detection toolsDental machine testing toolsBreast testing kitDSA performance testing toolRadiotherapy and Nuclear Medicine TestingX-ray machine multifunctional quality detectorConventional X-ray photography inspection phantomUltrasound diagnostic quality control testing phantomMultifunctional dose area product meterMagnetic Resonance Machine Testing Toolsbone density phantomSimulation phantomsolid waterSensitometers and Densitometersluminance meterPortable Radioisotope Identification Device (RIID)
Detective-200 rugged, ultra-high sensitivity, portable HPGe radionuclide identification systemRADEAGLE-Cx high sensitivity, high adaptability detection unit, suitable for diversified radiation detection and nuclide identification applicationsRADEAGLET-R Rugged, lightweight, handheld radionuclide identification deviceRADEAGLE, the handheld radioisotope identification instrumentDetective-100T HPGe-based handheld radioisotope identifierMicro-Detective Ultralight Portable Handheld Radioisotope IdentifierDetective X ultra-high resolution HPGe radioisotope identification deviceDetective DX1 is a new generation, ultra-high-resolution and high-purity germanium nuclide identification instrument.Micro-Detective-HX Advanced Handheld Radiation Detection and Identification RIID- Counters, timers, rate meters and multi-channel scalers (MCS)Digital current integratoramplifierCables and accessoriespreamplifierpulse generatormulti-channel analyzerSingle channel analyzerDelays, Gates and Delay Generators, Logic Blocks and Linear GatesFast timing discriminatorTime-to-amplitude converters and calibratorsHV Bias/NIM Power Supplies and Power EnclosuresPhotomultiplier tube (PMT) base
- timing systemGammaScreen-8 Total Gamma Screen Counterα/β counterStandFAST II Standing Full Body CounterOnline monitoring systemOS1700 Tritium AdopterCompton suppression counting systemPINS3-CF Chemicals and Explosives Identification SystemCustomized systemwaste analysis systemchemical identificationnuclear safeguardshealth physics systemfood monitoring system
- FRAM plutonium and uranium isotope analysisMGA++ γ-ray isotope ratio actinide analysisNuclide Navigation-Pro, interactive nuclide map, reference softwareRenaissance whole body counter softwareANGLE advanced gamma spectrum measurement efficiency calibration softwareAlphaVision alpha spectrum measurement softwareDataMaster spectrum file format converterGammaVision gamma spectrum analysis softwareGammaVision Report GeneratorGlobal Value Productivity Suite by GammaVisionISOTOPIC gamma spectroscopy waste determinationMAESTRO Multichannel Analyzer SimulationMAESTRO-Pro Advanced Spectrum SoftwareCONNECTIONS Programmer's Toolkit
Related articles
RELATED ARTICLES
Detailed introduction

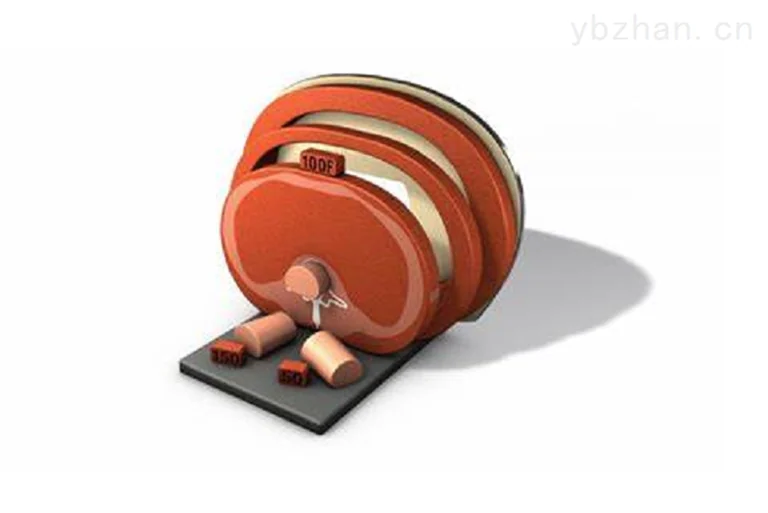

USACIRS 004 bone density phantom
Introduction:
USACIRS 004 Bone Density Phantom The CIRS Model 004 CT simulator for bone mineral analysis is designed to take into account all known sources of influence on vertebral body density measurements by simulating the shape and density of the average patient, using materials that are essentially equivalent to human tissue, including age-related changes in vertebral body composition with respect to X-ray interaction.
The design of the system allows all error sources to be reduced to acceptable limits. Careful and refined manufacturing and quality control ensure that all phantoms are identical to create a general and uniform standard that applies to all scanners. The basic principle of operation is to fully simulate the patient's anatomy and then scan the patient and phantom consecutively with the same technical factors.
The CIRS 004 phantom can be used with all CT scanners and allows continuous examination of patients regardless of scanner use. Data interpretation and analysis can be performed "offline" to eliminate unnecessary scanning time.
USACIRS 004 bone density phantom features and advantages:
immediately in anyUsed on CT scanner
Monitoring the effects of treatment on trabecular structure
Direct determination of calcium hydroxyapatite content
Accurate correlation for quantitative research
Age-related variables corrected for bone marrow fat and mineral content
Simulates human tissue size, shape andCT density
No special scanner software required
Based onPC reporting software
USACIRS 004 bone density phantom technical parameters:
Overall dimensions: 40.6cm x 38cm x 30.5cm (16" x 15" x 12")
Weight: 13 lbs (5.9 kg)
Includes materials
tissue equivalent lumbar segment
Medium and Large Attenuator Rings
Tissue Equivalent Vertebral Inserts50,100,150mg/cc calcium hydroxyapatite
Section thickness gauge(Collimator)
Acrylic support plate and base
Product manuals and user guides
CIRSCALC® software (CD-ROM for DOS or Windows)
Foam lined storage box
Warranty information
4 years warranty
