Detailed introduction

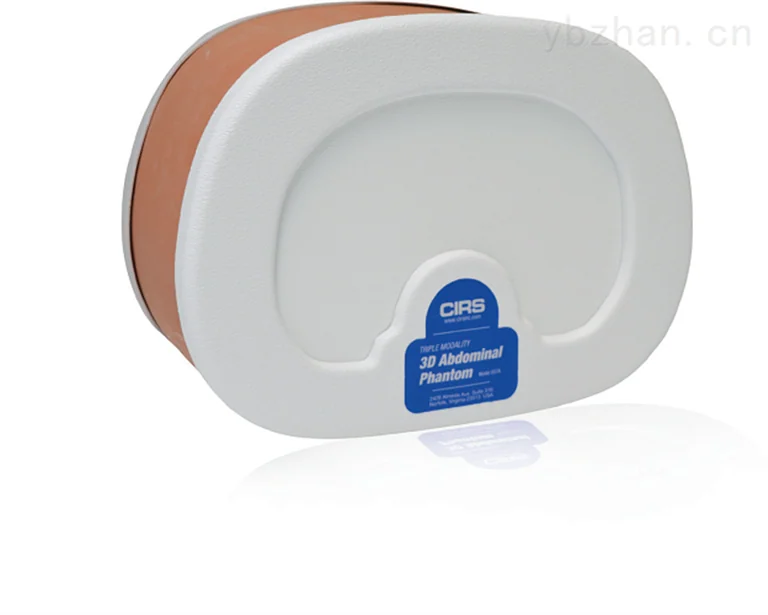

CIRS 057A abdominal phantom
-CT/Ultrasound/MRI image fusion-real-time scanning-biopsy training
The CIRS057A abdominal phantom is constructed of Zerdine®'s self-healing formula, allowing multiple biopsy insertions with minimal needle tracking and is ideal for demonstrating image-guided navigation technology.
Abdominal imaging can be used to diagnose disease and monitor treatment. Type 057A is representative of the small adult abdomen and can be imaged under CT, MR and ultrasound. This feature makes Phantom a useful tool for applications such as image fusion research; imaging protocol development; scanning technology training; and system testing, validation, and demonstration.

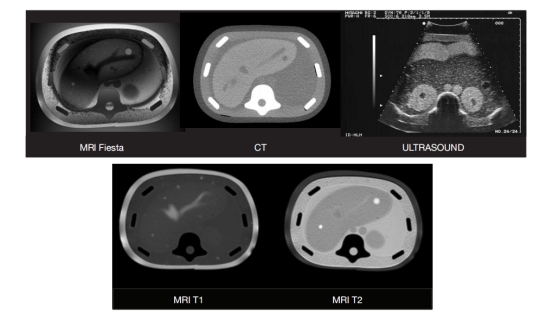

The CIRS057A abdominal phantom uses simplified anthropomorphic geometry to simulate the abdomen from approximately the thoracic spine (T9/T10) to the lumbar spine (L2/L3). These materials provide contrast between structures under CT, MR and ultrasound. The solid polymer background gel will not leak during puncture.
Internal structures include the liver, portal vein, two partial kidneys, partial lungs, abdominal aorta, vena cava, simulated spine and six ribs. There were six lesions in the liver and one lesion each in the kidneys. These structures surround the muscle layer and outer fat layer, and plastic end caps make the phantom durable enough for extended scans.
The phantom includes a foam-lined hard carrying case, and to accommodate the image fusion technology, CIRS can offer value-added options and services such as phantom-specific CMMs, reference CT or MRI data sets, accessories for customer-specific registration equipment, and the inclusion of special point markers.
CIRS057A abdominal phantom features
Demonstration of CT, ultrasound and MRI scanning techniques
Evaluate image fusion algorithms
Test new equipment
Validation of automated biopsy systems
Optimize imaging protocols
Improving the performance of hand-drawn abdominal biopsies
American CIRS057A three-dimensional abdominal phantom product specifications:
| product specifications | |
| Overall dimensions | 26cm x 12.5cm x 19cm (10.2" x 4.9" x 7.5") |
| phantom weight | 11 lbs (5kg) |
| Material | Shell: ABS |
| Outer Fat Layer: Z-Skin™ | |
| Hard tissue: epoxy resin | |
| Lungs: Polyurethane | |
| Soft tissue: Zerdine ® gel | |
| internal organs | 6 lesions in the liver (each small, medium and large |
| 2) (2) Kidney (1 for each moderate lesion) (1) Spine | |
| (1) Part of the lung | |
| (1) Portal vein | |
| (1) Vena cava | |
| (1) Aorta | |
| (6) Ribs | |
| Surrounding soft tissue (2 large lesions) | |
| 057A abdominal phantom includes | Triple Modality 3D Abdominal Phantom |
| User Guide | |
| 6 months warranty | |
| optional features | Model 035: CT DICOM data set (serial number specific, 1.5 mm slice thickness, 120 kpv) |
Note: Some persistent traces may occur if gel and air bubbles become entrapped in the gel during biopsy, so it is recommended to use a tall gauge needle that has been moistened and degassed prior to insertion to extend the life of the phantom.
